A-BL9.5-S24W
Ordered by 12 customers in the last 24 months

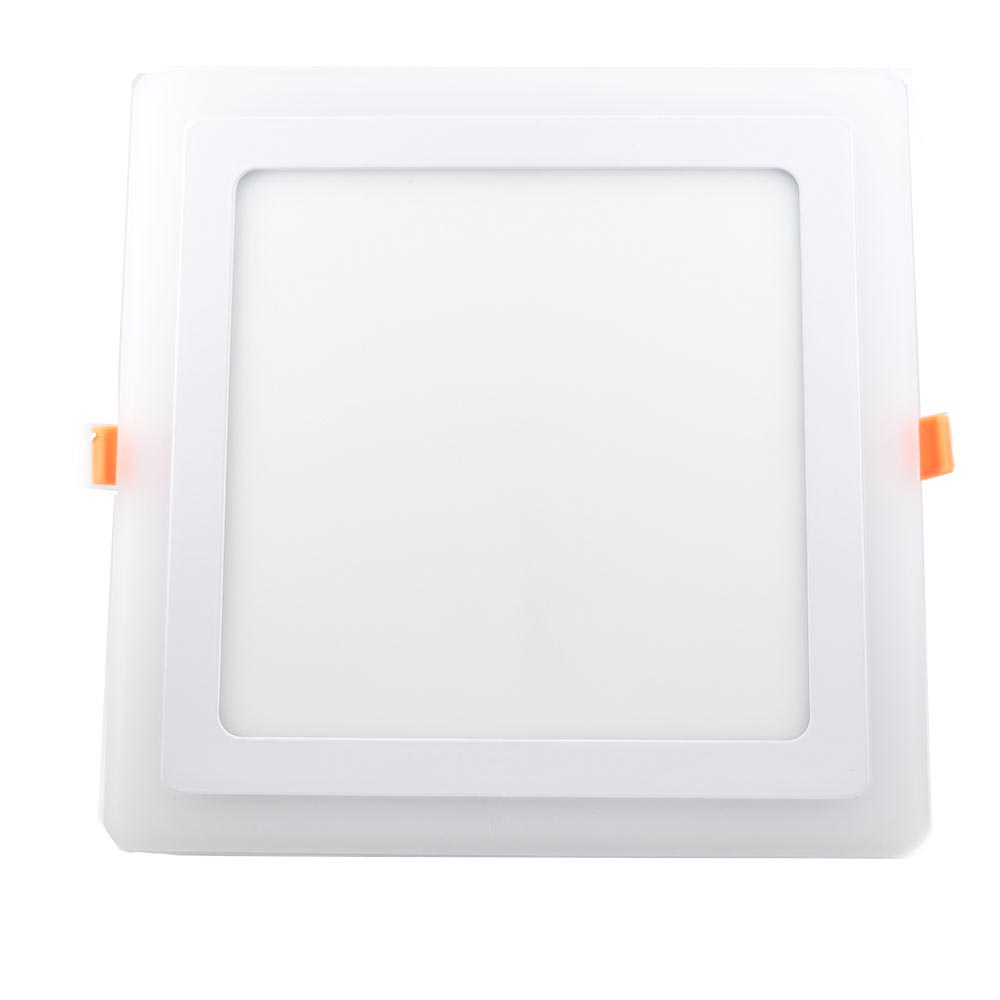

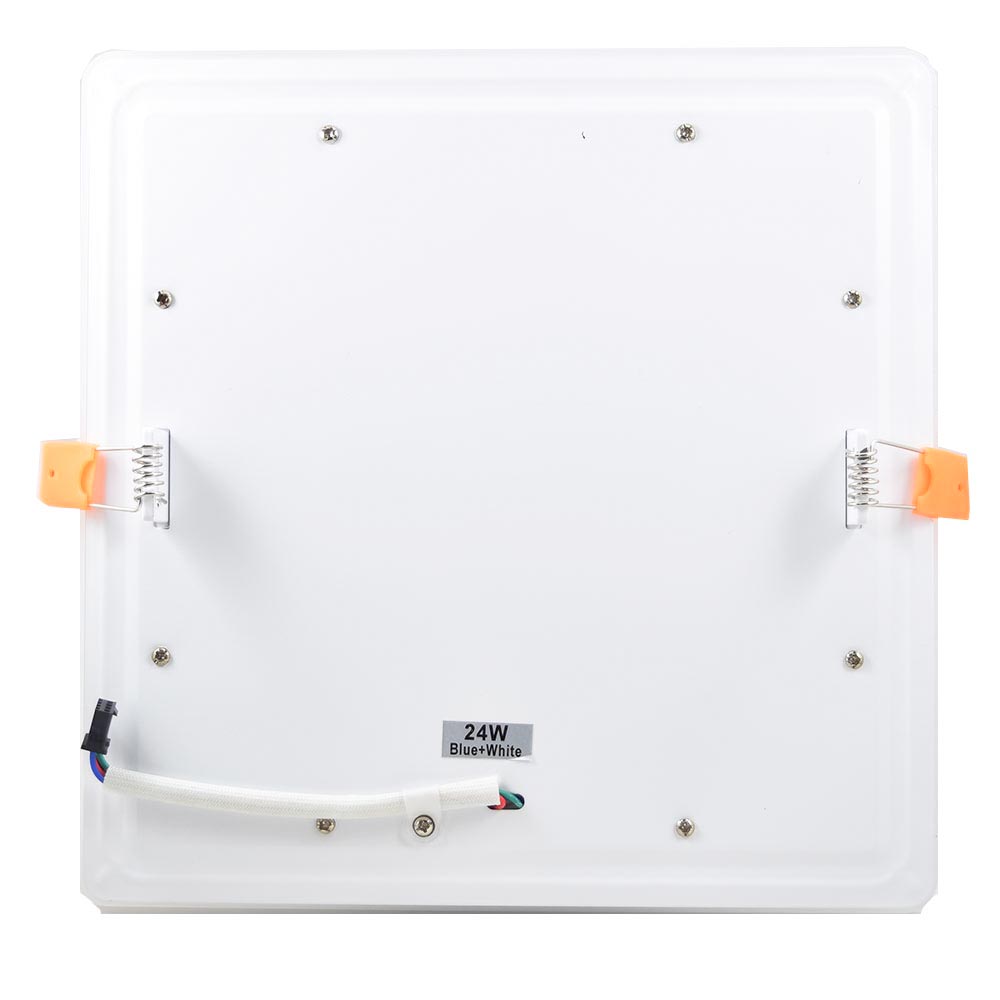

The A-BL9.5-S24W is a 9-1/2 in. square dual-color LED ceiling light designed for indoor applications where both functional illumination and accent lighting are required. It combines a 6000K white light array with an integrated blue light border, selectable via three control modes: white only, blue only, or white and blue simultaneously. The fixture draws 24W total (18W white + 6W blue) using SMD2835 chips mounted in an acrylic and aluminum housing. Input voltage range is 100–265VAC, accommodating a wide range of electrical systems. The driver is externally mounted, and the unit carries an IP20 rating, limiting installation to dry indoor environments. Light output is rated at 70–75 lm/W with a CRI greater than 75. No certifications have been confirmed in the available source documentation. Contractors and specifiers should verify compliance requirements with the supplier prior to installation. No warranty terms are stated in the source data.
| Optical | |
|---|---|
| Luminous flux | 1,800 lm |
| Efficacy | 75 lm/W |
| CCT | 6,000 K |
| CRI | 75 |
| Beam angle | 180 deg |
| Environmental | |
| IP rating | IP20 |
| Electrical | |
|---|---|
| Operating Voltage | 100-265V |
| Wattage | 24 W |
| Mechanical | |
| Product Dimensions | 10.5 x 10.25 x 1.5 |
| Weight | 0.55 lb |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetNo reviews yet. Be the first to review this product.
