A-BL7.5-S16W
Square LED Ceiling Light, 16W White + Blue Border, 7.5 In., 4500K
- 16W
Ordered by 13 customers in the last 24 months
- 12W white panel plus 4W blue border for dual-tone effect
- Delivers 1,200 lumens at 4500K neutral white
- SMD2835 LED chips rated for 50,000 hours
- Acrylic and aluminum construction rated IP20
- Wide voltage input of 120-240Vac
- 110° beam angle for broad illumination coverage
Typical applications
- Office ceiling lighting
- Retail display lighting
- Residential recessed ceiling installations
- Hospitality interior lighting
- Corridor and lobby lighting

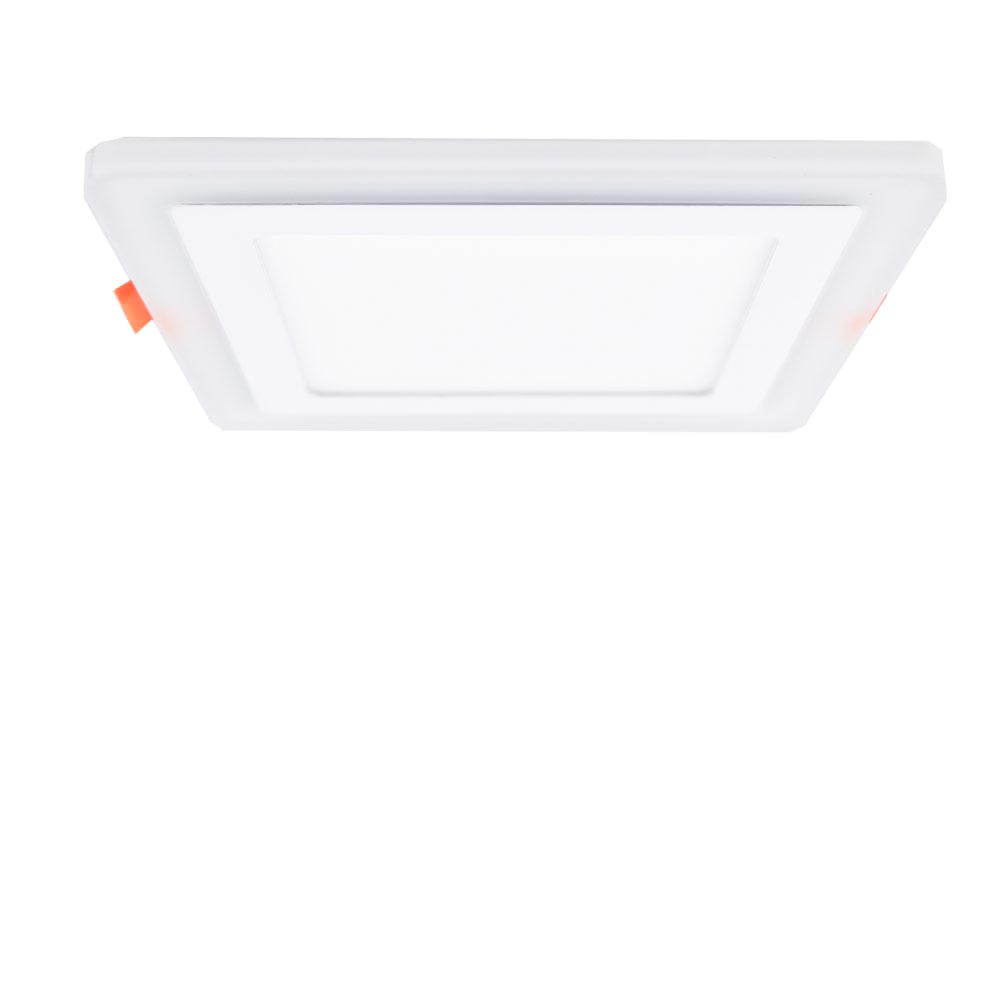

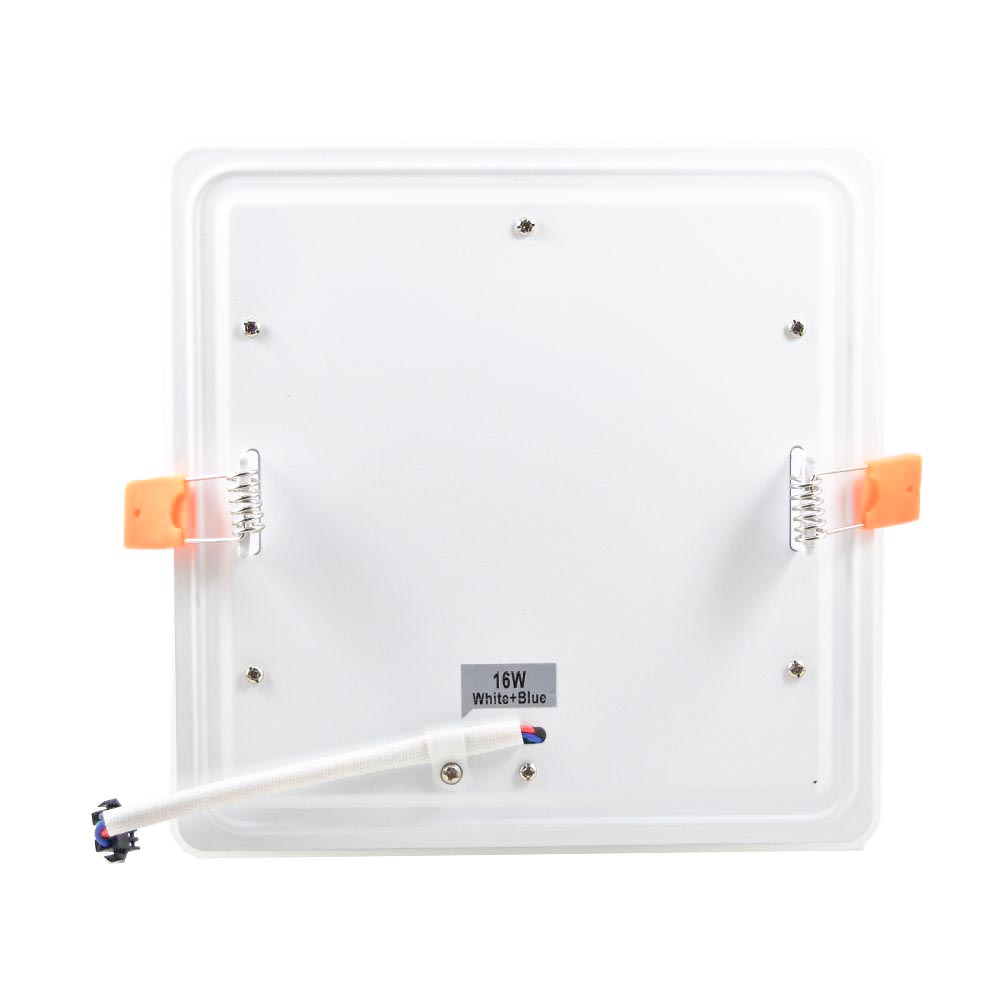

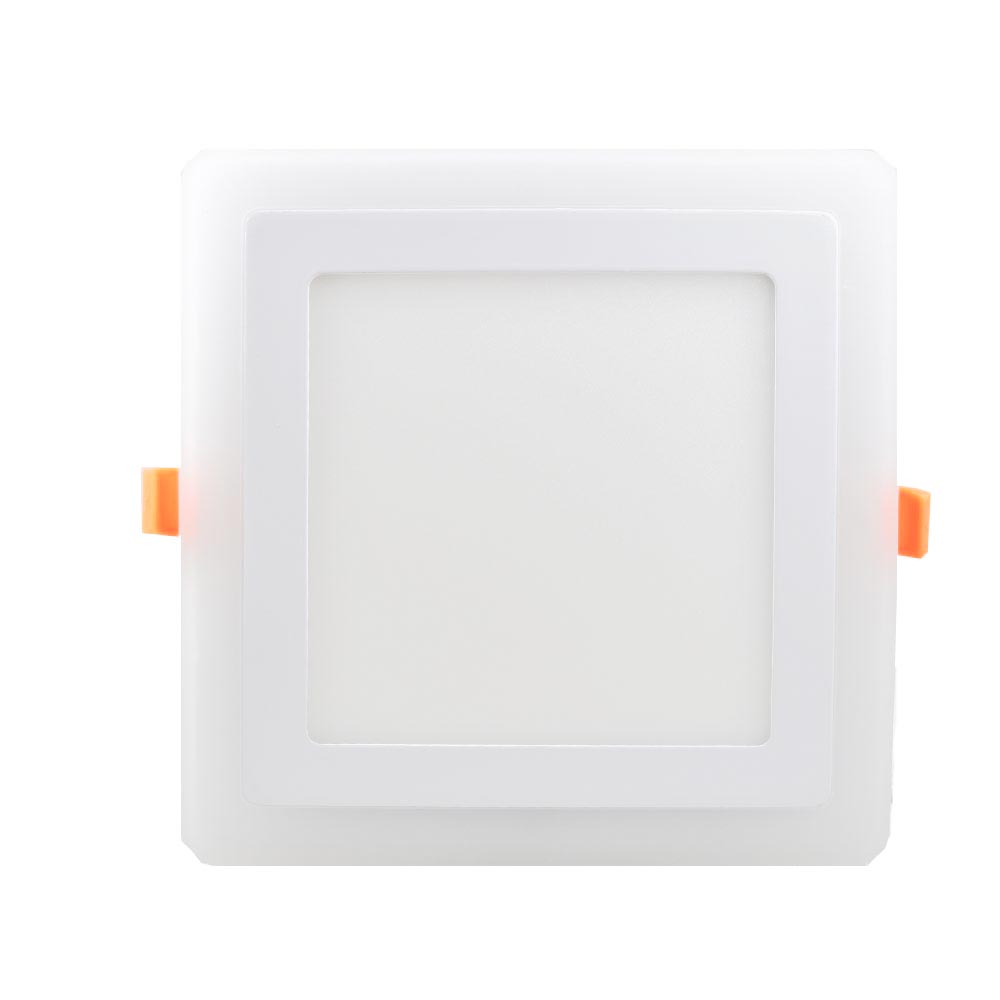

The A-BL7.5-S16W is a square recessed LED ceiling light designed for general illumination in commercial and residential interior spaces. It combines a 12W white LED panel with a 4W blue light border for a dual-tone aesthetic suitable for offices, retail environments, and similar dry indoor applications. The fixture operates on 120-240V input and delivers 1,200 lumens at 4500K with a CRI of 75 and a 110° beam angle, yielding an efficacy of 75 lm/W. The acrylic and aluminum housing is rated IP20 and carries an SMD2835 LED chip with a rated life of 50,000 hours. The fixture carries a 2-year warranty.
| Optical | |
|---|---|
| Luminous flux | 1,200 lm |
| Efficacy | 75 lm/W |
| CCT | 4,500 K |
| CRI | 75 |
| Beam angle | 110° |
| LED Chip Type | SMD2835 |
| LED Lifetime | 50,000 h |
| Environmental | |
| IP rating | IP20 |
| Ambient Operating Temperature | -30–50 °C(-22–122 °F) |
| Electrical | |
|---|---|
| Operating Voltage | 120–240 V |
| Wattage | 16 W |
| Mechanical | |
| Product Dimensions | 8.25 × 1.5 × 7.75 ft |
| Finish | White |
| Material | acrylic+aluminum |
| Weight | 0.35 lb |
| Ordering | |
| Warranty | 2 y |
Full manufacturer specifications, dimensions and wiring detail.
