5-LDW3515
Drywall LED Aluminum Profile Channel, 82mm Wide, Silver Anodized, 3m Length
- 6063-T5 aluminum extrusion with silver anodized surface finish
- 82.2mm x 18.8mm profile section with 15.5mm mounting depth
- Accepts LED flexible strips up to 32mm wide on a 42.2mm inner channel

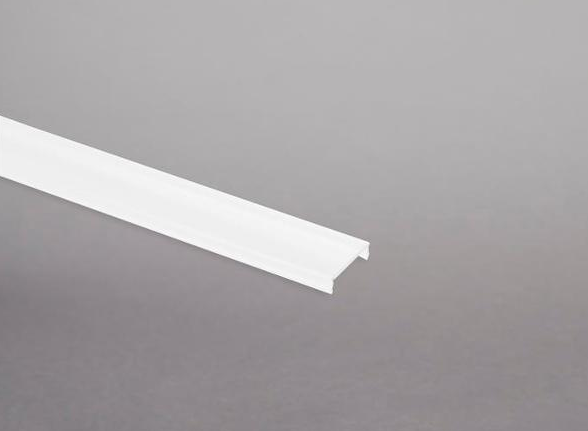

- Milky PC diffuser rated at 86% light transmission, push-in assembly
- Operating range of -50°C to 100°C for the profile and diffuser
- 3m supplied length, part of a 1m to 4m size range
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
The LDW Drywall Series is an aluminum profile channel designed for drywall-integrated, wall-mounted LED strip installations. With an 82.2mm wide by 18.8mm tall cross-section and a 42.2mm inner width, it accommodates LED flexible strips up to 32mm in width and provides both heat dissipation and physical protection to the LED assembly. Constructed from 6063-T5 aluminum with a silver anodized finish, the profile is rated for operating temperatures from -50°C to 100°C and supports LED assemblies rated to 50,000 hours. The milky PC diffuser delivers 86% light transmission with medium coefficient diffusion via a push-in assembly method, producing uniform brightness while reducing visible LED hot spots. Available lengths include 1m, 2m, 2.5m, 3m, and 4m; this listing covers the 3m length. Additional finish options include white painted and black anodized. Covered by a 1-year warranty.
