5-LW3010
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
Ordered by 1 customer in the last 24 months
Some technical details are being checked. Confirm requirements before choosing connected components.
Datasheet (PDF)Need volume pricing?

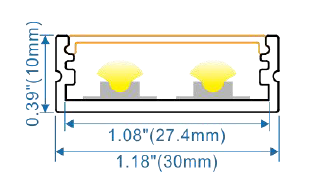

An aluminum LED profile channel measuring 30 mm wide by 10 mm tall in a 2500 mm (approximately 8.2 ft) length. Constructed from 6063-T5 aluminum with a high-standard anodized silver finish, it provides heat sinking and physical protection for LED flexible strips up to 26 mm wide. The included milky PC diffuser transmits 86% of the light with a medium diffusion coefficient, reducing visible LED points for a uniform appearance, and installs by push-in assembly. The assembly is rated for working temperatures from -50 C to 100 C, covering a broad range of commercial and industrial environments. The channel is offered in 1 m, 2 m, 2.5 m, 3 m and 4 m lengths, with silver anodized, white painted and black anodized finishes.
| Mechanical | |
|---|---|
| Product Dimensions | 2500x30x10mm |
| Length | 2.5 m(8.2 ft) |
| Finish | Silver |
| Material | Aluminum |
| Mounting | Surface mount |
| Environmental | |
|---|---|
| Ambient Operating Temperature | -50 °C(-58 °F) |
Full manufacturer specifications, dimensions and wiring detail.
