5-LDW2618
Drywall LED Aluminum Profile, 73x18mm Anodized Silver, 3m Length
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
Purchased in 34 fulfilled orders over the last 24 months
- 6063-T5 aluminum extrusion with anodized silver surface treatment
- 73mm x 18.5mm cross-section with 15.8mm inside channel width

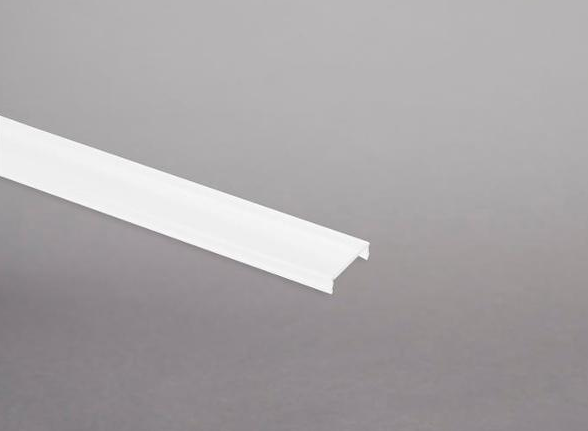

- Milky PC diffuser rated at 86% light transmission, medium diffusion
- Accepts LED flexible strips up to 15mm in width
- Push-in diffuser assembly, also offered in transparent or black
- Operating range of -50°C to 100°C with 50,000 h LED service life
At a glance
- Product Dimensions
- 73x18mm
- Length
- 3 m
- Material
- 6063-T5 aluminum with milky PC diffuser
- Warranty
- 1 y
- Strip Width
- 15 mm
- Finish
- Anodized silver
Some technical details are being checked. Confirm requirements before choosing connected components.
Datasheet (PDF)- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Recessed drywall ceiling coves
- Trimless architectural wall details
- Commercial office lobby ceilings
- Retail perimeter lighting recesses
- Hospitality corridor ceiling lines
The 5-LDW2618 is a trimless aluminum extrusion profile for recessed drywall installations where a flush, seamless lighting appearance is required. The cross-section measures 73mm x 18.5mm with an inside channel width of 15.8mm, accepting LED flexible strips up to 15mm wide, and it ships in a 3-meter length. Constructed from 6063-T5 aluminum with a high-standard anodized silver surface, the profile serves as both heat sink and physical protection for the installed strip. The included milky PC diffuser transmits 86% of light with medium coefficient diffusion and installs by push-in method. The assembly is rated for operating temperatures from -50°C to 100°C. Covered by a 1-year warranty.
| Mechanical | |
|---|---|
| Product Dimensions | 73x18mm |
| Length | 3 m(9.8 ft) |
| Strip Width | 15 mm(0.59 in) |
| Finish | Anodized silver |
| Material | 6063-T5 aluminum with milky PC diffuser |
| Mounting | Recessed trimless drywall |
| Environmental | |
|---|---|
| Ambient Operating Temperature | -50 °C(-58 °F) |
| Ordering | |
| Warranty | 1 y |
