P-100-24-D
Indoor LED Power Supply, 100W, 24VDC Output, Triac and 0-10V Dimmable
Out of stock right now. Ask us for the next delivery date.
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
- 24V
- 100W
Purchased in 1 fulfilled orders over the last 24 months
- Delivers 100W output at 24VDC with 4.17A current draw
- Accepts 90-130VAC input for standard indoor power sources
- Supports Triac and 0-10V dimming, compatible with Lutron dimmers
- IP20 rated for indoor installation environments
- Aluminum alloy housing with metallic silver finish
- Backed by a 3-year manufacturer warranty
At a glance
- IP rating
- IP20
- Product Dimensions
- 16*4.8*2.9cm
- Maximum Current
- 4.17 A
- Dimmable
- Yes
- Dimmer Type
- Triac + 0-10V
- Power Supply Input
- 90 - 130VAC
- CE
- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Indoor LED strip lighting installations
- Retail display and signage lighting
- Architectural cove and cabinet lighting
- Commercial ceiling and under-cabinet fixtures

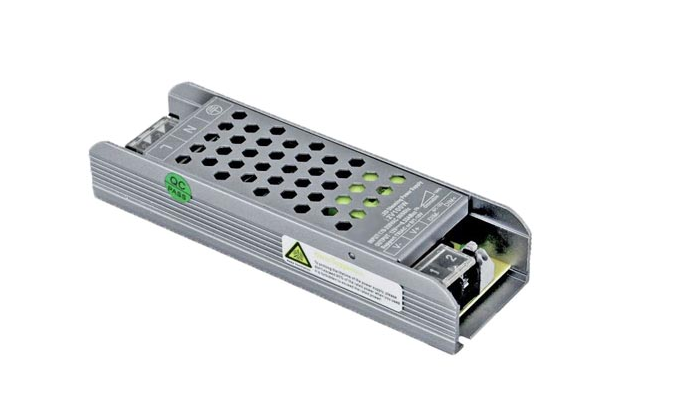

The Lumipro 24V 100W LED Dimmable Power Supply is an indoor driver for low-voltage LED lighting circuits requiring 24VDC output. It accepts a 90-130VAC input and is suited to installations where compact, space-saving power conversion is needed. Rated for 100W output at 4.17A, it supports Triac and 0-10V dimming and is compatible with Lutron and other leading dimmer brands. It carries an IP20 rating for indoor use and an ambient operating range of -30 to 50°C, housed in an aluminum alloy enclosure with a metallic silver finish. The unit is CE certified and backed by a 3-year warranty.
| Electrical | |
|---|---|
| Operating Voltage | 24 V |
| Wattage | 100 W |
| Maximum Current | 4.17 A |
| Dimmable | Yes |
| Dimmer Type | Triac + 0-10V |
| Power Supply Input | 90 - 130VAC |
| Power Supply Output | 24VDC |
| Compliance | |
| Certifications | CE |
| Mechanical | |
|---|---|
| Product Dimensions | 16*4.8*2.9cm |
| Finish | Metallic Silver |
| Material | Aluminum Alloy |
| Weight | 1 lb |
| Environmental | |
| IP rating | IP20 |
| Ambient Operating Temperature | -30–50 °C(-22–122 °F) |
| Ordering | |
| Warranty | 3 y |
Full manufacturer specifications, dimensions and wiring detail.
