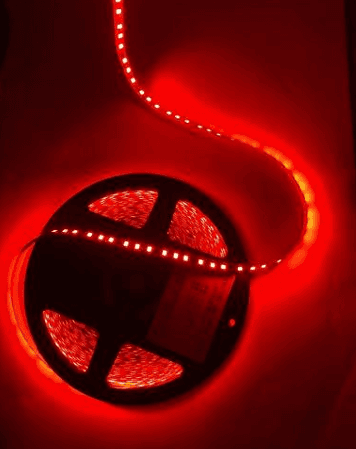

M-NR6-R-LED-10M
Red Bendable LED Neon Strip, SMD2835, 120 LEDs/m, 8W/m, IP20, 10m Roll
- 12V
- 8W
Ordered by 18 customers in the last 24 months
- SMD2835 LED chips at a density of 120 LEDs per meter
- Draws 8W per meter at 12VDC input voltage
- Delivers 400 lumens per meter with CRI 80 and 120° beam angle
- IP20 rated for dry, indoor installation environments
- Cuttable every 2.5cm for custom-length runs
- Silicone construction rated for -40°C to 60°C ambient operation
At a glance
- CRI
- 80
- Luminous Flux per Foot
- 121.92 lm/ft
- Efficacy
- 400 lm/W
- LED Density
- 120 LEDs/m
- Beam Angle
- 120°
- Luminous Flux
- 400 lm
- CE
- RoHS Compliant
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Cove lighting
- Architectural accent lighting
- Signage illumination
- Hospitality interior lighting
- Under-cabinet lighting
The M-NR6-R-LED-10M is a bendable red LED strip light supplied in a 10-meter roll, designed for indoor accent, cove, and architectural lighting applications where a narrow 6mm PCB profile is required. The strip operates at 12VDC and draws 8W per meter, with an output of 400 lumens per meter using SMD2835 chips at a density of 120 LEDs per meter. CRI is rated at 80 with a 120° beam angle and a rated LED lifetime of 50,000 hours. The IP20 rating limits use to dry, indoor environments. The strip can be cut at 2.5cm intervals for custom lengths, and the silicone construction supports the flexible, bendable form factor. This product carries CE and RoHS compliance certification and is backed by a 1-year warranty.
| Optical | |
|---|---|
| Luminous flux | 400 lm |
| Luminous Flux per Foot | 121.92 lm/ft |
| Efficacy | 400 lm/W |
| CRI | 80 |
| Beam angle | 120° |
| LED Chip Type | SMD2835 |
| LED Density | 120 LEDs/m |
| LED Lifetime | 50,000 h |
| Color | Red |
| Environmental | |
| IP rating | IP20 |
| Ambient Operating Temperature | -40–60 °C(-40–140 °F) |
| Ordering | |
| Warranty | 1 y |
| Electrical | |
|---|---|
| Operating Voltage | 12 V |
| Wattage | 8 W |
| Wattage per Foot | 2.44 W/ft |
| Current Draw per Foot | 0.2 A/ft |
| Max Run (Class 2) | 41 ft(12.5 m) |
| Mechanical | |
| Length | 10 m(32.8 ft) |
| Minimum Cut Length | inch |
| Finish | Red |
| Material | Silicone |
| Compliance | |
| Certifications | CE, RoHS |
Calculated from other published specifications.
Maximum run calculated against a 100 W Class 2 limit. Verify against local code and the driver rating.
Full manufacturer specifications, dimensions and wiring detail.
