M-NR6-R-SILC-M

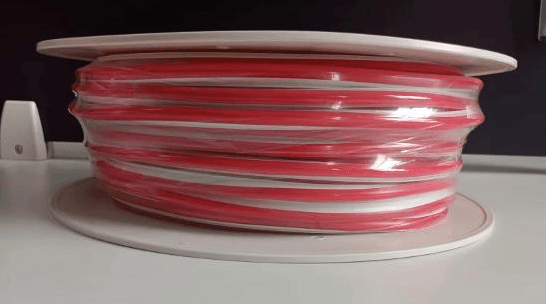

Red Silicone LED Neon Flex, 12V 8W/m, 120 LEDs/m SMD2835, IP20, 10M Kit
- 12V
- 8W
Ordered by 16 customers in the last 24 months
- Silicone construction for flexible, durable installation
- 120 SMD2835 LEDs per meter for continuous illumination
- Draws 8W per meter at 12V DC operating voltage
- CRI of 80 with a 120° beam angle
- Rated for -40°C to 60°C ambient operating temperature
- CE and RoHS certified with a 1-year warranty
At a glance
- CRI
- 80
- Efficacy
- 400 lm/W
- LED Density
- 120 LEDs/m
- Beam Angle
- 120°
- LED Chip Type
- SMD2835
- LED Lifetime
- 50,000 h
- CE
- RoHS Compliant
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Indoor accent lighting
- Cove and architectural lighting
- Retail display lighting
- Signage backlighting
- Residential decorative lighting
The M-NR6-R-SILC-M is a red silicone LED neon flex kit supplied in a 10-meter length, suitable for indoor decorative and accent lighting applications in commercial and residential installations. The silicone jacket provides flexibility and durability for a range of mounting conditions. The strip operates on 12V DC and draws 8W per meter, with a density of 120 SMD2835 LEDs per meter, a CRI of 80, and a 120° beam angle. Efficacy is rated at 400 lm/W with an LED lifetime of 50,000 hours. The IP20 rating is appropriate for dry indoor environments, and the strip is rated for ambient temperatures from -40°C to 60°C. This product carries CE and RoHS certification and is backed by a 1-year warranty.
| Optical | |
|---|---|
| Efficacy | 400 lm/W |
| CRI | 80 |
| Beam angle | 120° |
| LED Chip Type | SMD2835 |
| LED Density | 120 LEDs/m |
| LED Lifetime | 50,000 h |
| Environmental | |
| IP rating | IP20 |
| Ambient Operating Temperature | -40–60 °C(-40–140 °F) |
| Compliance | |
| Certifications | CE, RoHS |
| Electrical | |
|---|---|
| Operating Voltage | 12 V |
| Wattage | 8 W |
| Wattage per Foot | 2.44 W/ft |
| Current Draw per Foot | 0.2 A/ft |
| Max Run (Class 2) | 41 ft(12.5 m) |
| Mechanical | |
| Length | 10 m(32.8 ft) |
| Minimum Cut Length | inch |
| Material | Silicone |
| Ordering | |
| Warranty | 1 y |
Calculated from other published specifications.
Maximum run calculated against a 100 W Class 2 limit. Verify against local code and the driver rating.
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetFrequently bought together
- $6.00
- $48.00
- $91.00
- $48.00
- $6.00
Total for 5 items
$199.00
Based on real order history
Related products
Similar alternatives
8cm Flexible LED Neon Strip, Red, 6W/m, 120V AC, IP67 Silicone, 50m Roll

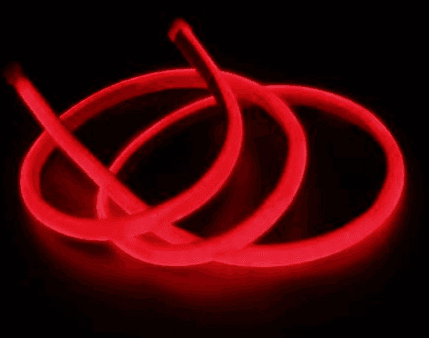

6mm LED Neon Rope Light, 12VDC Red, 8W/m IP67 Silicone, 30m Roll
