M-56N-240-3K-24V
240-LED/m SMD5630 Strip Light, 38.4W/m, 3000K, 24V DC, IP20, CRI 90
Select an option
- 24V
- 38.4W
Ordered by 24 customers in the last 24 months
- Dual-row SMD5630 emitters at 240 LEDs/m for high-density output
- 38.4W per meter at 24V DC with 3,460 lm/m rated output
- CRI 90 with 3000K warm white color temperature
- 3oz thick copper PCB on a 15mm-wide flexible circuit
- Cuttable and joinable every 50mm on 5-meter rolls
- UL certified and RoHS compliant with a 3-year warranty
At a glance
- Color Temperature
- 3,000 K
- CRI
- 90
- Efficacy
- 90 lm/W
- LED Density
- 240 LEDs/m
- Beam Angle
- 120°
- Dimmable
- Yes
- RoHS Compliant
- UL Listed
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Cove and ceiling coffer lighting
- Under-cabinet task lighting
- Retail display and casework illumination
- Architectural accent coves in dry interiors
- Hospitality corridor and reception detailing

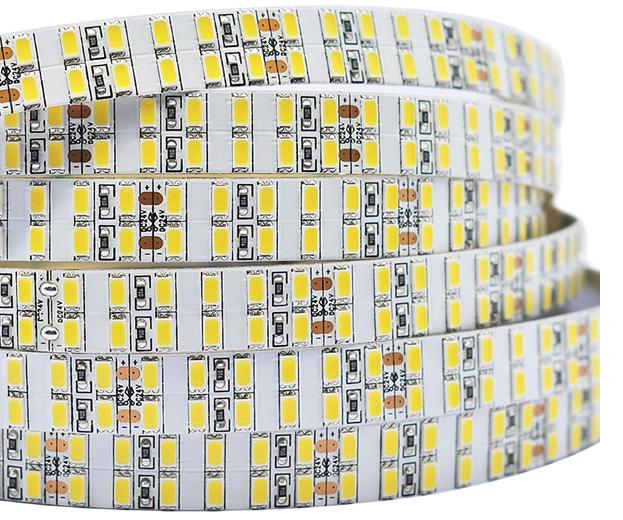

A dual-row SMD5630 flexible LED strip light operating at 24V DC with a 3000K warm white color temperature. Designed for commercial and residential installations, it is suited for cove lighting, under-cabinet task lighting, and architectural accent applications where high output and accurate color rendering are required. The strip draws 38.4W per meter and produces a rated 3,460 lm/m at 90 lm/W efficacy. Each SMD5630 emitter is rated at 60 lm, arranged at 240 LEDs/m on a 15mm-wide, 3oz copper PCB for improved thermal performance. Beam angle is 120°. The strip is cuttable every 50mm, supplied in 5-meter rolls, and rated IP20 for dry indoor environments. Operating temperature range is -25°C to +45°C, and control is by 0-10V dimming. This product carries UL certification and is RoHS compliant, backed by a 3-year warranty.
| Optical | |
|---|---|
| Luminous flux | 60 lm |
| Efficacy | 90 lm/W |
| CCT | 3,000 K |
| Selectable CCT | Single Color |
| CRI | 90 |
| Beam angle | 120° |
| LED Chip Type | SMD5630 |
| LED Density | 240 LEDs/m |
| LED Lifetime | 26,280 h |
| Color | White |
| Environmental | |
| IP rating | IP20 |
| Environmental Rating | Non-Waterproof |
| Ambient Operating Temperature | -25 °C(-13 °F) |
| Electrical | |
|---|---|
| Operating Voltage | 24 V |
| Wattage | 38.4 W |
| Dimmable | Yes |
| Dimmer Type | 0 - 10V |
| Mechanical | |
| Product Dimensions | 5000*15mm |
| Length | 5 m(16.4 ft) |
| Strip Width | 15 mm(0.59 in) |
| Minimum Cut Length | 1.96 mm(0.08 in) |
| Finish | White |
| Compliance | |
| Certifications | UL |
| Ordering | |
| Warranty | 3 y |
Full manufacturer specifications, dimensions and wiring detail.
