5-LW2310
23x10mm Surface Mount LED Aluminum Channel
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
Purchased in 374 fulfilled orders over the last 24 months
- Extruded 6063-T5 aluminum body with anodized surface treatment
- 23x10mm cross section with 20.5mm inner channel width
- Accepts flexible LED strips up to 18mm in width

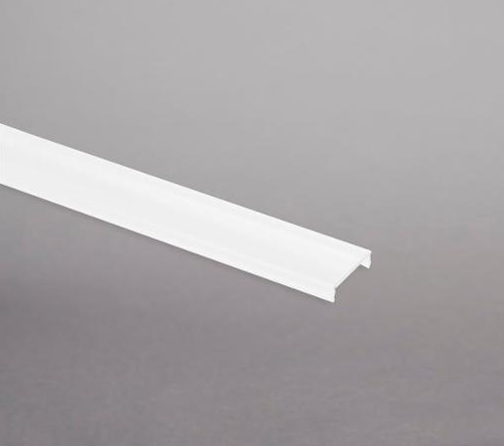

- Push-in milky PC diffuser rated at 86% light transmission
- Rated for operating temperatures of -50 C to 100 C
- Backed by a 1-year warranty
At a glance
- Product Dimensions
- 23x10mm
- Length
- 2.5 m
- Material
- 6063-T5 aluminum
- Warranty
- 1 y
- Strip Width
- 18 mm
- Finish
- Silver Anodized (White Painted and Black Anodized available)
Some technical details are being checked. Confirm requirements before choosing connected components.
Datasheet (PDF)- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Retail display and shelving illumination
- Architectural cove and ceiling detailing
- Office and corridor linear lighting
- Cabinetry and millwork accent lighting
- Signage and display case interiors
Surface-mount aluminum LED channel profile measuring 23x10mm, used to house and protect flexible LED strip installations in commercial and architectural interiors. Constructed from 6063-T5 aluminum with a high-standard anodized surface, it provides heat sinking and physical protection for the strip. Standard finish is Silver Anodized, with White Painted and Black Anodized also offered; the cataloged length is 8.2 ft (2.5 m), and lengths of 1 m, 2 m, 3 m and 4 m are available. The profile ships with a push-in milky PC diffuser rated at 86% light transmission with medium coefficient diffusion for uniform brightness across the run. Transparent and black diffusers are also offered. Inner channel width is 20.5mm, accepting flexible strips up to 18mm wide, and the assembly is rated for -50 C to 100 C service with two mounting methods. Covered by a 1-year warranty.
| Mechanical | |
|---|---|
| Product Dimensions | 23x10mm |
| Length | 2.5 m(8.2 ft) |
| Strip Width | 18 mm(0.71 in) |
| Finish | Silver Anodized (White Painted and Black Anodized available) |
| Material | 6063-T5 aluminum |
| Mounting | Surface mount |
| Environmental | |
|---|---|
| Ambient Operating Temperature | -50 °C(-58 °F) |
| Ordering | |
| Warranty | 1 y |
