M-56N-140-3K-24V

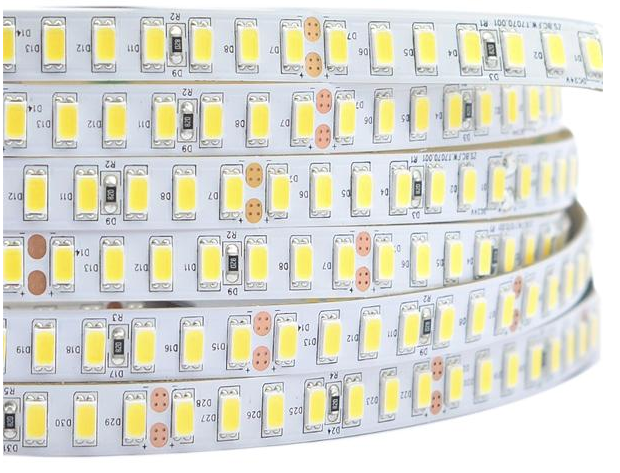

SMD5630 LED Strip Light, 140 LEDs/m, 28.8W/m, 3000K, 24V DC, IP20
Select an option
Each unit contains 5 m, according to this product’s current specifications. Quantity selects the number of units.
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
- 24V
- 3,000K
- 10mm
Ordered by 41 customers in the last 24 months
- SMD5630 chip on a single row at 140 LEDs/m density
- 28.8W per meter output with 90 lm/W efficacy
- 3000K warm white with CRI of 90 or greater
- 3 oz copper PCB, 5000 x 10 mm, cuttable every 50 mm
- IP20 non-waterproof rating for dry interior locations
- UL listed and RoHS compliant, 3-year warranty
At a glance
- CRI
- 90
- IP rating
- IP20
- Efficacy
- 90 lm/W
- LED Density
- 140 LEDs/m
- Length
- 5 m
- Product Dimensions
- 5000*10mm
Some technical details are being checked. Confirm requirements before choosing connected components.
Datasheet (PDF)- RoHS Compliant
- UL Listed
- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Cove and soffit lighting
- Retail display case illumination
- Under-cabinet task lighting
- Architectural accent coves
- Millwork and shelving detail lighting
The Single Row Super Bright Series is a single-row SMD5630 LED strip light with 140 LEDs/m, supplied on 5 m (16.4 ft) rolls for commercial and architectural installations requiring high-density warm-white illumination. Operating on 24V DC, it suits cove lighting, display case illumination, and general accent or task lighting. The strip draws 28.8W per meter and produces 2,600 lm/m at 90 lm/W, rated 60 lm per LED at 3000K with CRI of 90 or greater and a 120 degree beam angle. Construction uses a 3 oz copper PCB on a 5000 x 10 mm profile, cuttable every 50 mm, rated IP20 for dry interior use with an operating range of -25 C to +45 C. Control is by 0-10V dimming. The strip is UL listed and RoHS compliant, and carries a 3-year warranty.
| Optical | |
|---|---|
| Efficacy | 90 lm/W |
| CCT | 3,000 K |
| Selectable CCT | Single Color |
| CRI | 90 |
| Beam angle | 120° |
| LED Chip Type | SMD5630 |
| LED Density | 140 LEDs/m |
| LED Lifetime | 26,280 h |
| Color | White |
| Compliance | |
| Certifications | UL |
| Ordering | |
| Warranty | 3 y |
| Electrical | |
|---|---|
| Operating Voltage | 24 V |
| Dimmable | Yes |
| Dimmer Type | 0 - 10V |
| Mechanical | |
| Product Dimensions | 5000*10mm |
| Length | 5 m(16.4 ft) |
| Strip Width | 10 mm(0.39 in) |
| Finish | White |
| Environmental | |
| IP rating | IP20 |
| Environmental Rating | Non-Waterproof |
| Ambient Operating Temperature | -25 °C(-13 °F) |
Full manufacturer specifications, dimensions and wiring detail.
