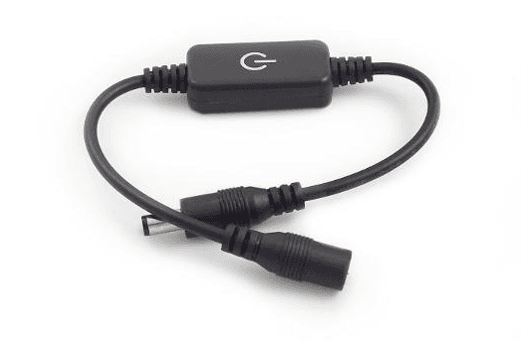

C-1-72-1SW
1-Channel Mini Touch Dimmer Switch, 12V/72W or 24V/144W, 4A Max, Indoor
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
- 12V
- 48W
- IP68
Purchased in 3 fulfilled orders over the last 24 months
- Single-channel touch dimming for 12V or 24V DC LED loads
- Maximum load of 72W at 12V and 144W at 24V
- Rated for 4A maximum output current
- Aluminum and plastic housing in a silver finish
- Operating range of -20 to 40 °C with 50,000-hour rated life
- CE and RoHS compliant, backed by a 1-year warranty
At a glance
- Maximum Current
- 4 A
- Device Type
- Single-channel low-voltage touch dimming switch
- Finish
- Silver
- Material
- Aluminum + Plastic
- Environmental Rating
- Waterproof
- Ambient Operating Temperature
- -20–40 °C
Some technical details are being checked. Confirm requirements before choosing connected components.
Datasheet (PDF)- CE
- RoHS Compliant
- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Retail display and cabinet lighting
- Hospitality guest room lighting
- Residential cove and under-counter lighting
- Office accent lighting circuits
- Architectural millwork installations
The C-1-72-1SW is a single-channel mini touch dimmer switch for controlling low-voltage LED lighting in residential and commercial installations. The compact form factor and capacitive touch interface allow brightness adjustment without mechanical controls. The switch operates at 12V with a maximum load of 72W, or at 24V with a maximum load of 144W, and is rated for a maximum current of 4A. The housing combines aluminum and plastic construction in a silver finish for service across a -20 to 40 °C ambient range, with a rated operating life of 50,000 hours. The controller is CE and RoHS compliant and carries a 1-year warranty.
| Electrical | |
|---|---|
| Operating Voltage | 24 V |
| Wattage | 48 W |
| Maximum Current | 4 A |
| Power Supply Output | 12VDC |
| Device Type | Single-channel low-voltage touch dimming switch |
| Compliance | |
| Certifications | CE ROHS |
| Mechanical | |
|---|---|
| Finish | Silver |
| Material | Aluminum + Plastic |
| Environmental | |
| IP rating | IP68 |
| Environmental Rating | Waterproof |
| Ambient Operating Temperature | -20–40 °C(-4–104 °F) |
| Ordering | |
| Warranty | 1 y |
Full manufacturer specifications, dimensions and wiring detail.
