B-F1-CF02-IPE
WPC Composite Fence Panel, 69.29" x 3.54" x 0.98", Ipe Color, 10-Year Warranty
- Co-extruded WPC core of recycled plastic and wood fiber
- Polymer cap layer rated waterproof with UV protection
- 3D wood grain texture in Ipe color, matched across the panel range
- 3.54" (90 mm) face width for mid-trellis and full-trellis layouts
- Panel weight of 5.82 lb for single-installer handling
- 25-year rated material life with a 10-year warranty
At a glance
- Product Dimensions
- 10x80mm
Typical applications
- Residential privacy fencing
- Commercial property perimeter screening
- Courtyard and terrace trellis screens
- Poolside enclosures
- Multifamily amenity area partitions

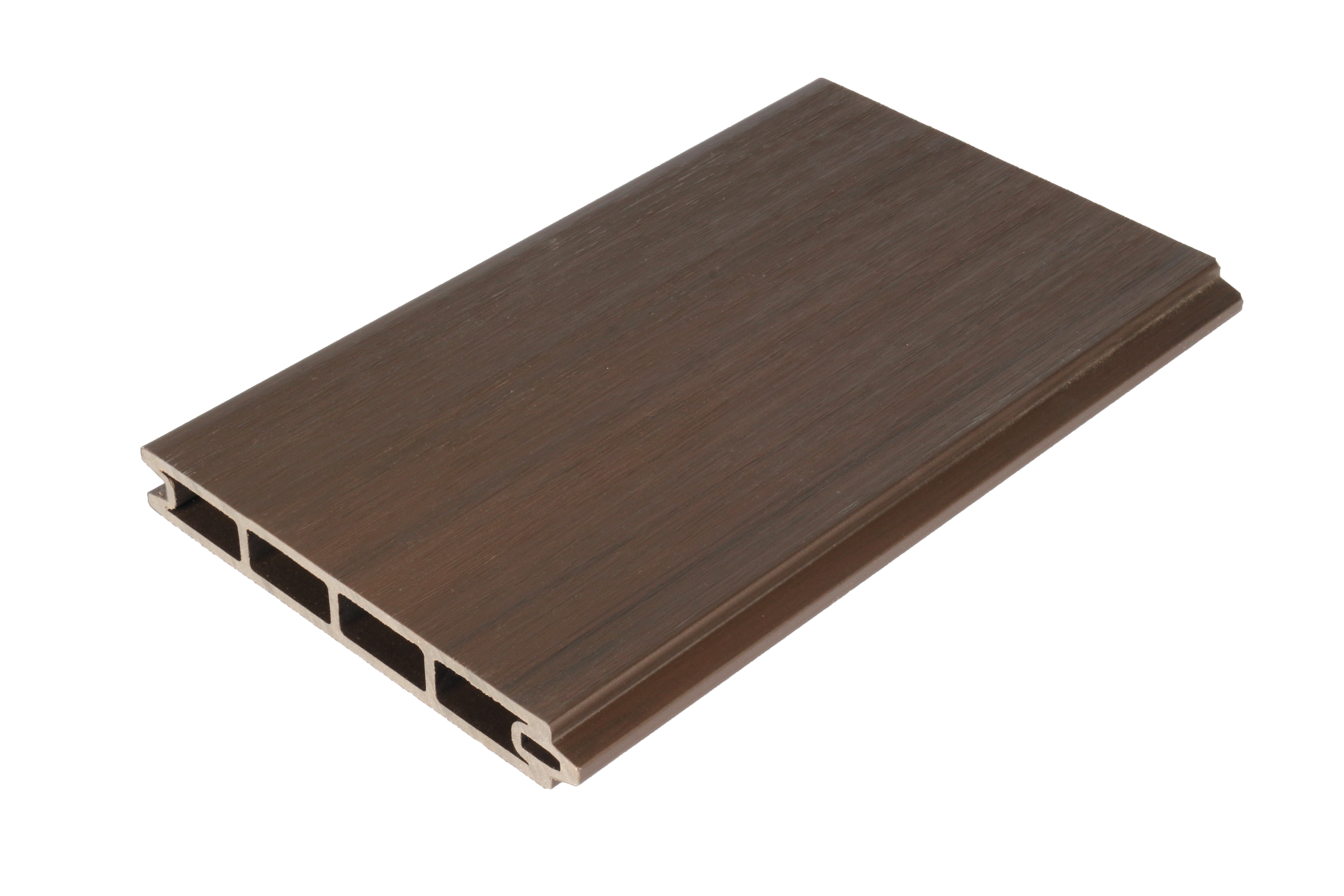

The S-CF02 is a co-extruded WPC (Wood Composite Polymer) fence panel in Ipe color, measuring 3.54" (90 mm) wide x 0.98" (25 mm) thick x 69.29" (1760 mm) long. It is used in privacy, mid-trellis and full-trellis fence configurations built on the Suprotect aluminum post, rail and L-fix bracket framing system. The co-extrusion process bonds a protective polymer outer layer to a high-density recycled plastic and wood fiber core, producing a waterproof, UV-protected surface with a 3D wood grain texture. The material carries a 25-year rated life, and each panel weighs 5.82 lb. Installation calls for a 4 mm gap between post and panel. A 10-year warranty is stated in the product documentation.
| Mechanical | |
|---|---|
| Product Dimensions | 10x80mm |
| Finish | Ipe, 3D wood grain texture |
| Material | WPC (Wood Composite Polymer), co-extruded polymer cap |
| Mounting | Aluminum post and rail frame with L-fix brackets and M4x16 mm screws |
| Weight | 5.82 lb |
| Environmental | |
|---|---|
| Environmental Rating | Waterproof, UV protection |
| Ordering | |
| Warranty | 10 y |
Full manufacturer specifications, dimensions and wiring detail.
