B-F1-CF01-IPE

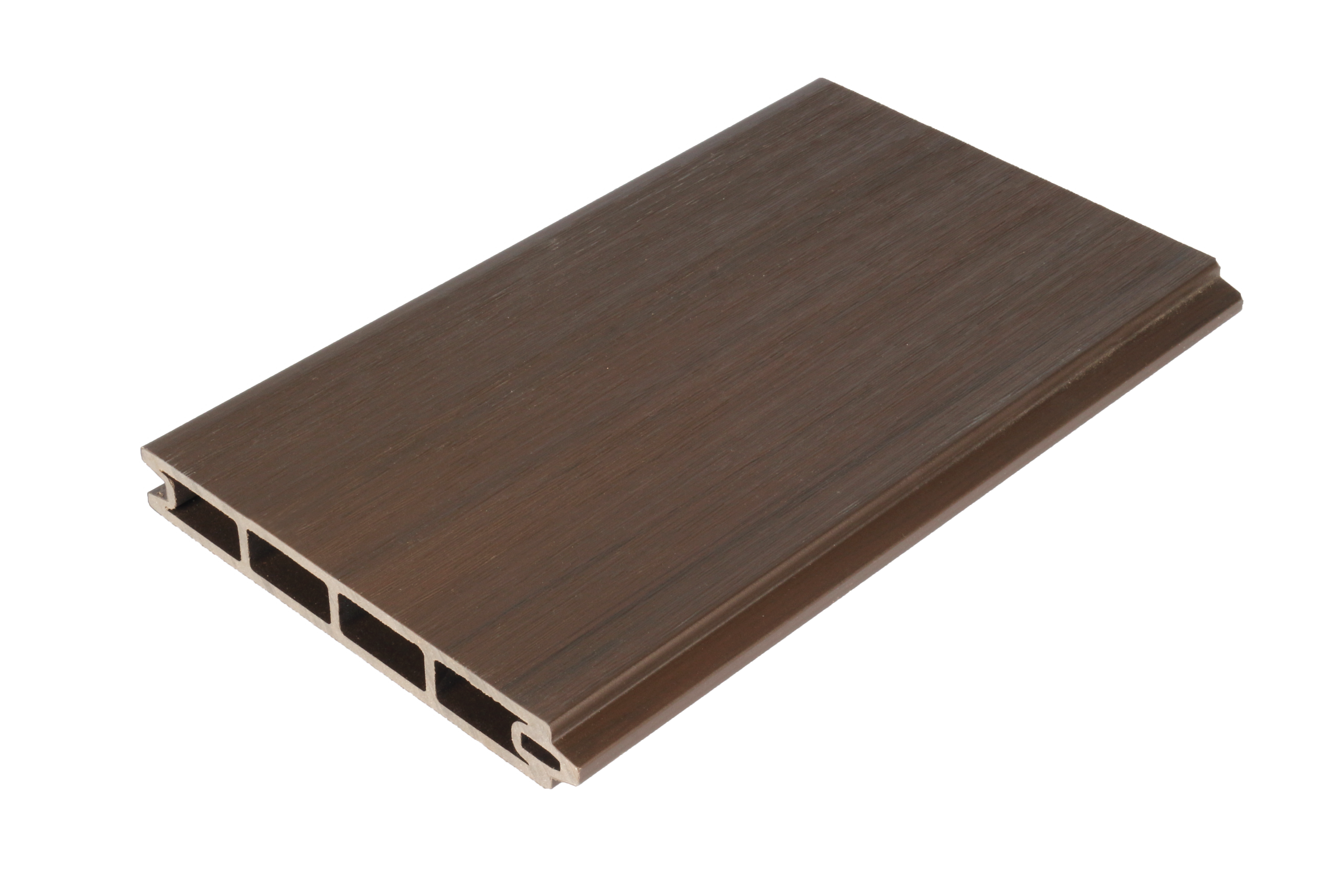

WPC Composite Fence Panel, 1760 x 180 x 25 mm, Ipe 3D Wood Grain, Waterproof and UV Rated
Ordered by 3 customers in the last 24 months
- Co-extruded WPC core with patented polymer cap layer
- Ipe color with 3D wood grain surface texture
- Waterproof and UV-protection environmental rating
- 25-year rated service life and 10-year warranty
- Panel weight of 5.82 lb for single-installer handling
- Assembles to aluminum posts and rails with M4x16 mm screws
At a glance
- Product Dimensions
- 10x80mm
Typical applications
- Residential and commercial privacy fencing
- Property boundary and perimeter screening
- Pool and patio enclosures
- Trash enclosure and equipment screening
- Courtyard and rooftop terrace partitions

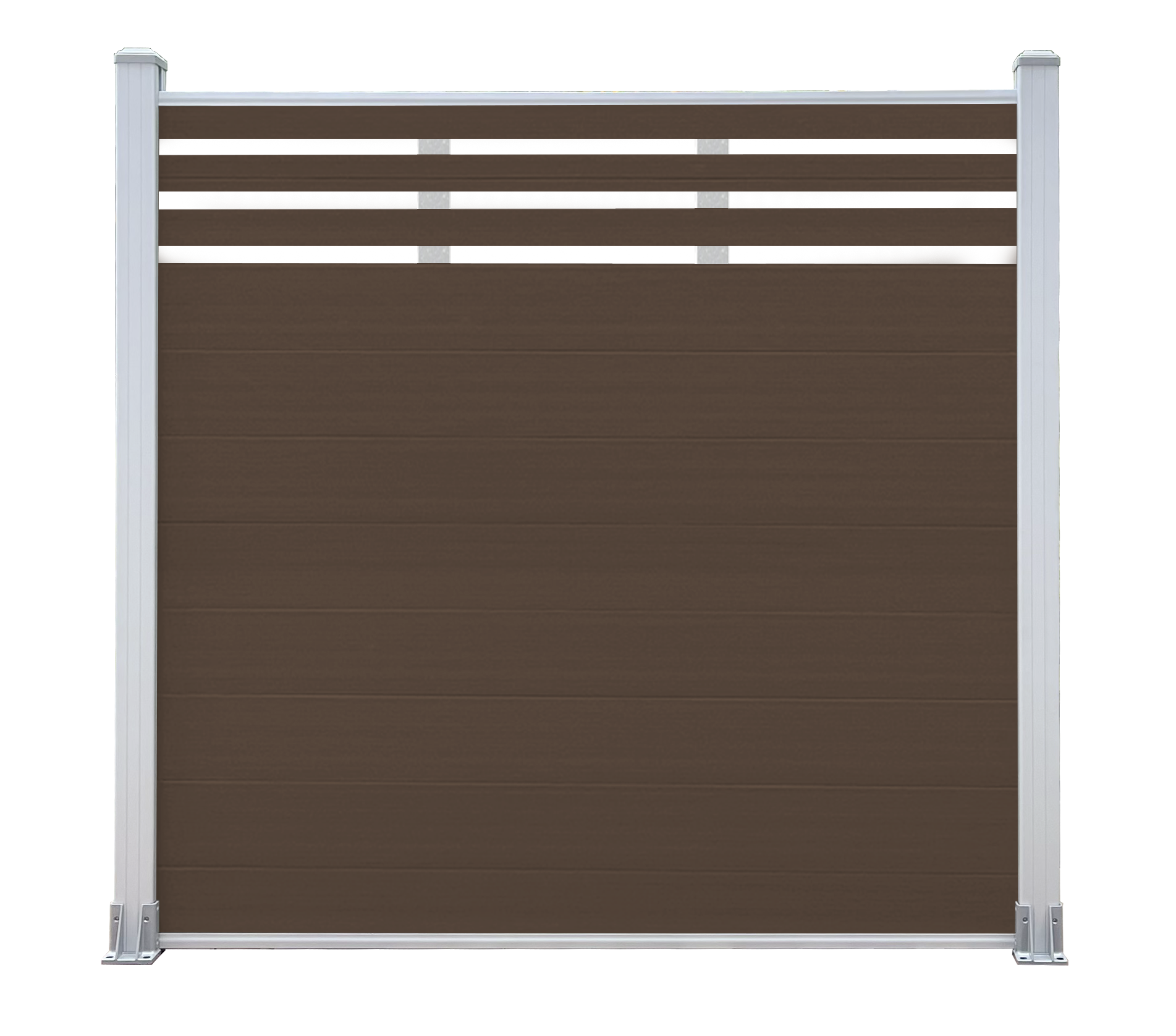

The S-CF01 composite fence panel is a co-extruded wood plastic composite board used in commercial and residential privacy fencing. Supplied in the Ipe color with a 3D wood grain texture, it installs with aluminum posts, top and bottom rails, side covers, L-fix brackets and caps to form complete privacy, mid-trellis or full-trellis sections. The core combines high-density recycled plastic and wood fiber, while a patented polymer cap layer applied during co-extrusion raises resistance to moisture and UV exposure. The panel carries a waterproof and UV-protection environmental rating, weighs 5.82 lb and is set with a 4 mm gap between post and panel during assembly. Rated service life is 25 years, backed by a 10-year product warranty.
| Mechanical | |
|---|---|
| Product Dimensions | 10x80mm |
| Finish | Ipe, 3D wood grain texture |
| Material | WPC (wood composite polymer) core with polymer cap layer |
| Mounting | Aluminum post and rail frame with L-fix brackets |
| Weight | 5.82 lb |
| Environmental | |
|---|---|
| Environmental Rating | Waterproof, UV protection |
| Ordering | |
| Warranty | 10 y |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetCustomer reviews
