B-F1-CF02-DG
Ordered by 2 customers in the last 24 months

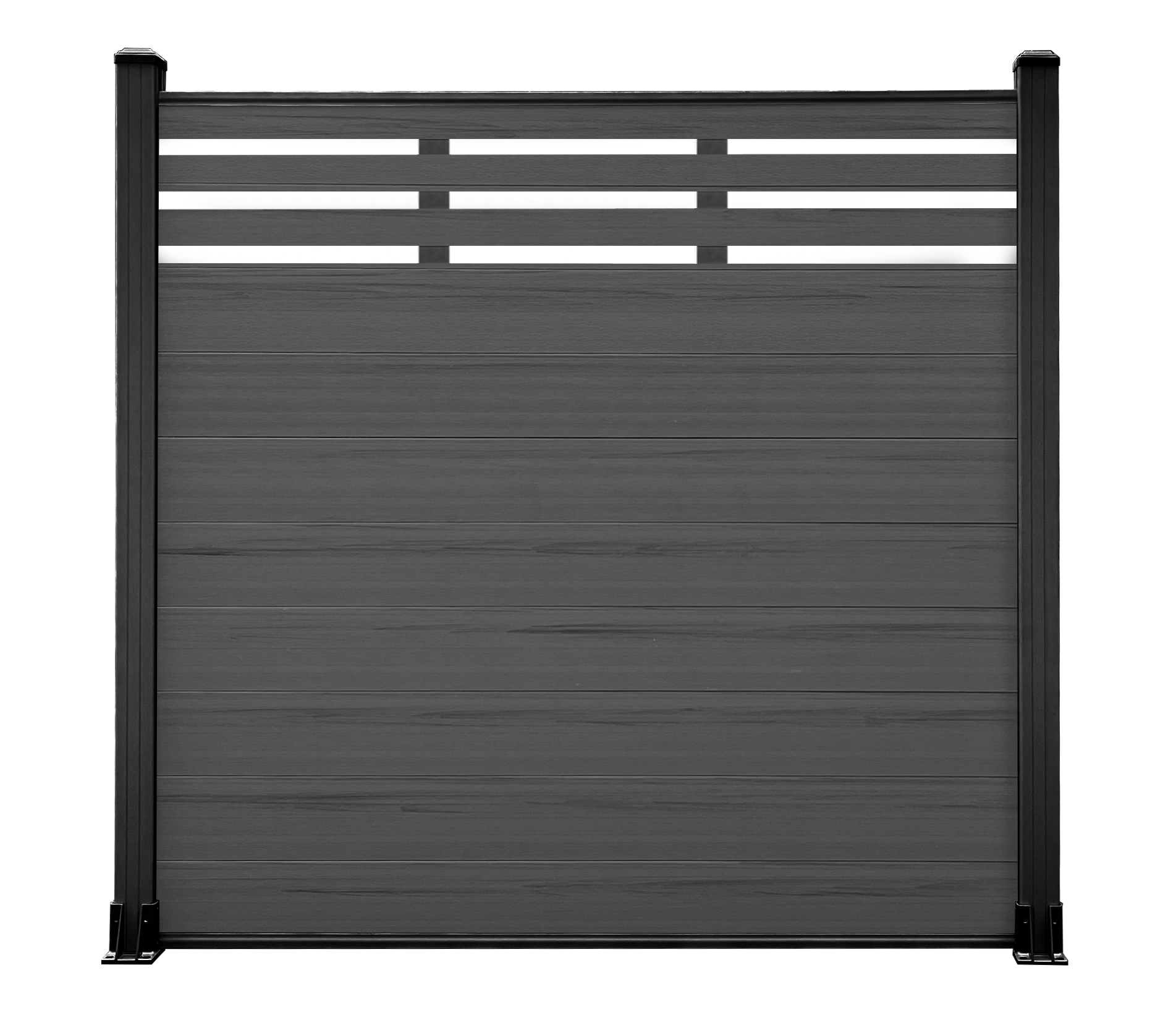

The S-CF02 is a co-extruded WPC (Wood Plastic Composite) fence panel in Dark Grey, measuring 3.54" wide x 0.98" thick x 69.29" long (90 x 25 x 1760 mm). It is used in privacy, mid-trellis, and full-trellis fence configurations, paired with aluminum structural components including posts, rails, L-fix brackets, base plates, and caps. The co-extrusion process bonds a protective polymer outer layer to a high-density recycled plastic and wood fiber core, producing a waterproof, UV-protected panel with a 3D wood grain texture. Rated service life is 25 years. Panel weight is 5.82 lb. Mating aluminum hardware is powder-coated or anodized for corrosion resistance. The fence system carries a 10-year warranty. Installation calls for a 4 mm gap between post and panel, with posts set 500 mm into soil or mounted on the aluminum post base.
| Mechanical | |
|---|---|
| Product Dimensions | 10x80mm |
| Finish | Dark Grey, 3D wood grain texture |
| Material | WPC (Wood Composite Polymer) with co-extruded polymer cap |
| Mounting | Aluminum post, rail, and L-fix bracket system |
| Weight | 5.82 lb |
| Environmental | |
|---|---|
| Environmental Rating | Waterproof, UV protection |
| Ordering | |
| Warranty | 10 y |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetNo reviews yet. Be the first to review this product.
