B-F1-CF01-DG

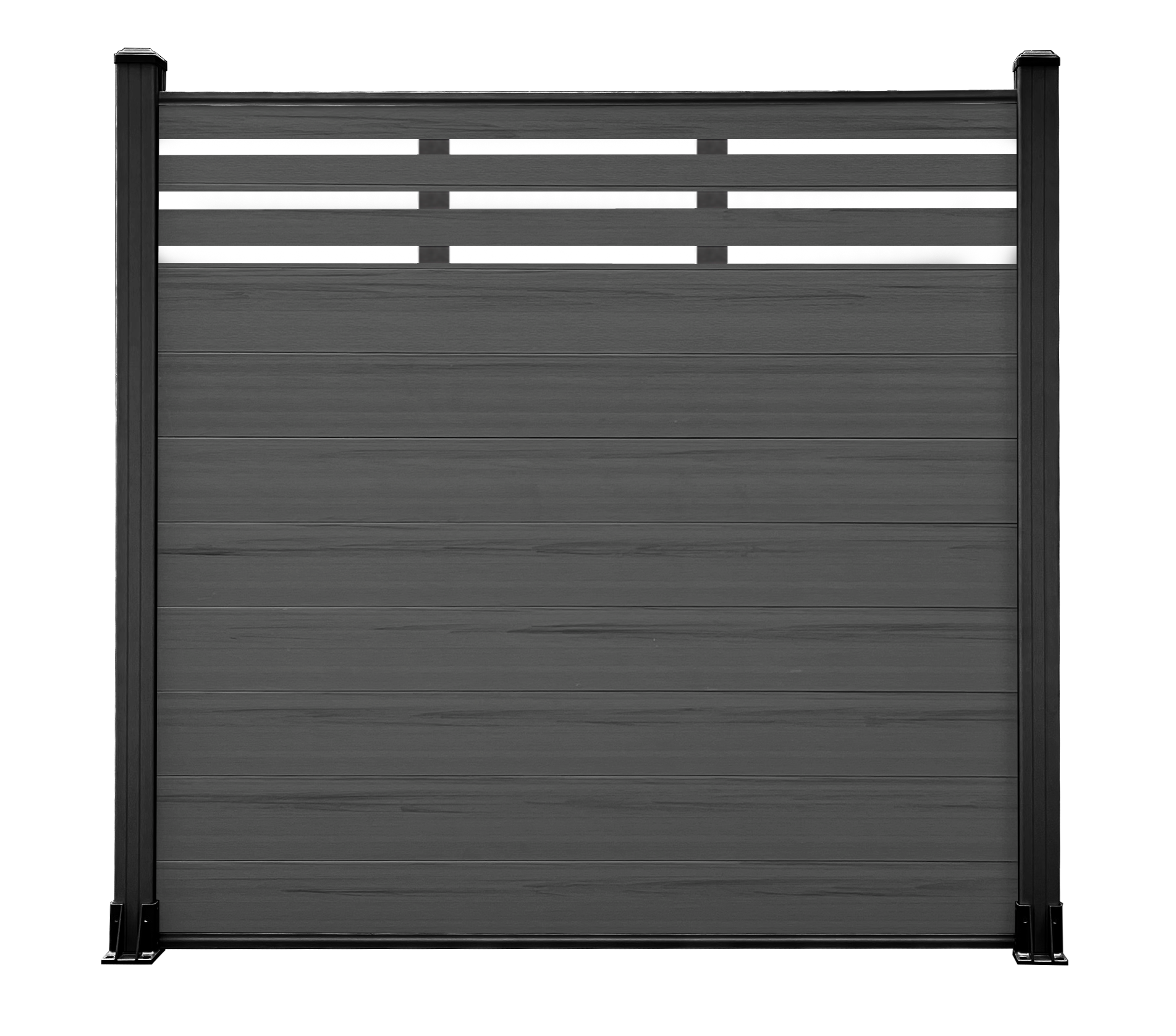

WPC Composite Fence Panel, 1760 x 180 x 24 mm, Dark Grey Co-Extruded Capped Surface
Ordered by 12 customers in the last 24 months
- Co-extruded WPC core with capped protective polymer outer layer
- Panel dimensions 1760 x 180 x 24 mm with 3D wood grain texture
- Dark Grey finish, one of six standard Suprotect colorways
- Waterproof and UV-protected construction with 25-year rated life
- Aluminum posts, rails and brackets, powder-coated or anodized
- 10-year product warranty on the composite fencing system
At a glance
- Product Dimensions
- 10x80mm
- Finish
- Dark Grey, 3D wood grain texture
- Material
- WPC (Wood Composite Polymer) with co-extruded polymer cap
- Mounting
- Aluminum post and rail system with L-fix brackets
- Weight
- 5.82 lb
- Environmental Rating
- Waterproof, UV protection
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Commercial property perimeter fencing
- Residential courtyard privacy screens
- Pool and patio enclosures
- Rooftop terrace screening
- Trash enclosure and utility screening
The CF01 is a co-extruded WPC (Wood Plastic Composite) fence panel used in commercial and residential perimeter fencing, courtyard screening and property boundary systems. Each panel measures 69.29" (1760 mm) long by 7.08" (180 mm) wide by 0.94" (24 mm) thick and is supplied in a Dark Grey finish, one of six standard colorways. The co-extrusion process fuses a protective polymer cap to a core of high-density recycled plastic and wood fiber, producing a 3D wood grain texture with improved surface resistance. The panel is rated waterproof with UV protection and carries a 25-year rated life. Panels install between aluminum posts using L-fix brackets, top and bottom rails, side covers and post caps, and support Privacy, Mid-Trellis and Full-Trellis configurations on common framing hardware. The Suprotect composite fencing system is covered by a 10-year warranty.
| Mechanical | |
|---|---|
| Product Dimensions | 10x80mm |
| Finish | Dark Grey, 3D wood grain texture |
| Material | WPC (Wood Composite Polymer) with co-extruded polymer cap |
| Mounting | Aluminum post and rail system with L-fix brackets |
| Weight | 5.82 lb |
| Environmental | |
|---|---|
| Environmental Rating | Waterproof, UV protection |
| Ordering | |
| Warranty | 10 y |
Full manufacturer specifications, dimensions and wiring detail.
