9-C2.5-A3WW-D-E

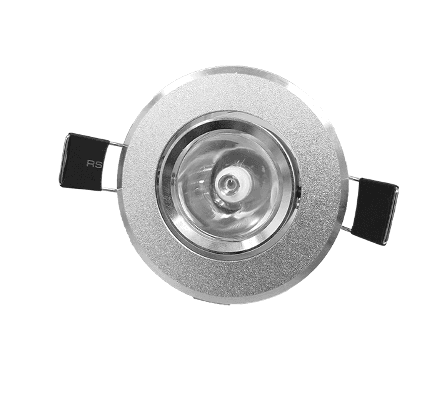

2.5" LED Cabinet Light, 3W, 3000K, 30° Beam, Dimmable, Silver
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
- 3W
- 3,000K
Purchased in 22 fulfilled orders over the last 24 months
- 3W power draw with 210 lumen output at 70 lm/W efficacy
- 3000K warm white color temperature with CRI of 80
- 30-degree beam angle for focused accent illumination
- Aluminum housing with silver finish, measures 3 x 3 x 2.5 in
- Dimmable for adjustable light output
- Rated for up to 50,000 hours of LED lifespan
At a glance
- Operating Voltage
- 120 V
- CRI
- 80
- Efficacy
- 70 lm/W
- Product Dimensions
- 3 × 3 × 2.5 in
- Dimmable
- Yes
- Luminous flux
- 210 lm
- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Under-cabinet lighting
- Display case illumination
- Retail shelving accents
- Residential accent lighting
- Task lighting in kitchens
The 2.5" LED Cabinet Light is a compact, aluminum-construction fixture designed for under-cabinet, display case, and accent lighting applications in commercial and residential settings. This fixture operates at 3W with a 3000K warm white color temperature and a 30-degree beam angle, delivering 210 lumens at an efficacy of 70 lm/W. The dimmable design allows output adjustment to suit varying task and ambient lighting requirements, and the unit is rated for up to 50,000 hours of service life.
| Optical | |
|---|---|
| Luminous flux | 210 lm |
| Efficacy | 70 lm/W |
| CCT | 3,000 K |
| CRI | 80 |
| Beam angle | 30° |
| LED Lifetime | 50,000 h |
| Ordering | |
| Warranty | 1 y |
| Electrical | |
|---|---|
| Operating Voltage | 120 V |
| Wattage | 3 W |
| Dimmable | Yes |
| Dimmer Type | Dimmable |
| Mechanical | |
| Product Dimensions | 3 × 3 × 2.5 in |
| Finish | Silver |
| Material | Aluminum |
| Weight | 0.1 lb |
Full manufacturer specifications, dimensions and wiring detail.
