9-C2.5-A3W-D-E
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
Ordered by 25 customers in the last 24 months

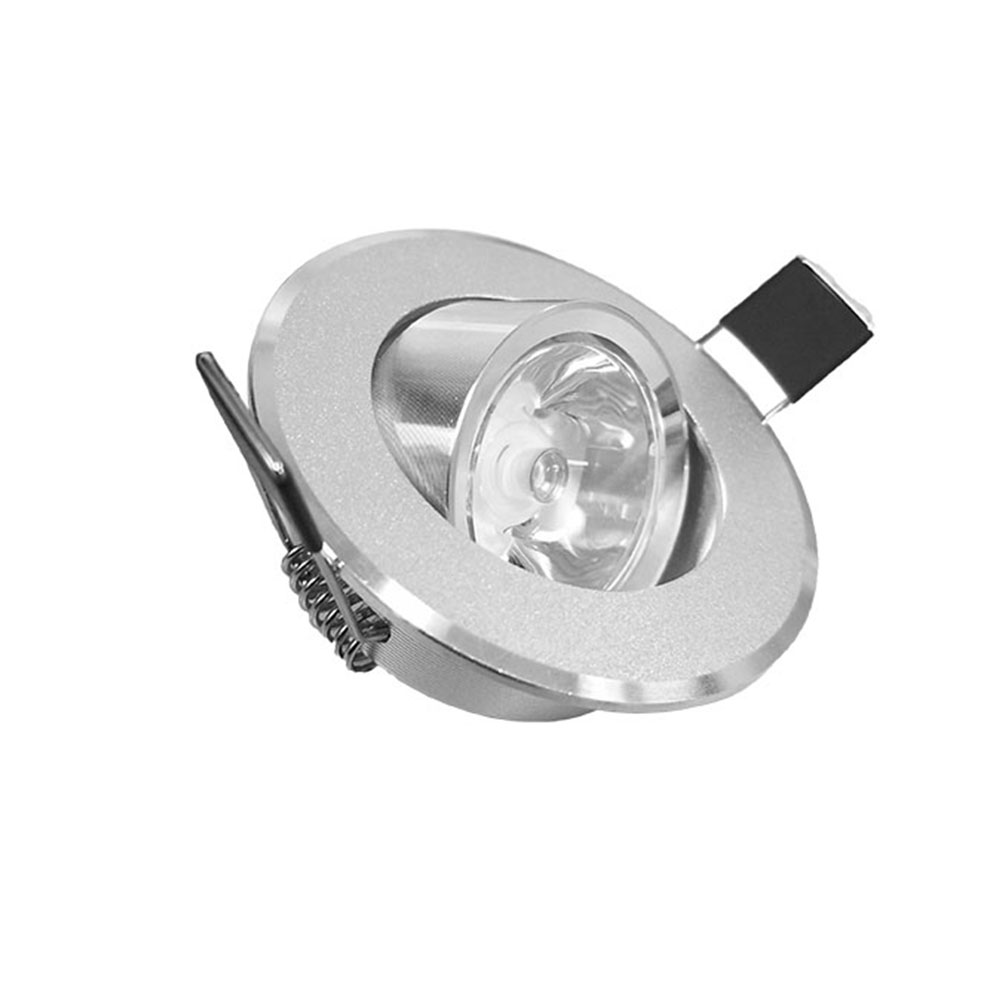

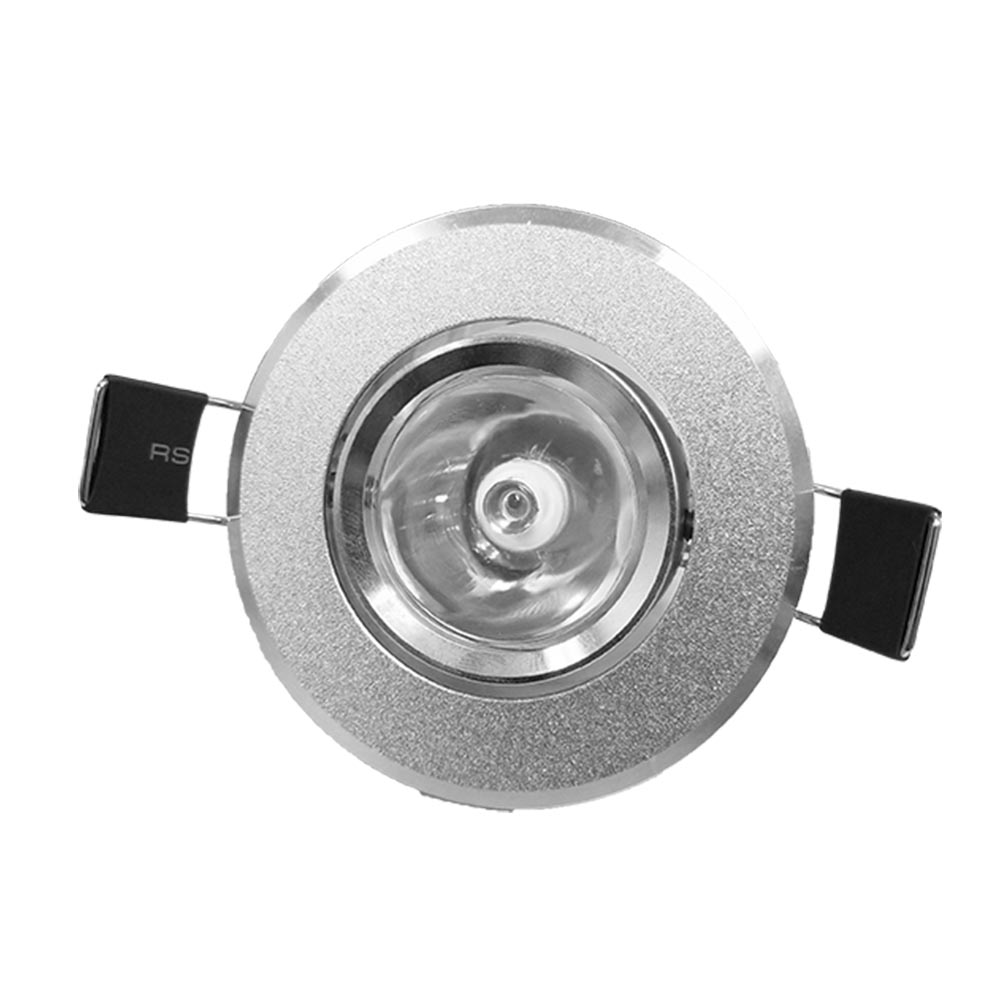

The 2.5 in. LED Cabinet Light is a compact, aluminum-housed fixture designed for under-cabinet, display case, artwork, and task lighting applications where focused, controlled illumination is required. Its silver finish and small 3 x 3 x 2.5 in. footprint suit tight installation spaces. The fixture operates at 3W and delivers 210 lumens at 6000K with a 30-degree beam angle, making it well suited for accent and spot applications. CRI is rated above 80 for reasonable color rendering. The unit is dimmable, weighs 0.1 lb, and carries a rated lifespan of up to 50,000 hours with an operating voltage of 120V and an ambient operating range of 25-45°C. This final-sale product has a 30-day limited warranty.
| Optical | |
|---|---|
| Luminous flux | 210 lm |
| CCT | 6,000 K |
| CRI | 80 |
| Beam angle | 30° |
| LED Lifetime | 50,000 h |
| Environmental | |
| Ambient Operating Temperature | {"min":25,"max":45} |
| Ordering | |
| Warranty | 30 days |
| Electrical | |
|---|---|
| Operating Voltage | 120 V |
| Wattage | 3 W |
| Dimmable | Yes |
| Dimmer Type | Dimmable |
| Mechanical | |
| Product Dimensions | 3 × 3 × 2.5 in |
| Finish | Silver |
| Material | Aluminum |
| Weight | 0.1 lb |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetNo reviews yet. Be the first to review this product.
