5-LW1606A-BK
Black Anodized Aluminum LED Channel Profile, 2500mm Length, 22x7mm Cross-Section
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
Purchased in 8 fulfilled orders over the last 24 months
- 6063-T5 aluminum extrusion with black anodized surface finish

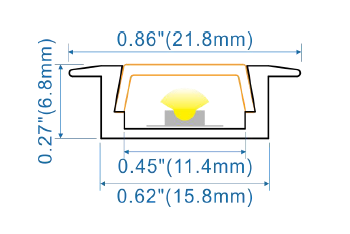

- 2500mm length with a 22x7mm profile cross-section
- Accepts flexible LED strips up to 11mm in width
- Working temperature range of -50°C to 100°C
- Milky PC diffuser transmits 86% of LED output
- Push-in diffuser assembly with medium coefficient diffusion
At a glance
- Product Dimensions
- 2500x22x7mm
- Material
- Aluminum
- Finish
- Black
- Mounting
- Surface mount channel
- Ambient Operating Temperature
- -50 °C
Some technical details are being checked. Confirm requirements before choosing connected components.
Datasheet (PDF)- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Retail display and shelving illumination
- Architectural cove and perimeter lighting
- Under-cabinet and millwork installations
- Commercial office ceiling and wall detailing
- Signage and lightbox interiors
This black anodized aluminum LED channel profile houses and protects flexible LED strip lighting in commercial and architectural installations. At 2500mm in length with a 22x7mm cross-section, it accommodates LED strips up to 11mm wide and provides both a heat-dissipation path and physical protection for the strip. Constructed from 6063-T5 aluminum with a high-standard black anodized surface, the profile is rated for working temperatures from -50°C to 100°C. It accepts a milky PC diffuser that transmits 86% of light output with medium coefficient diffusion, reducing visible LED hot spots and producing uniform surface brightness. The diffuser assembles by push-in method and requires no additional fasteners.
| Mechanical | |
|---|---|
| Product Dimensions | 2500x22x7mm |
| Finish | Black |
| Material | Aluminum |
| Mounting | Surface mount channel |
| Environmental | |
|---|---|
| Ambient Operating Temperature | -50 °C(-58 °F) |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetCustomer reviews
No reviews yet. Be the first to review this product.
