5-LC16
16x16mm Corner Mount LED Aluminum Channel
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
Purchased in 405 fulfilled orders over the last 24 months
- 6063-T5 aluminum extrusion with high-standard anodized surface
- 16x16mm corner profile with 10.5mm inner channel width
- Accepts LED flexible strips up to 10mm in width

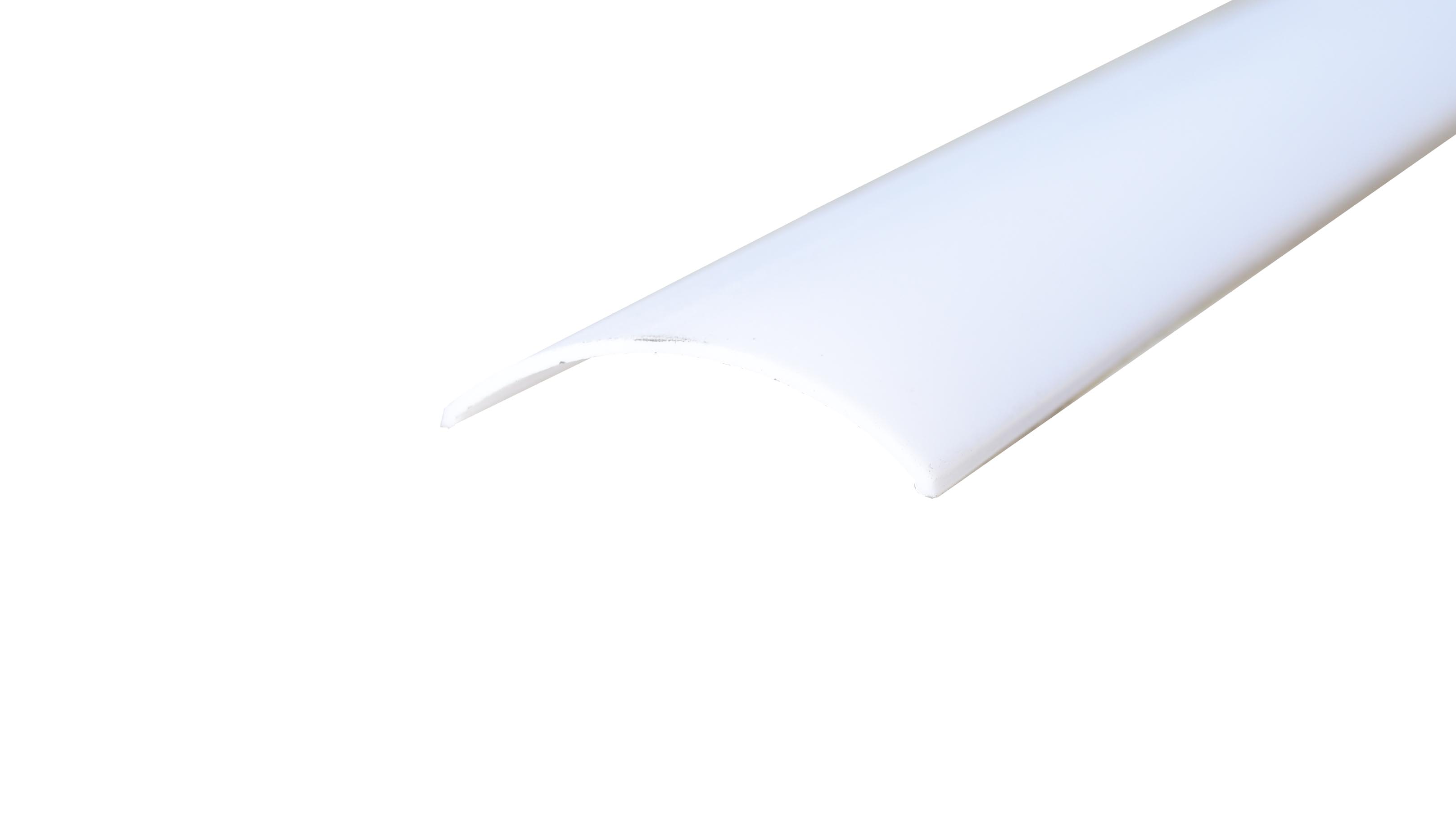

- Milky PC diffuser transmits 86% of light with medium diffusion
- Push-in diffuser assembly in milky, transparent or black PC
- Working temperature range of -50 C to 100 C
At a glance
- Product Dimensions
- 16x16mm
- Length
- 2.5 m
- Material
- 6063-T5 aluminum
- Warranty
- 1 y
- Strip Width
- 10 mm
- Finish
- Silver Anodized, White Painted or Black Anodized
Some technical details are being checked. Confirm requirements before choosing connected components.
Datasheet (PDF)- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Retail display casework and shelving corners
- Cove and ceiling perimeter accent lighting
- Cabinet and millwork interiors
- Stair and corridor edge lighting
- Signage and exhibit fixture framing
The 5-LC16 is a 16x16mm corner-mount aluminum channel profile that houses and protects LED flexible strip lighting in 90-degree corner installations. This configuration ships at 8.2 ft (98 in) with a 10.5mm inner width, and the profile line is available in 1m, 2m, 2.5m, 3m and 4m lengths up to 13.2 ft. Constructed from 6063-T5 aluminum with a high-standard anodized surface, the extrusion acts as a heat sink and provides physical protection for strips up to 10mm wide. Finishes include Silver Anodized, White Painted and Black Anodized. Push-in PC diffusers are offered in milky (opal), transparent and black; the milky cover transmits 86% of light with medium coefficient diffusion for uniform brightness and reduced LED hot spots. Working temperature range is -50 C to 100 C, with a rated LED service life of 50,000 hours. Covered by a 1-year warranty.
| Mechanical | |
|---|---|
| Product Dimensions | 16x16mm |
| Length | 2.5 m(8.2 ft) |
| Strip Width | 10 mm(0.39 in) |
| Finish | Silver Anodized, White Painted or Black Anodized |
| Material | 6063-T5 aluminum |
| Mounting | Corner mount |
| Environmental | |
|---|---|
| Ambient Operating Temperature | -50 °C(-58 °F) |
| Ordering | |
| Warranty | 1 y |
