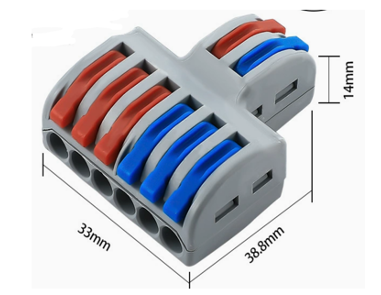

E-CON-P-26
Conector de presión de 2-6 puertos, 400V, 32A, Entrada: 20AWG - 10AWG (0.5 - 6mm2) 28, Salida: 28AWG - 12AWG (0.5 - 4mm2)
Pedido por 3 clientes en los últimos 24 meses
- Rated 400V and 32A for line and branch terminations
- Input conductor range 20–10AWG (0.5–6mm²)
- Output conductor range 28–12AWG (0.5–4mm²)
- Polycarbonate housing with nickel-chromium alloy steel spring
- Ambient operating range of -40°C to +105°C
- Tool-free push-in termination with 8–12mm stripped length
De un vistazo
- LED Lifetime
- 50,000 h
- Operating Voltage
- 400 V
- Maximum Current
- 32 A
- Input Connection Type
- Push-in spring clamp, 2–6 port
- Wire Gauge
- Input 20-10, Output 28-12
- Finish
- Grey
- Envío gratis en pedidos de más de $300
- Retiro el mismo día en Doral
- Envíos desde Miami, FL
- Garantía del fabricante incluida
¿Necesita precio por volumen? Consultar mayoreo
Aplicaciones típicas
- Control and distribution panel wiring
- Junction box terminations
- LED fixture and luminaire wiring
- Channel letter and sign enclosures
- Building service branch connections
A 2–6 port press-on wire connector for tool-free terminations in commercial and industrial wiring. The push-in spring clamp accepts conductors without a screwdriver, suiting panel wiring, junction connections and fixture installations where installation speed and joint reliability matter. The connector is rated 400V and 32A, with an input wire range of 20–10AWG (0.5–6mm²) and an output wire range of 28–12AWG (0.5–4mm²). The housing is polycarbonate in a grey finish and the spring contact is nickel-chromium alloy steel. Ambient operating range is -40°C to +105°C, with a recommended stripped length of 8–12mm.
| Óptica | |
|---|---|
| Vida útil del LED | 50,000 h |
| Mecánica | |
| Acabado | Grey |
| Material | Polycarbonate housing, nickel-chromium alloy steel spring |
| Ambiental | |
| Temperatura ambiente de operación | -40–105 °C(-40–221 °F) |
| Eléctrica | |
|---|---|
| Voltaje de operación | 400 V |
| Corriente máxima | 32 A |
| Tipo de conexión de entrada | Push-in spring clamp, 2–6 port |
| Calibre del cable | Input 20-10, Output 28-12 |
Especificaciones completas del fabricante, dimensiones y detalle de conexión.
