M-NR6-P-LED-10M

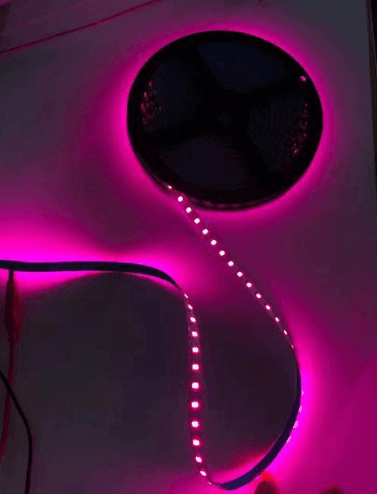

Pink LED Neon Flex, 6mm, SMD2835, 8W/m, 12V DC, IP20, 10M Reel
- 12V
- 8W
Ordered by 21 customers in the last 24 months
- SMD2835 LED chip at 120 LEDs per meter density
- Draws 8W per meter at 12V DC input voltage
- 80 CRI color rendering with a 120° beam angle
- IP20 rated for dry indoor installations only
- Rated LED lifetime of 50,000 hours
- Silicone construction cuttable at 2.5cm intervals
At a glance
- CRI
- 80
- Efficacy
- 400 lm/W
- LED Density
- 120 LEDs/m
- Beam Angle
- 120°
- LED Chip Type
- SMD2835
- LED Lifetime
- 50,000 h
- CE
- RoHS Compliant
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Cove and architectural accent lighting
- Retail display and shelf lighting
- Hospitality and restaurant ambiance lighting
- Signage and channel letter backlighting
The M-NR6-P-LED-10M is a pink flexible LED neon strip designed for use with the 2nd Gen M-NR6-P-SILC silicone channel. Supplied in a 10-meter reel with a 6mm PCB width, it suits indoor accent and architectural lighting applications requiring a low-profile, bendable light source. The strip uses SMD2835 LEDs at a density of 120 per meter, drawing 8W/m at 12V DC and rated at 80 CRI with a 120° beam angle. The IP20 rating limits use to dry, indoor environments. Cutting intervals are set at 2.5cm (approximately 1 inch), and rated LED lifetime is 50,000 hours. Operating temperature range is -40°C to +60°C. This product carries CE and RoHS certification and a 1-year warranty.
| Optical | |
|---|---|
| Efficacy | 400 lm/W |
| CRI | 80 |
| Beam angle | 120° |
| LED Chip Type | SMD2835 |
| LED Density | 120 LEDs/m |
| LED Lifetime | 50,000 h |
| Color | Pink |
| Environmental | |
| IP rating | IP20 |
| Ambient Operating Temperature | -40–60 °C(-40–140 °F) |
| Ordering | |
| Warranty | 1 y |
| Electrical | |
|---|---|
| Operating Voltage | 12 V |
| Wattage | 8 W |
| Wattage per Foot | 2.44 W/ft |
| Current Draw per Foot | 0.2 A/ft |
| Max Run (Class 2) | 41 ft(12.5 m) |
| Mechanical | |
| Length | 10 m(32.8 ft) |
| Minimum Cut Length | inch |
| Material | Silicone |
| Compliance | |
| Certifications | CE, RoHS |
Calculated from other published specifications.
Maximum run calculated against a 100 W Class 2 limit. Verify against local code and the driver rating.
Full manufacturer specifications, dimensions and wiring detail.
