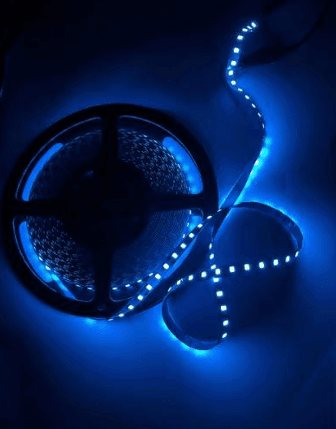

M-NR6-B-LED-10M
Bendable Blue LED Neon Flex, SMD2835, 120 LEDs/m, 8W/m, IP20, 10M Roll
Each unit contains 10 m, according to this product’s current specifications. Quantity selects the number of units.
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
- 12V
- 6mm
Purchased in 14 fulfilled orders over the last 24 months
- SMD2835 LED chips at 120 LEDs/m density
- 8W/m power draw on 12V DC input
- 400 lm/m output at 400 lm/W efficacy, 80 CRI
- IP20 rated for dry indoor installations only
Typical applications
- Architectural cove lighting
- Accent and detail lighting
- Retail and hospitality display lighting
- Signage backlighting
- Residential ambiance lighting
The M-NR6-B-LED-10M is a bendable blue LED strip light supplied in a 10-meter roll, designed for use with the 2nd Gen M-NR6-B-SILC silicone channel. Its flexible construction and 6mm PCB width make it suitable for accent lighting, cove lighting, and architectural detail work in both residential and commercial interior applications. The strip uses SMD2835 emitters at a density of 120 LEDs/m and draws 8W/m on a 12V DC input, delivering 400 lm/m at an efficacy of 400 lm/W with an 80 CRI and 120° beam angle. It carries an IP20 rating, limiting use to dry indoor environments. The PCB can be cut at 2.5cm (~1 inch) intervals for custom lengths, and rated LED lifetime is 50,000 hours. Operating temperature range is -40°C to 60°C. This product is CE and RoHS compliant and carries a 1-year warranty.
| Optical | |
|---|---|
| Efficacy | 400 lm/W |
| CRI | 80 |
| Beam angle | 120° |
| LED Chip Type | SMD2835 |
| LED Density | 120 LEDs/m |
| LED Lifetime | 50,000 h |
| Color | Blue |
| Compliance | |
| Certifications | CE, RoHS |
| Electrical | |
|---|---|
| Operating Voltage | 12 V |
| Mechanical | |
| Length | 10 m(32.8 ft) |
| Strip Width | 6 mm(0.24 in) |
| Material | Silicone |
| Environmental | |
| IP rating | IP20 |
| Ambient Operating Temperature | -40–60 °C(-40–140 °F) |
| Ordering | |
| Warranty | 1 y |
Full manufacturer specifications, dimensions and wiring detail.
