CA4-20
4-Conductor Flat Cable, 20 AWG, UL1007, 21/0.16TS Stranding, Sold per Foot
- 20 AWG tinned stranded copper conductor in 21/0.16TS construction
- Rated 300 V with an 80 degrees C conductor temperature rating
- PVC insulation at 0.38 mm nominal wall thickness, RoHS compliant
- Conductor resistance of 50 ohms/km at 20 degrees C
- Dielectric withstand tested at 2000 V AC for one minute

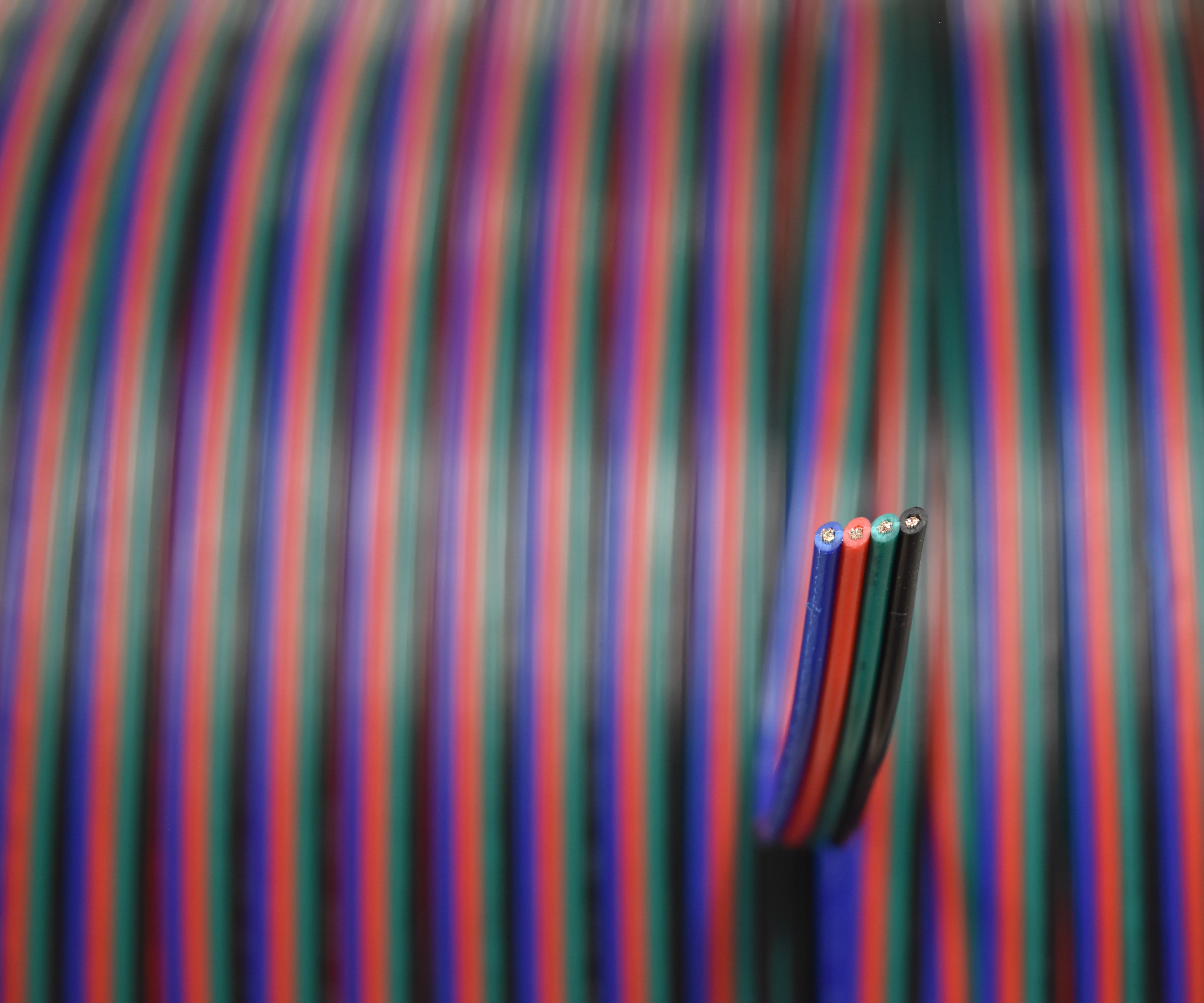

- Supplied from 967-foot rolls and priced by the foot
At a glance
- LED Lifetime
- 50,000 h
- Operating Voltage
- 300 V
- Wire Gauge
- 20 AWG
- Product Dimensions
- 1.8 mm x 3.6 mm nominal flat profile
- Length
- 294.7 m
- Material
- Tinned stranded copper conductor with PVC insulation
- RoHS Compliant
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Commercial control panel wiring
- Industrial equipment interconnects
- Signage and lighting fixture harnesses
- Low-voltage device and appliance wiring
- Building system multi-conductor runs

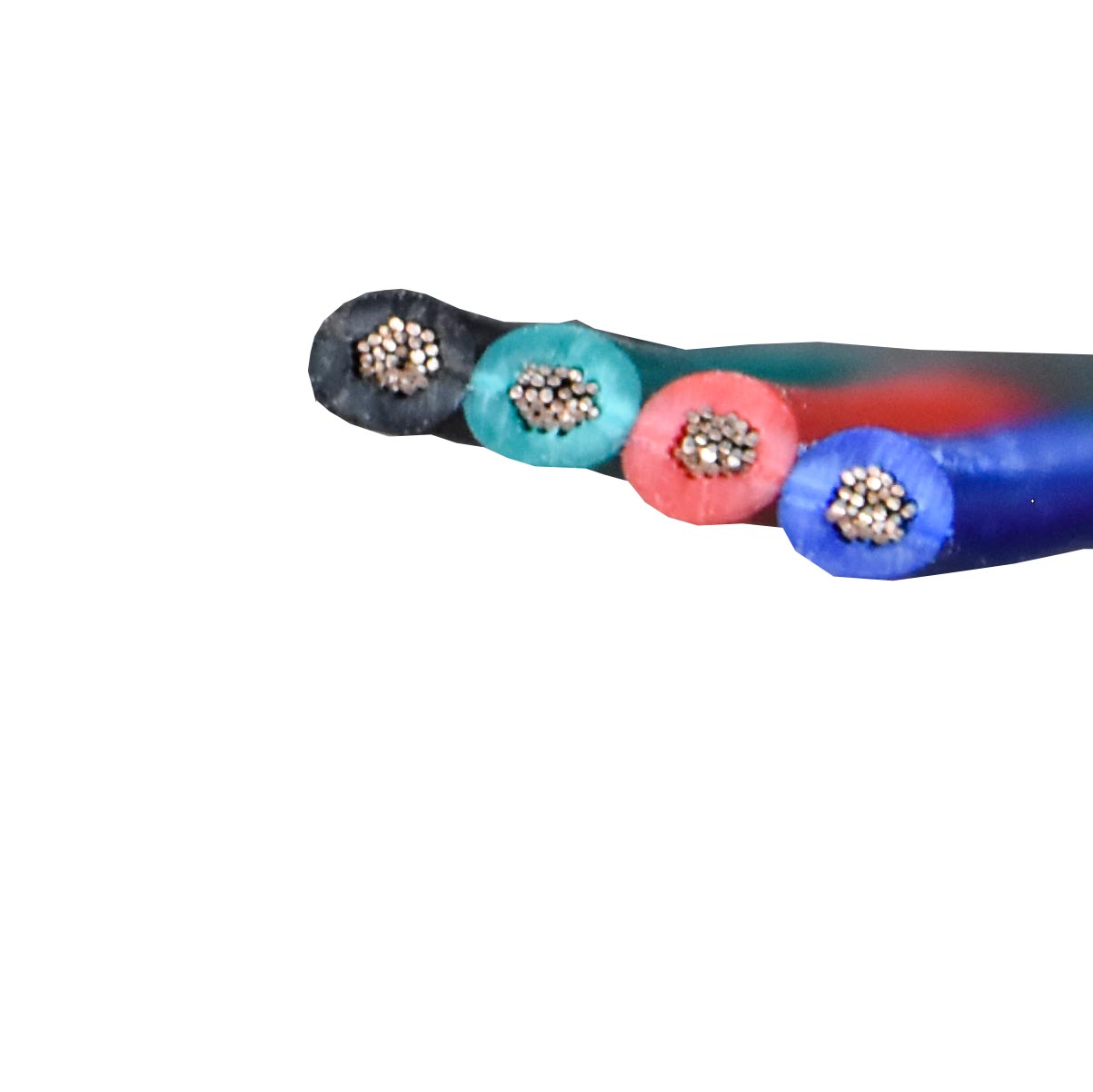

The CA4-20 is a 4-conductor flat cable constructed with 20 AWG tinned stranded copper in a 21/0.16TS configuration, intended for commercial and industrial wiring runs where multiple conductors are carried in a single jacketed profile. It is sold by the foot from rolls of 967 feet, reducing splices and junctions over longer runs. Conductors are PVC insulated to a nominal 0.38 mm wall, producing a flat cross section of 1.8 mm by 3.6 mm. The cable is rated 300 V at 80 degrees C, with a conductor resistance of 50 ohms/km at 20 degrees C and a 2000 V AC dielectric withstand test. Materials meet RoHS environmental standards, the cable is rated to UL1007, and the product carries a one-year warranty.
| Optical | |
|---|---|
| LED Lifetime | 50,000 h |
| Mechanical | |
| Product Dimensions | 1.8 mm x 3.6 mm nominal flat profile |
| Length | 294.7 m(966.9 ft) |
| Material | Tinned stranded copper conductor with PVC insulation |
| Ordering | |
| Warranty | 1 y |
| Electrical | |
|---|---|
| Operating Voltage | 300 V |
| Wire Gauge | 20 AWG |
| Environmental | |
| Environmental Rating | RoHS |
| Ambient Operating Temperature | 80 °C(176 °F) |
Full manufacturer specifications, dimensions and wiring detail.
