M-50N-60-RGB-UL

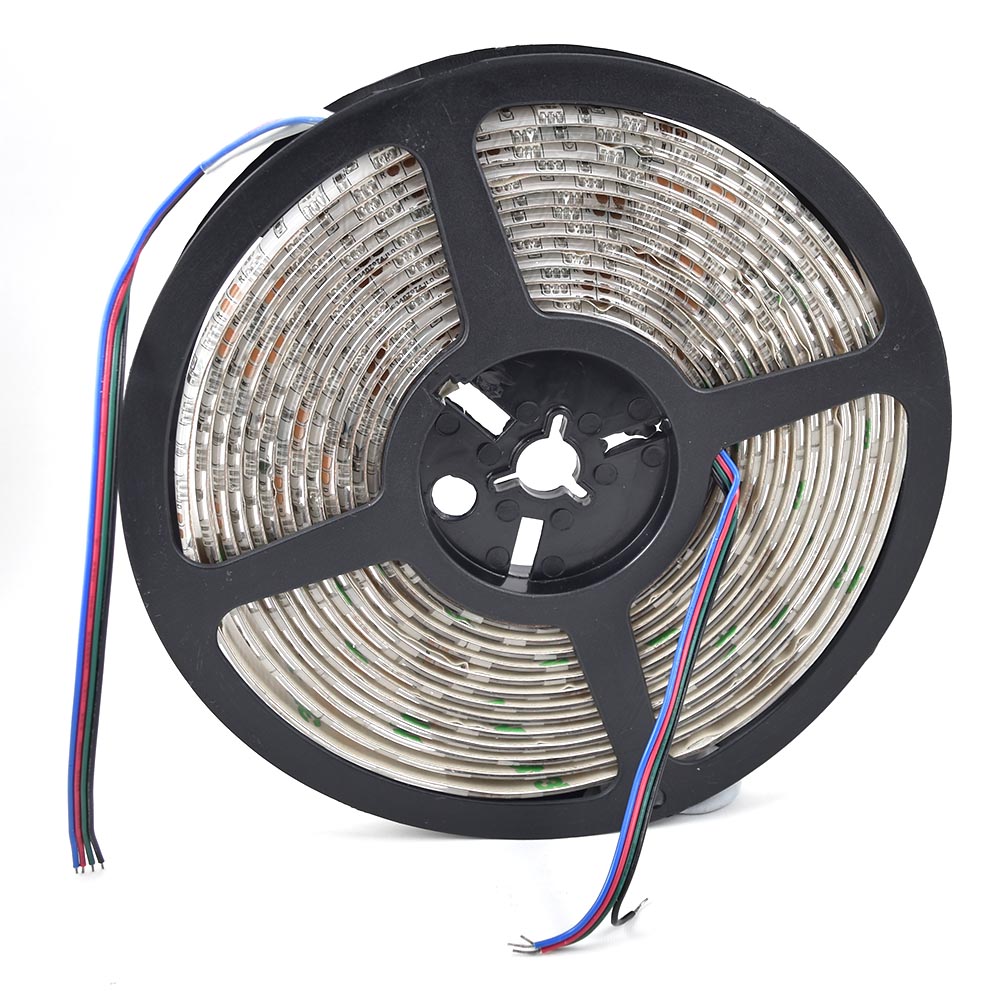

RGB LED Tape Light, SMD5050, 60 LEDs/m, 12VDC, 5m Roll, IP20, UL
Each unit contains 5 m, according to this product’s current specifications. Quantity selects the number of units.
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
- 12V
Ordered by 62 customers in the last 24 months
- SMD5050 chip package with 60 LEDs per meter for even color mixing
- Draws 14.4W per meter at 12VDC operating voltage
- CRI of 95 for accurate RGB color rendering
- IP20 rated for dry indoor installation environments
- 50,000-hour LED lifetime with a 2mm minimum cut length
- UL, RoHS, and CE listed with a 1-year warranty
At a glance
- CRI
- 95
- IP rating
- IP20
- Efficacy
- 960 lm/W
- LED Density
- 60 LEDs/m
- Length
- 5 m
- Minimum Cut Length
- 2 mm
Some technical details are being checked. Confirm requirements before choosing connected components.
Datasheet (PDF)- UL Listed
- RoHS Compliant
- CE
- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Cove and accent lighting
- Under-cabinet color lighting
- Retail display and signage backlighting
- Architectural feature walls
- Residential decorative lighting
The M-50N-60-RGB-UL is an RGB LED tape light designed for color accent and decorative lighting in commercial and residential applications. The strip ships in a 5-meter roll, operates at 12VDC, and uses SMD5050 chips at 60 LEDs per meter for consistent color mixing along the run. The strip draws 14.4W per meter and delivers 500 lumens per foot, with a CRI of 95 for accurate color rendering across the RGB output range. It carries an IP20 rating for dry indoor locations, a 120° beam angle, and an LED lifetime of 50,000 hours, with a minimum cut length of 2mm for flexible layout planning. The product is UL, RoHS, and CE listed and carries a 1-year warranty.
| Optical | |
|---|---|
| Efficacy | 960 lm/W |
| CRI | 95 |
| Beam angle | 120° |
| LED Chip Type | SMD5050 |
| LED Density | 60 LEDs/m |
| LED Lifetime | 50,000 h |
| Color | RGB |
| Compliance | |
| Certifications | UL, RoHS, CE |
| Electrical | |
|---|---|
| Operating Voltage | 12 V |
| Mechanical | |
| Length | 5 m(16.4 ft) |
| Minimum Cut Length | 2 mm(0.08 in) |
| Finish | White |
| Environmental | |
| IP rating | IP20 |
| Ambient Operating Temperature | -40–40 °C(-40–104 °F) |
| Ordering | |
| Warranty | 1 y |
