C-SP5IN1-SMRT-WIFI
SPI LED Controller, Wi-Fi & Bluetooth, 5-Channel, Up to 1200 Pixels
Ordered by 189 customers in the last 24 months
- Supports SPI addressable pixel counts from 600 to 1200
- Drives up to 5 channels including RGB, RGBW and RGBCW
- Operating voltage range of 5-24 V with 6 A max current draw
- Compact plastic housing measures 78 x 56 x 20 mm
- 2.4 GHz wireless remote range up to 30 meters
- Rated for -10 to 60°C ambient operating temperature
At a glance
- LED Lifetime
- 50,000 h
- Operating Voltage
- 5–24 V
- Maximum Current
- 6 A
- Product Dimensions
- 78x56x20 mm
- Finish
- White
- Material
- Plastic
- CE
- FCC
- RoHS Compliant
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Architectural accent lighting
- Signage and channel letter illumination
- Addressable LED strip installations
- Decorative and cove lighting control
- Retail and hospitality lighting displays

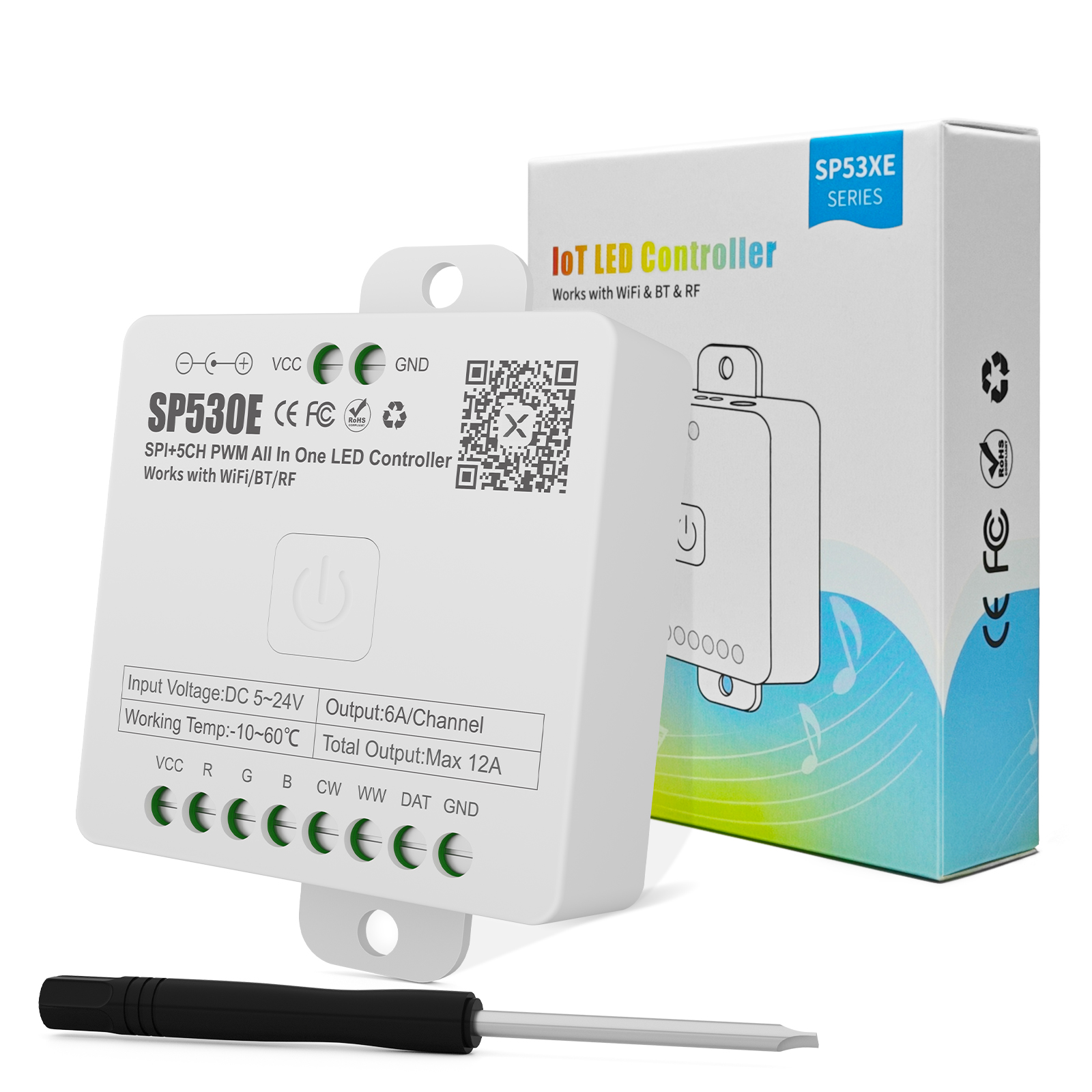

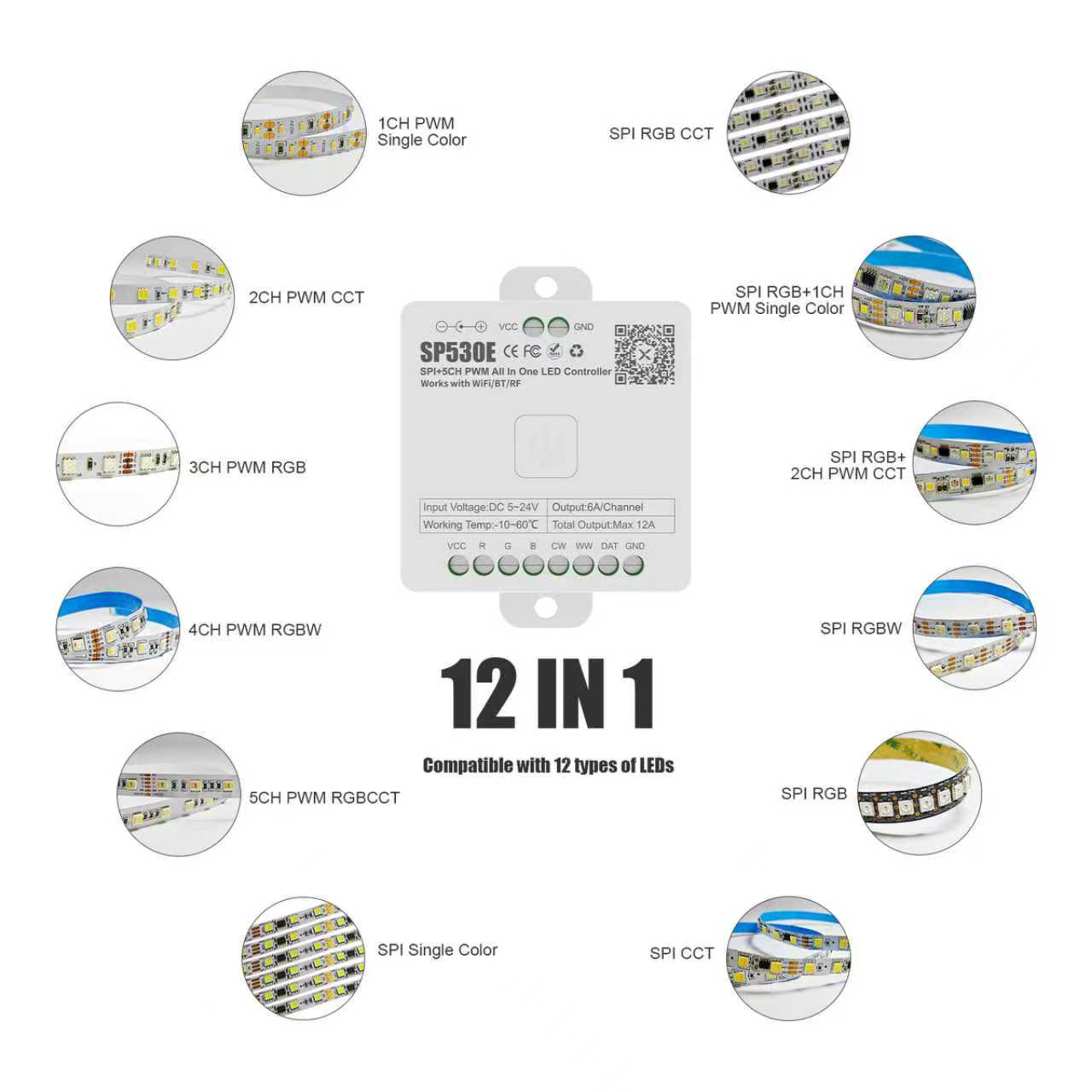

This is a dual-mode SPI/PWM LED controller supporting 2.4 GHz Wi-Fi and Bluetooth connectivity, used to drive addressable and non-addressable LED strips including single color, CCT, RGB, RGBW and RGBCW configurations. It supports up to five channel outputs and addressable pixel counts from 600 to 1,200, suited for signage, architectural lighting and decorative strip installations. The controller operates on 5-24 V input with a maximum current draw of 6 A and an operating temperature range of -10 to 60°C. Its plastic housing measures 78 x 56 x 20 mm with a white finish, and it can pair with app-based remote control or wireless remote panels at a 2.4 GHz range of up to 30 meters. Certifications listed for this product include CE, FCC, and RoHS.
| Optical | |
|---|---|
| LED Lifetime | 50,000 h |
| Mechanical | |
| Product Dimensions | 78x56x20 mm |
| Finish | White |
| Material | Plastic |
| Ordering | |
| Warranty | 1 y |
| Electrical | |
|---|---|
| Operating Voltage | 5–24 V |
| Maximum Current | 6 A |
| Environmental | |
| Ambient Operating Temperature | -10–60 °C(14–140 °F) |
| Compliance | |
| Certifications | CE, FCC, Rosh |
