9-TK-HA-3K-B-LAMP
Out of stock right now. Ask us for the next delivery date.
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
Purchased in 3 fulfilled orders over the last 24 months

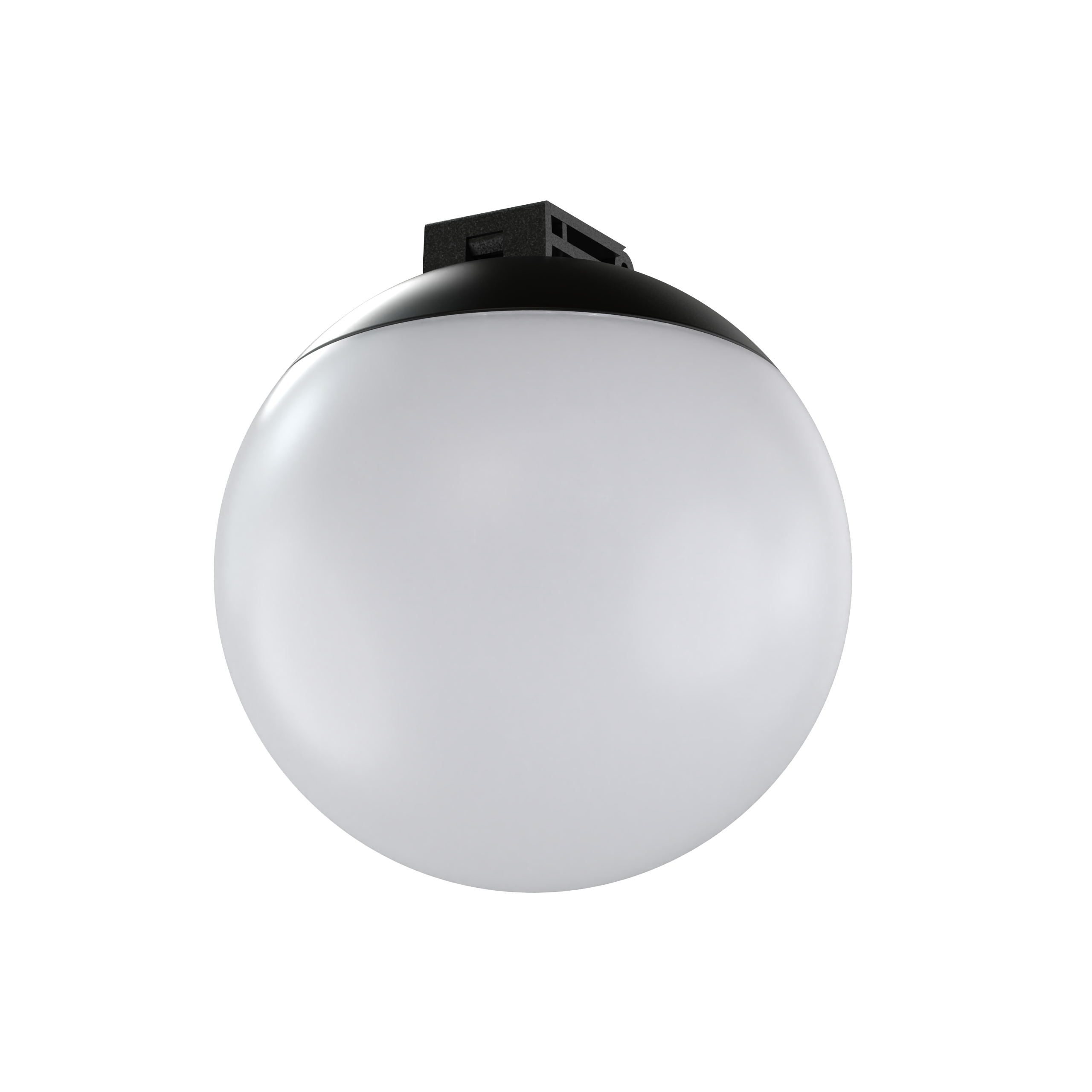

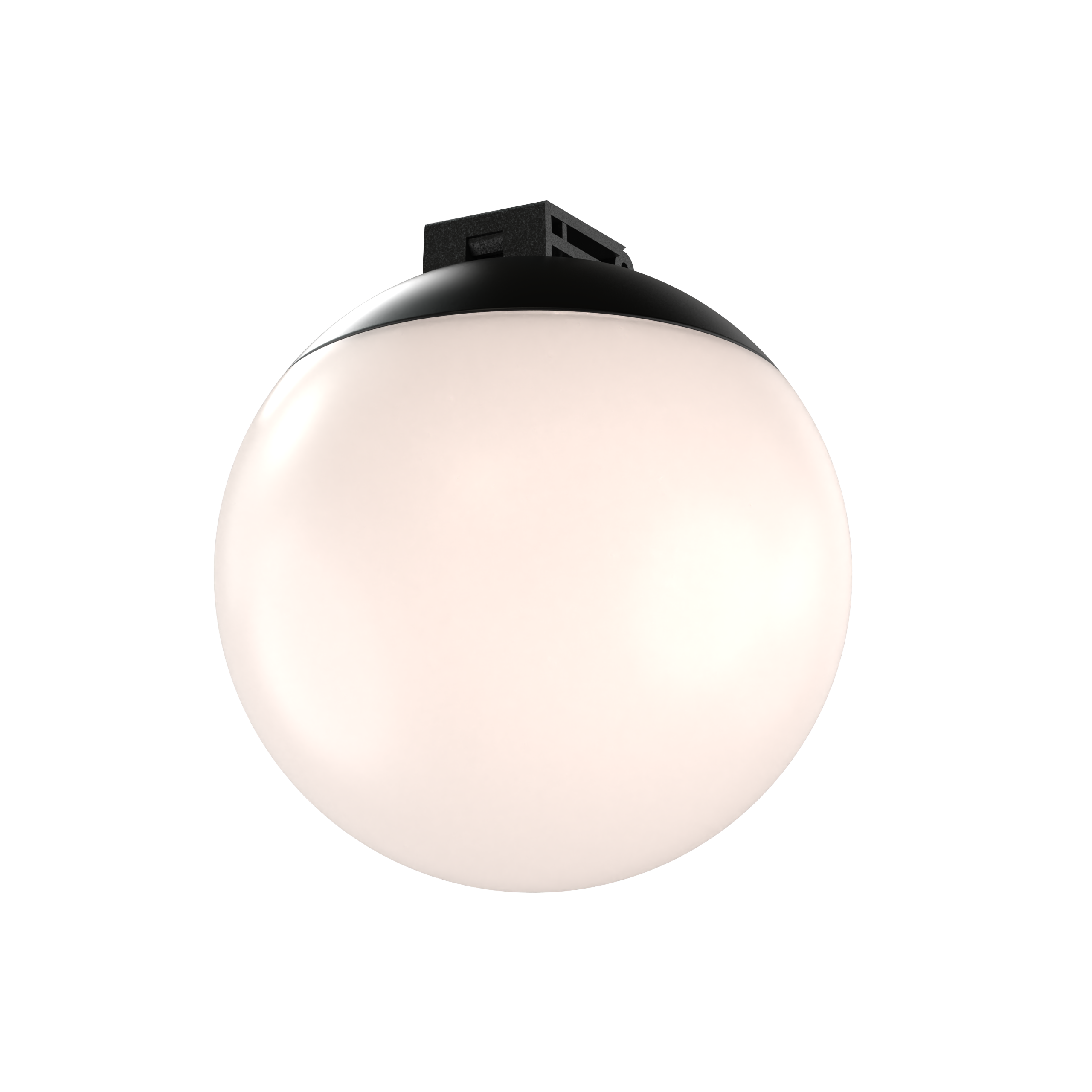

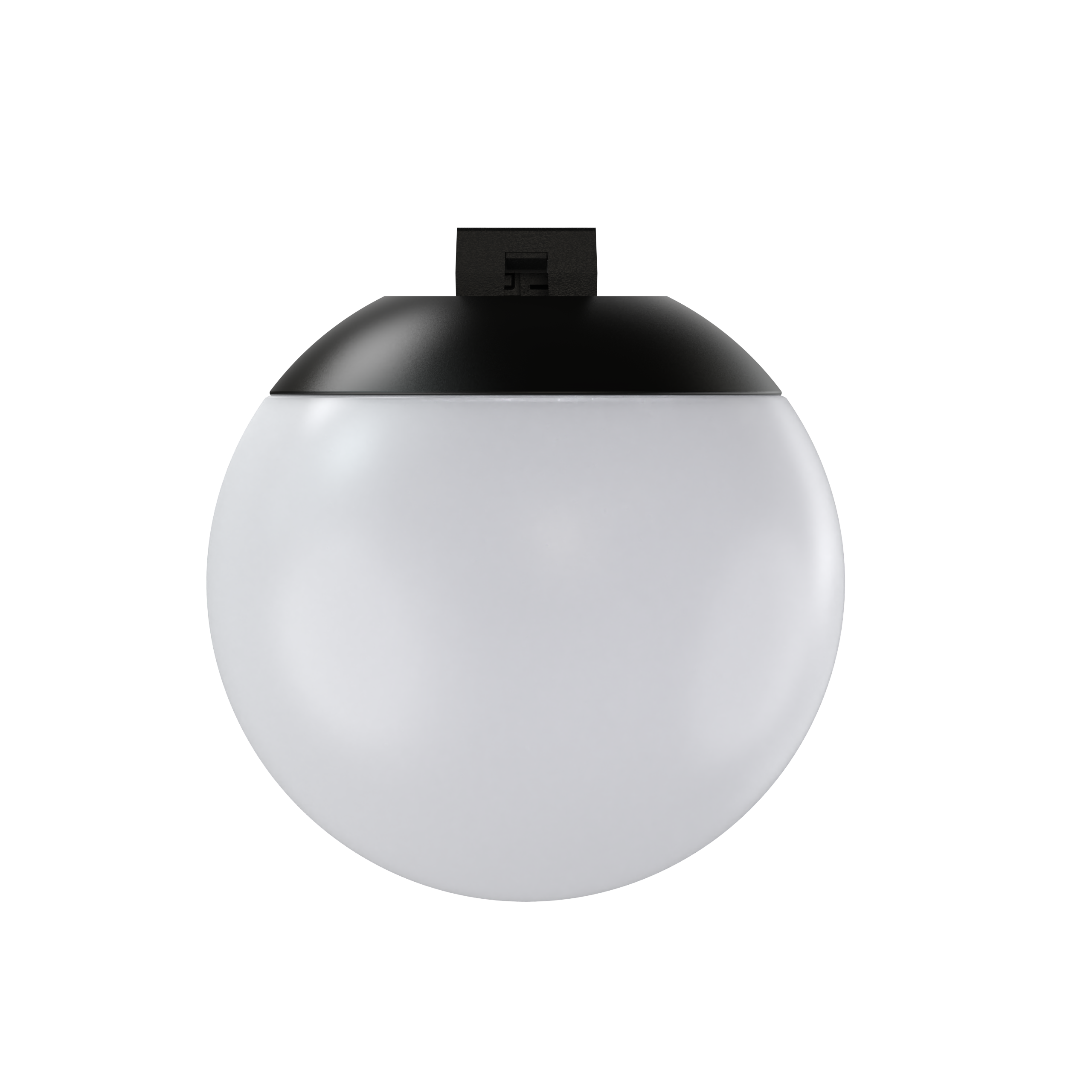

The 9-TK-HA-3K-B-LAMP is a 6W woven track ball lamp from the Halo Series, designed for low-voltage DC24V track lighting systems. The 95mm diameter globe form factor suits commercial and hospitality interiors including offices, hotels, apartments, retail spaces, and workshops. The lamp draws 6W at an efficacy of 90 lm/W, with a 3000K warm white color temperature and CRI 90 for accurate color rendering in accent and ambient applications. A 150-degree beam angle provides broad distribution. The PC housing in a black finish carries an IP20 non-waterproof rating for dry indoor environments, and Sanan LED chips are rated for 20,000 hours. The product carries a 2-year manufacturer warranty.
| Optical | |
|---|---|
| Luminous flux | 90 lm |
| Efficacy | 90 lm/W |
| CCT | 3,000 K |
| Selectable CCT | Single Color |
| CRI | 90 |
| Beam angle | 150° |
| LED Chip Type | Sanan |
| LED Lifetime | 20,000 h |
| Ordering | |
| Warranty | 2 y |
| Electrical | |
|---|---|
| Operating Voltage | 24 V |
| Wattage | 6 W |
| Mechanical | |
| Product Dimensions | 95x100mm |
| Finish | Black |
| Material | PC |
| Mounting | Woven track system |
| Environmental | |
| IP rating | IP20 |
| Environmental Rating | Non-Waterproof |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetNo reviews yet. Be the first to review this product.
Need volume pricing? Ask about wholesale
Total for 1 item
$24.00
Based on real order history
Order history does not verify compatibility. Check voltage, strip width, pins and load before selecting parts.
