9-TK-HA-3CCT-SM
6W Surface-Mount Track Spotlight, 3-CCT 2700K-6500K, CRI 90, DC24V
- 24V
- 6W
- 6W draw on DC24V track supply with 90 lm/W efficacy
- Field-selectable 3-CCT output from 2700K to 6500K
- CRI 90 Sanan LED chip for accent and display lighting
- 24-degree beam angle for directional and focal work
- Aluminum housing, Ø68 x 68 mm, black finish
- IP20 rated for dry indoor use, backed by a 2-year warranty
At a glance
- Color Temperature
- 2,700K / 6,500K
- CRI
- 90
- Efficacy
- 90 lm/W
- Beam Angle
- 24°
- Luminous Flux
- 90 lm
- Selectable CCT
- Yes
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Office and workspace accent lighting
- Hotel lobbies and guest corridors
- Retail display and supermarket aisles
- Apartment and residential interiors
- Showrooms and workshop task areas

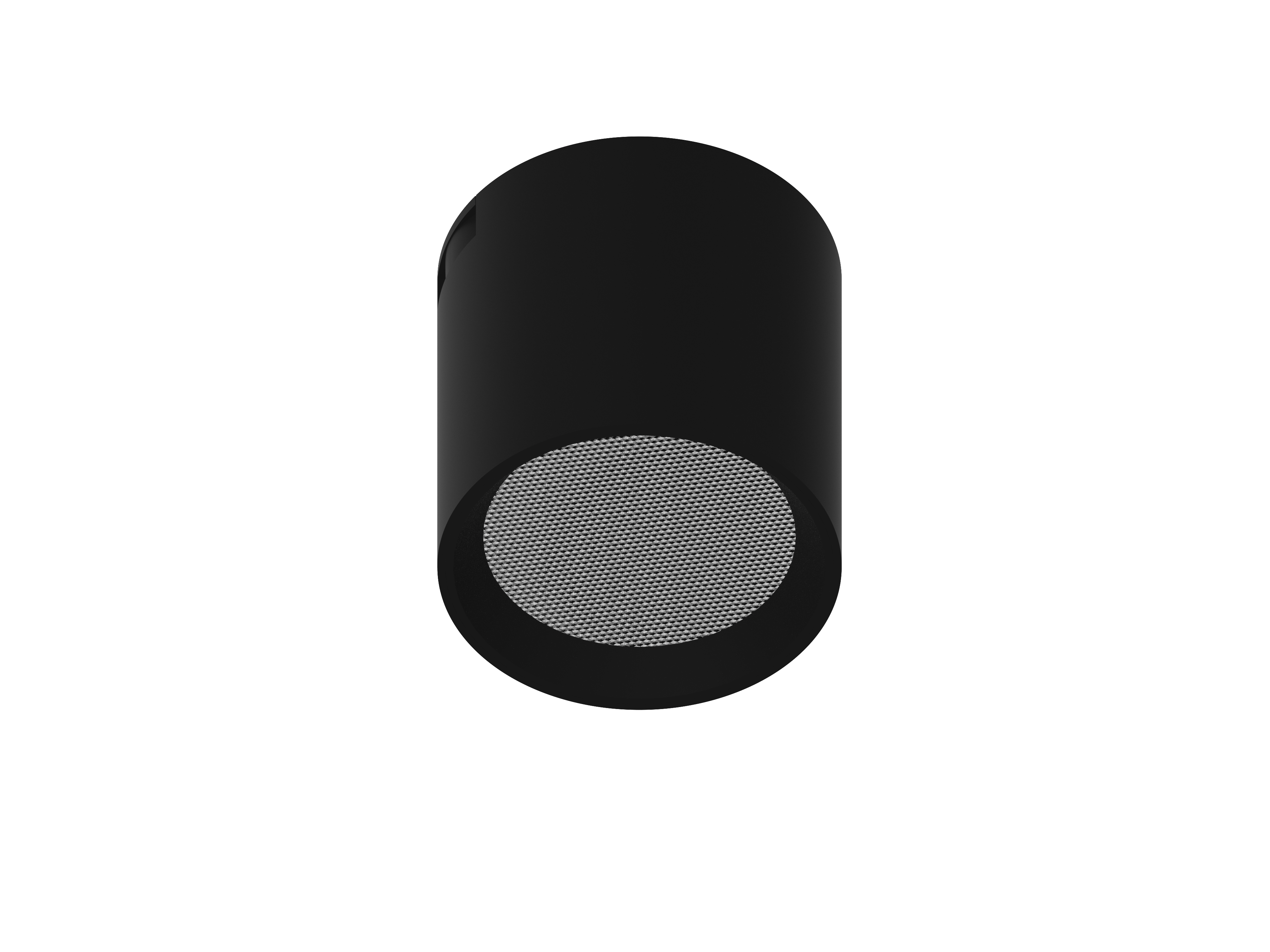

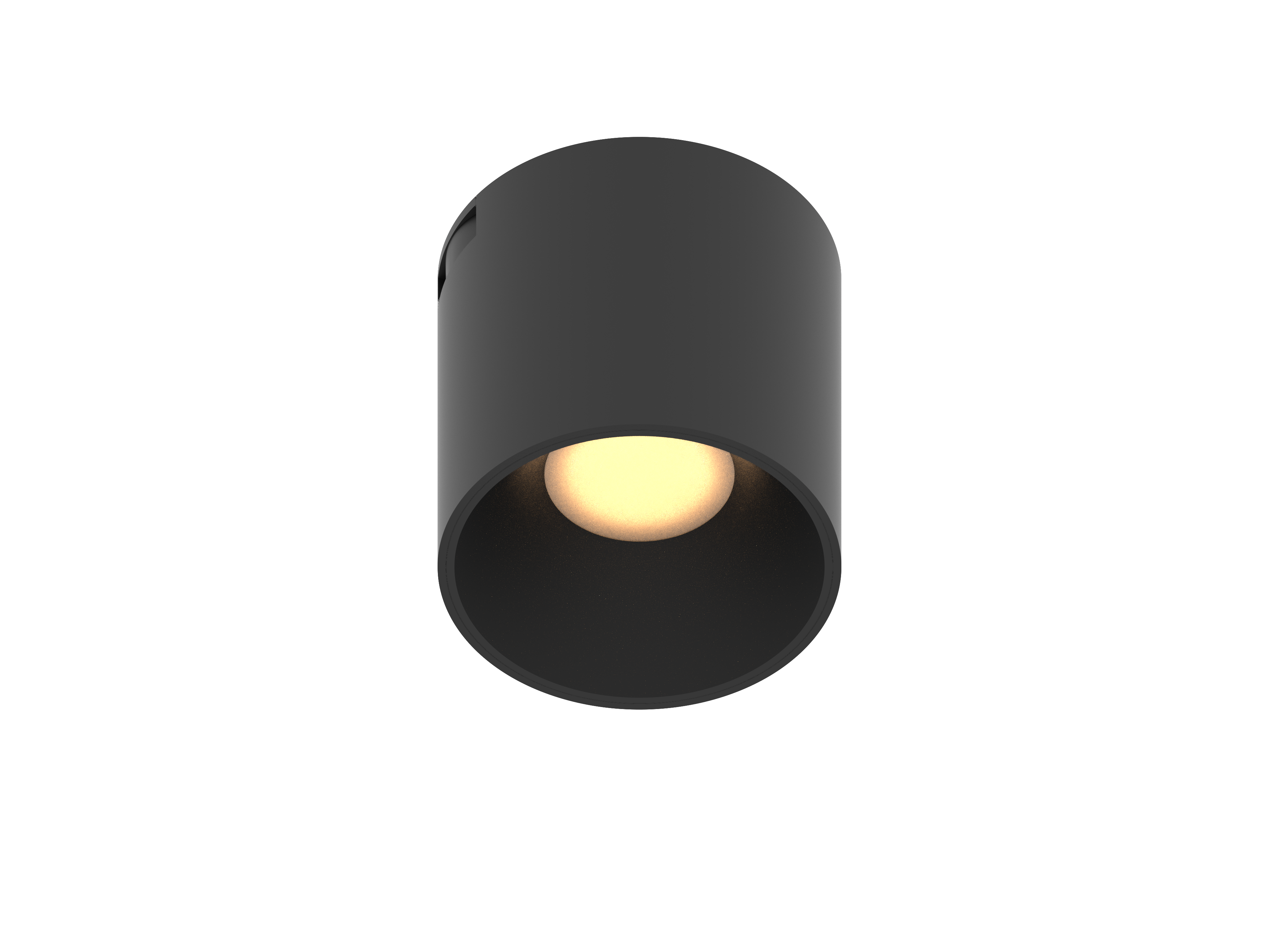

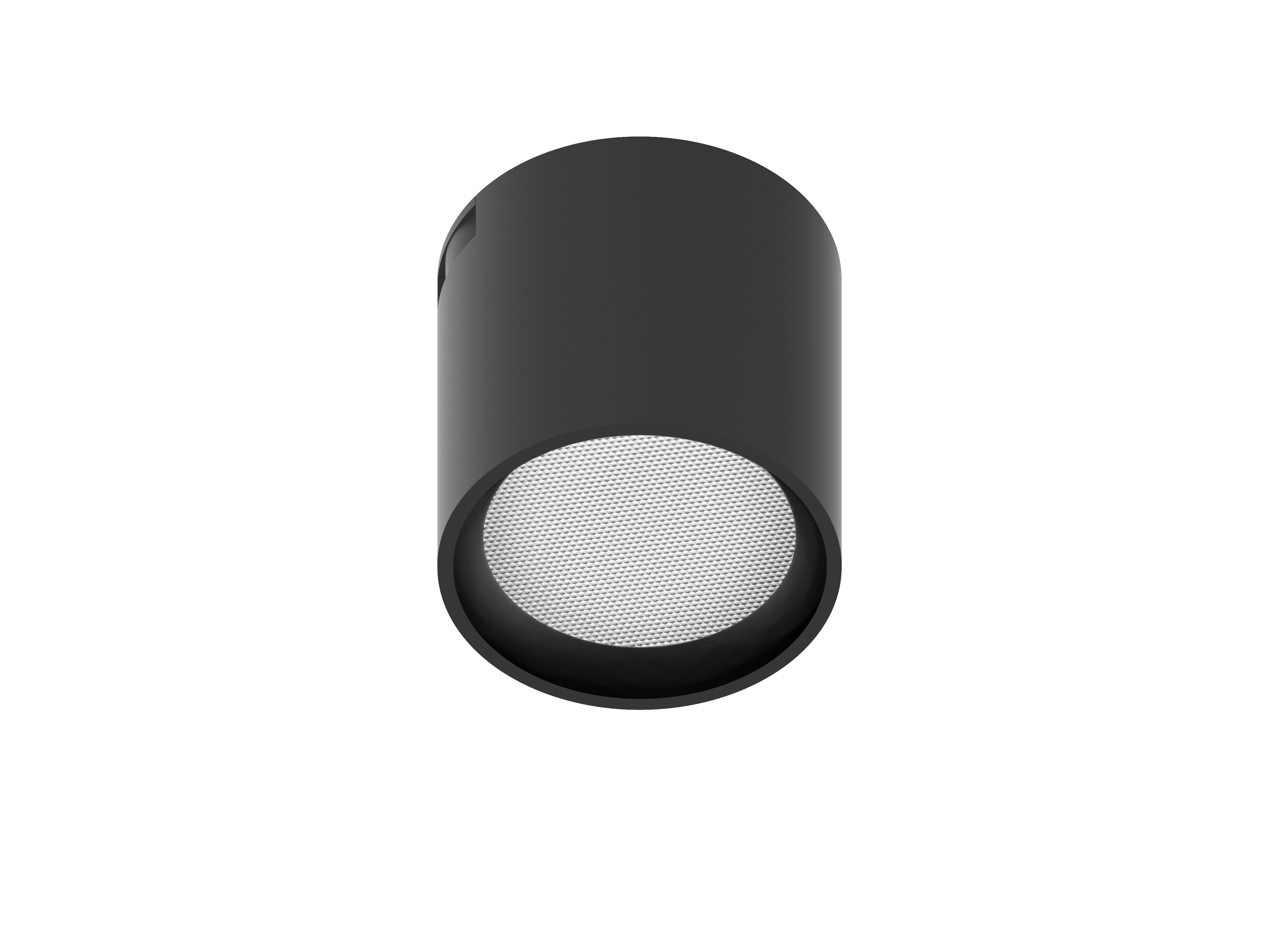

The Halo Series Woven Track System surface-mounted spotlight provides accent and directional lighting for commercial and residential interiors, including offices, hotels, apartments, supermarkets, malls and workshops. The aluminum housing measures Ø68 x 68 mm in a black finish. The fixture operates on DC24V at 6W and delivers 90 lm/W efficacy through a 24-degree beam. Color temperature is field-selectable across three settings spanning 2700K to 6500K at CRI 90, using Sanan LED chips. Rated IP20 and non-waterproof, it is intended for dry indoor locations, with a rated lifespan of 20,000 hours. The fixture is supplied with a 2-year warranty.
| Optical | |
|---|---|
| Luminous flux | 90 lm |
| Efficacy | 90 lm/W |
| CCT | 2,700K / 6,500K |
| Selectable CCT | Yes |
| CRI | 90 |
| Beam angle | 24° |
| LED Chip Type | Sanan |
| LED Lifetime | 20,000 h |
| Ordering | |
| Warranty | 2 y |
| Electrical | |
|---|---|
| Operating Voltage | 24 V |
| Wattage | 6 W |
| Mechanical | |
| Product Dimensions | 68Dx68mm |
| Finish | Black |
| Material | Aluminum |
| Mounting | Surface mounted, track |
| Environmental | |
| IP rating | IP20 |
| Environmental Rating | Non-Waterproof |
Full manufacturer specifications, dimensions and wiring detail.
