7-FS-5M-5K-24V-UL
LED Panel Sheet, 43 W/m, 5000 K, 600 LEDs/m, 24 V DC, IP20, 5 m Cuttable Roll
Select an option
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
- 24V
- 43W
- 5,000K
- 600 SMD2835 LEDs per meter on a double-layer PCB
- 3200 lm/m at 5000 K with CRI 80 and 120-degree emitting angle
- 43 W/m at 1.8 A/m on a DC 24 V constant-voltage supply
- Cuttable along marked straight, stepped and diagonal routing lines
- 3M adhesive backing or screw fixing at marked positions
- UL marking on PCB, RoHS compliant, three-year warranty
At a glance
- CRI
- 80
- IP rating
- IP20
- LED Density
- 600 LEDs/m
- Length
- 5 m
- Product Dimensions
- 500 * 24 cm
- Maximum Current
- 1.8 A
- UL Listed
- RoHS Compliant
- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Typical applications
- Backlit translucent surfaces
- Bar and hospitality interiors
- Billboards and exhibition displays
- Large-area indoor lighting
- Retail display cases

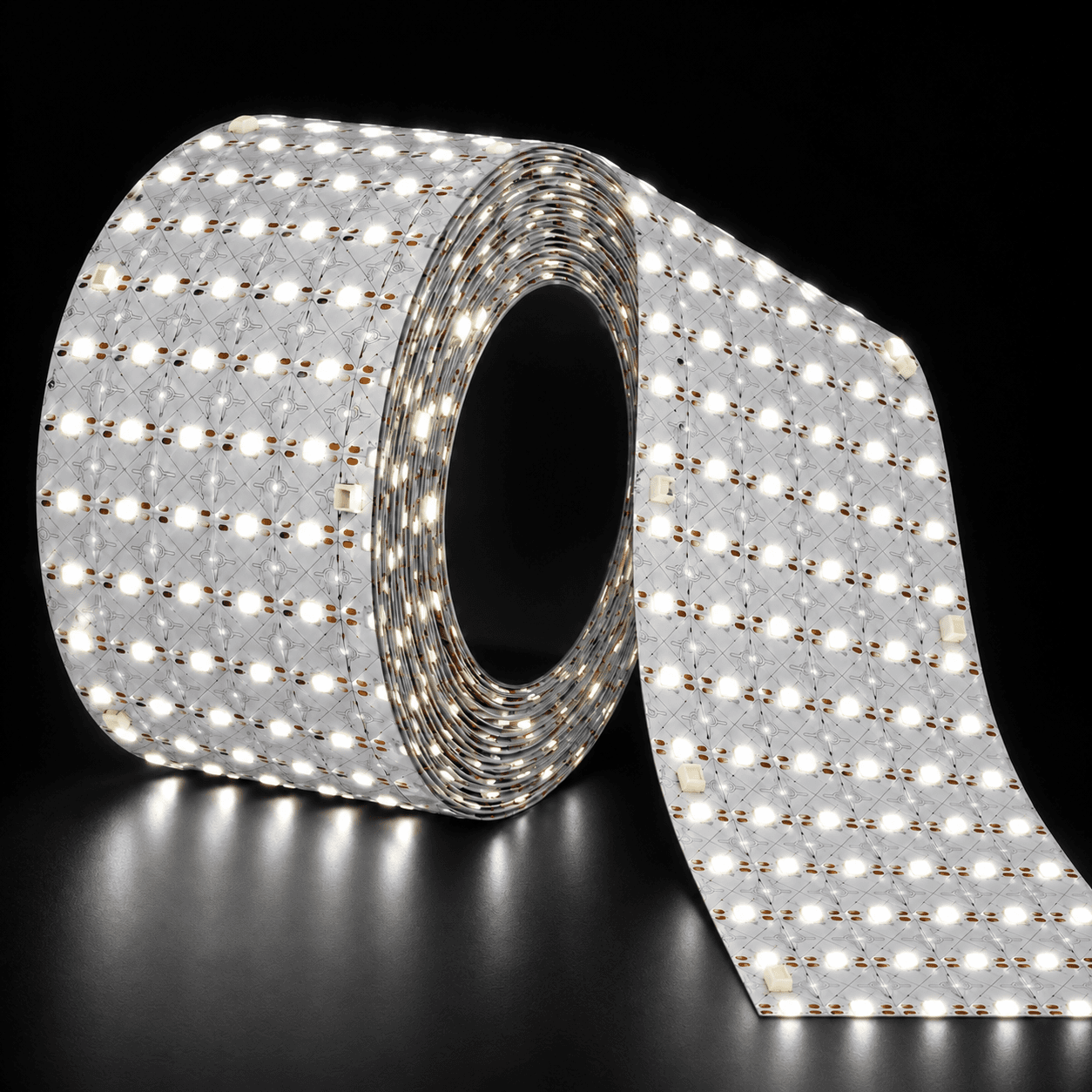

The APOLO FLEX 180 LED panel sheet is a flexible 24 V DC lighting matrix supplied in 5 m rolls measuring 500 x 24 cm. The sheet can be cut along pre-marked straight, stepped or diagonal routing lines and shaped for backlit surfaces, bar and hospitality installations, billboards and large-area indoor lighting. The SMD2835 matrix carries 600 LEDs per meter and draws 43 W/m at 1.8 A/m, producing 3200 lm/m at 5000 K with CRI 80 and a 120-degree emitting angle. Rated LED lifetime is 50,000 hours. The IP20 sheet operates from -20 C to +45 C at 40 to 70 percent RH, and mounts with 3M adhesive backing or screws at the marked positions. One connector feed supports up to 3 m of sheet; parallel connection to the supply is recommended to limit voltage drop. Double-layer PCB construction with lead-free SMT assembly, UL marking on the PCB and RoHS compliance. Three-year warranty.
| Optical | |
|---|---|
| Luminous flux | 3,200 lm |
| CCT | 5,000 K |
| CRI | 80 |
| Beam angle | 120° |
| LED Chip Type | SMD2835 |
| LED Density | 600 LEDs/m |
| LED Lifetime | 50,000 h |
| Environmental | |
| IP rating | IP20 |
| Ambient Operating Temperature | -20–45 °C(-4–113 °F) |
| Operating Humidity | 40-70% RH |
| Electrical | |
|---|---|
| Operating Voltage | 24 V |
| Wattage | 43 W |
| Maximum Current | 1.8 A |
| Mechanical | |
| Product Dimensions | 500 * 24 cm |
| Length | 5 m(16.4 ft) |
| Material | Double-layer PCB |
| Mounting | 3M adhesive tape or screw fixing |
| Ordering | |
| Warranty | 3 y |
Full manufacturer specifications, dimensions and wiring detail.
