7-FS-5M-3K-24V-UL
LED Panel Sheet, 43 W/m, 600 LEDs/m, 24 V DC, 3000 K, IP20, 5 m Cuttable Roll
Select an option
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
- 24V
- 43W
- 3,000K
- SMD2835 emitters populated at 600 LEDs/m on a double-layer PCB
- 3200 lm/m at 3000 K with CRI 80 and a 120-degree emitting angle
- 43 W/m draw at 1.8 A/m from a 24 V DC constant-voltage supply
- Cuttable along pre-marked straight, stepped and diagonal routing lines
- IP20 rated for -20 C to +45 C at 40-70% RH ambient conditions
- UL and RoHS compliant with 50,000-hour LED life and 3-year warranty
At a glance
- CRI
- 80
- IP rating
- IP20
- LED Density
- 600 LEDs/m
- Length
- 5 m
- Product Dimensions
- 500 * 24 cm
- Maximum Current
- 1.8 A
- UL Listed
- RoHS Compliant
- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Typical applications
- Backlit translucent surfaces and signage faces
- Bar and hospitality millwork
- Billboards and exhibition displays
- Large-area indoor lighting coves
- Custom-shaped decorative light panels

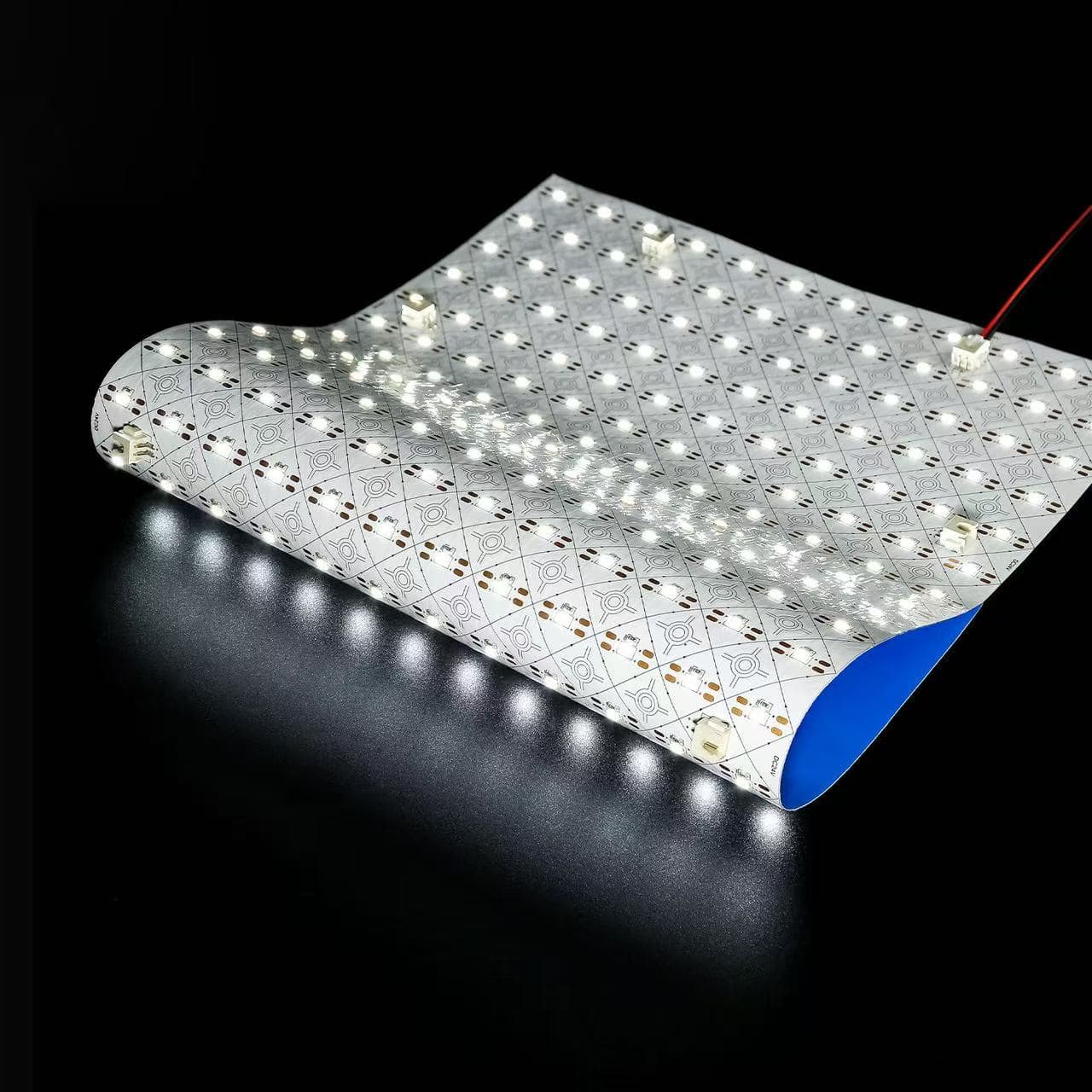

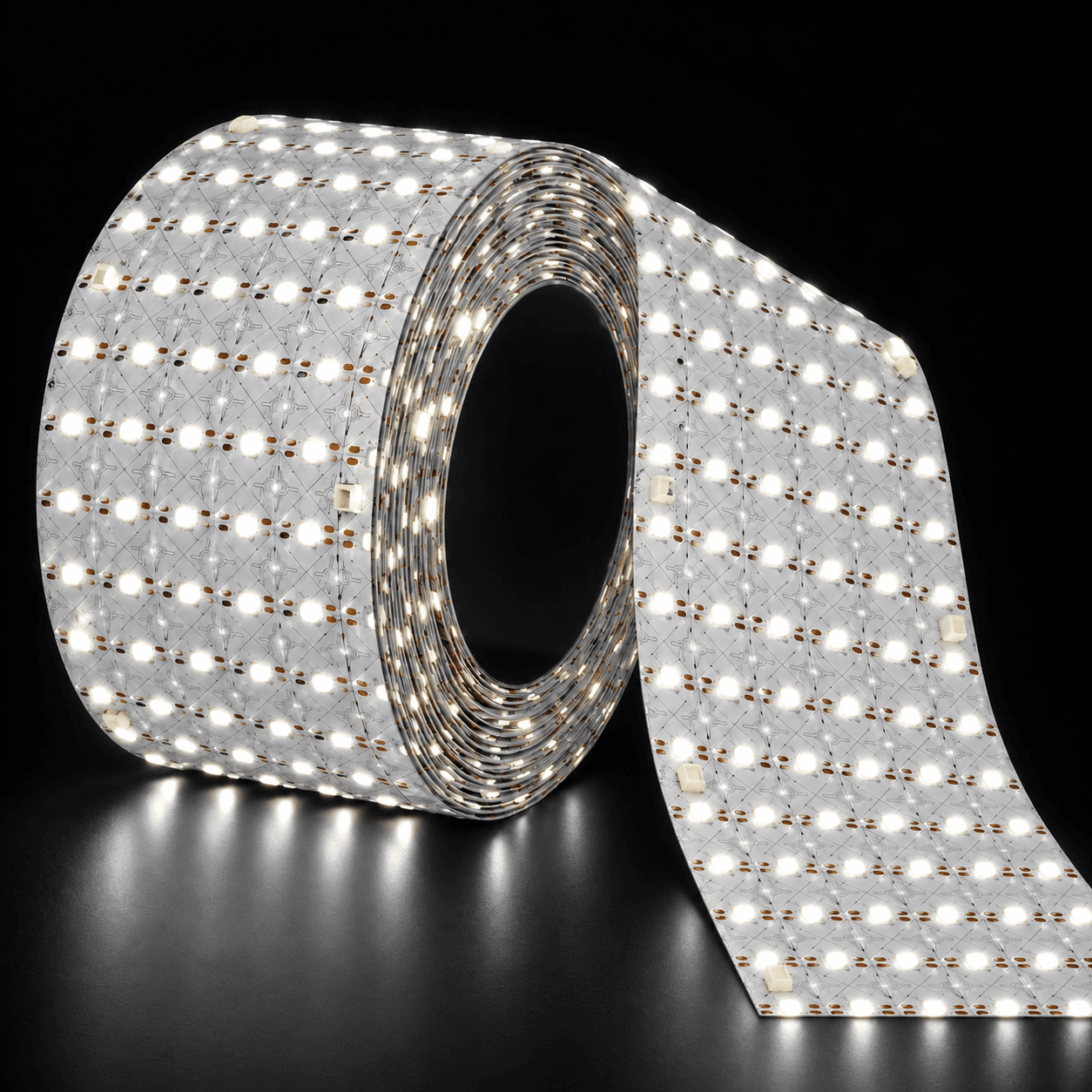

The APOLO FLEX 180 LED panel sheet is a flexible 24 V DC lighting matrix supplied on a 5 m roll measuring 500 x 24 cm. The sheet is cuttable along pre-marked straight, stepped and diagonal routing lines, allowing custom shapes for backlit surfaces, bar and hospitality millwork, billboards and large-area indoor lighting. SMD2835 emitters are populated at 600 LEDs/m and draw 43 W/m at 1.8 A/m, producing 3200 lm/m at 3000 K with CRI 80 and a 120-degree emitting angle. Construction uses a double-layer PCB with 3M adhesive backing. Rated IP20 for operation from -20 C to +45 C at 40-70% RH, with a 50,000-hour LED life. One connector feed supports up to 3 m of sheet; parallel wiring is recommended to limit voltage drop. UL and RoHS compliant, with a UL logo marked on the PCB. Backed by a 3-year warranty.
| Optical | |
|---|---|
| Luminous flux | 3,200 lm |
| CCT | 3,000 K |
| CRI | 80 |
| Beam angle | 120° |
| LED Chip Type | SMD2835 |
| LED Density | 600 LEDs/m |
| LED Lifetime | 50,000 h |
| Ordering | |
| Warranty | 3 y |
| Electrical | |
|---|---|
| Operating Voltage | 24 V |
| Wattage | 43 W |
| Maximum Current | 1.8 A |
| Mechanical | |
| Product Dimensions | 500 * 24 cm |
| Length | 5 m(16.4 ft) |
| Environmental | |
| IP rating | IP20 |
| Ambient Operating Temperature | -20–45 °C(-4–113 °F) |
| Operating Humidity | 40-70% RH |
Full manufacturer specifications, dimensions and wiring detail.
