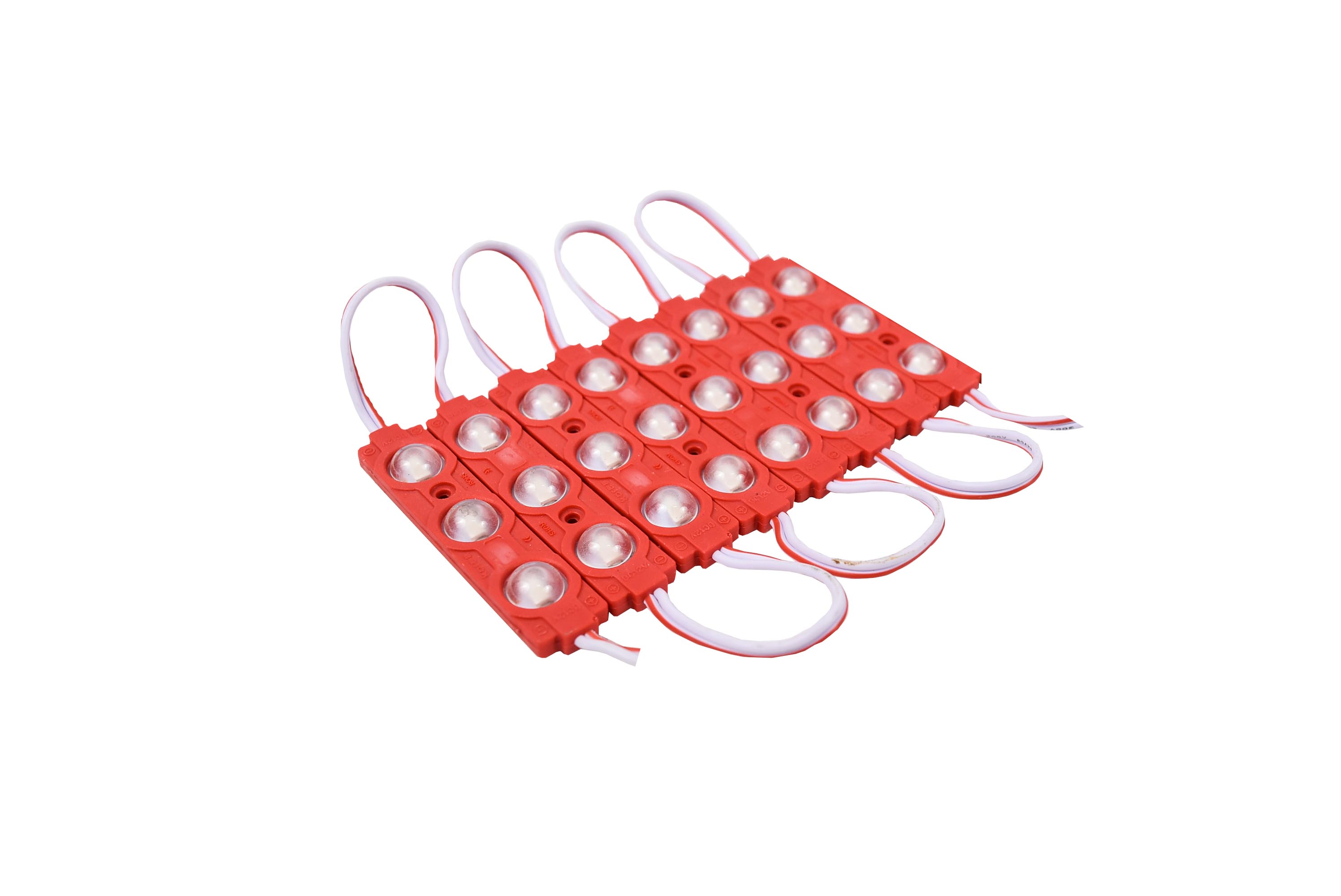

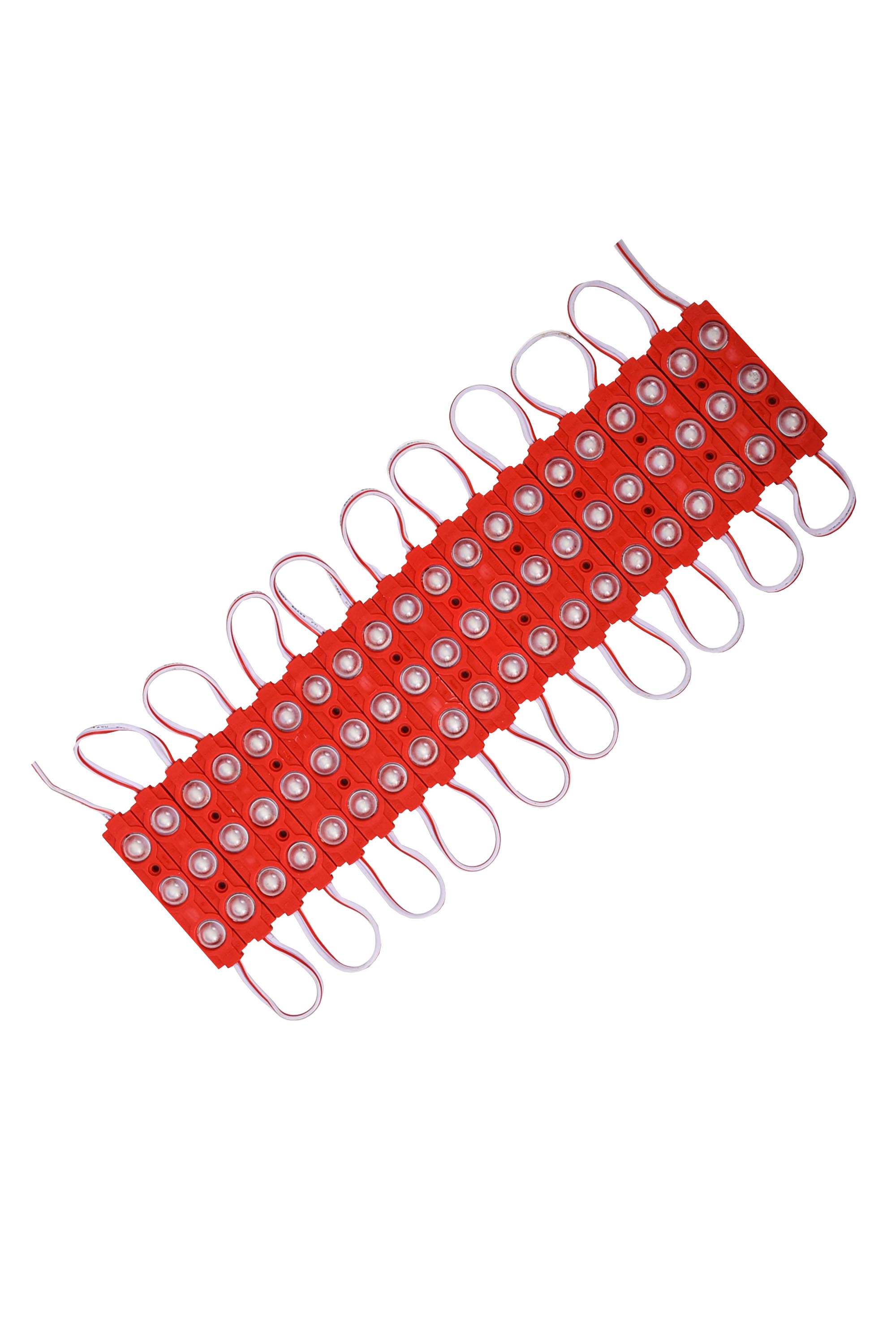

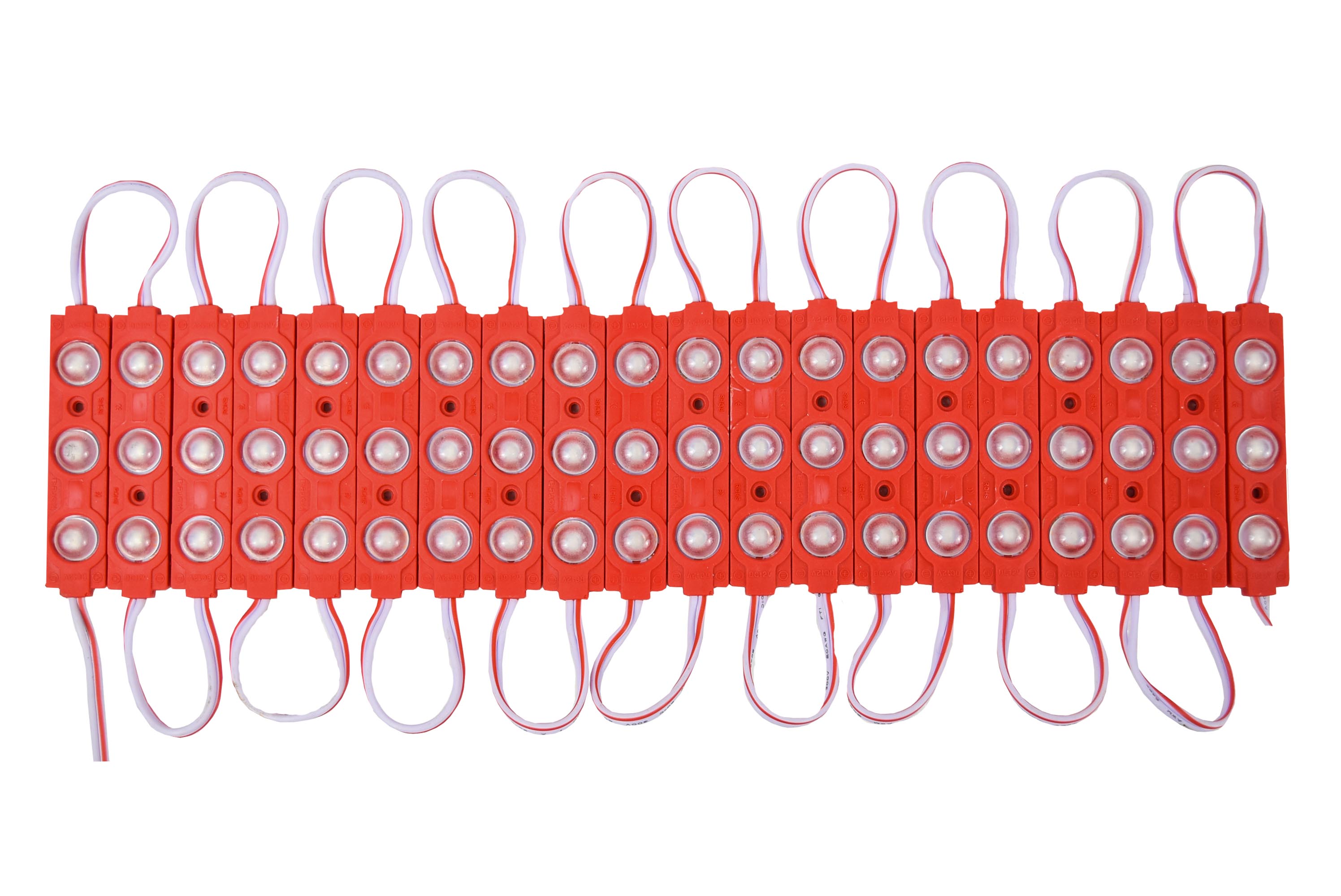

Red SMD5730 LED Sign Module, 12V 0.72W, IP67, 20-Module Set

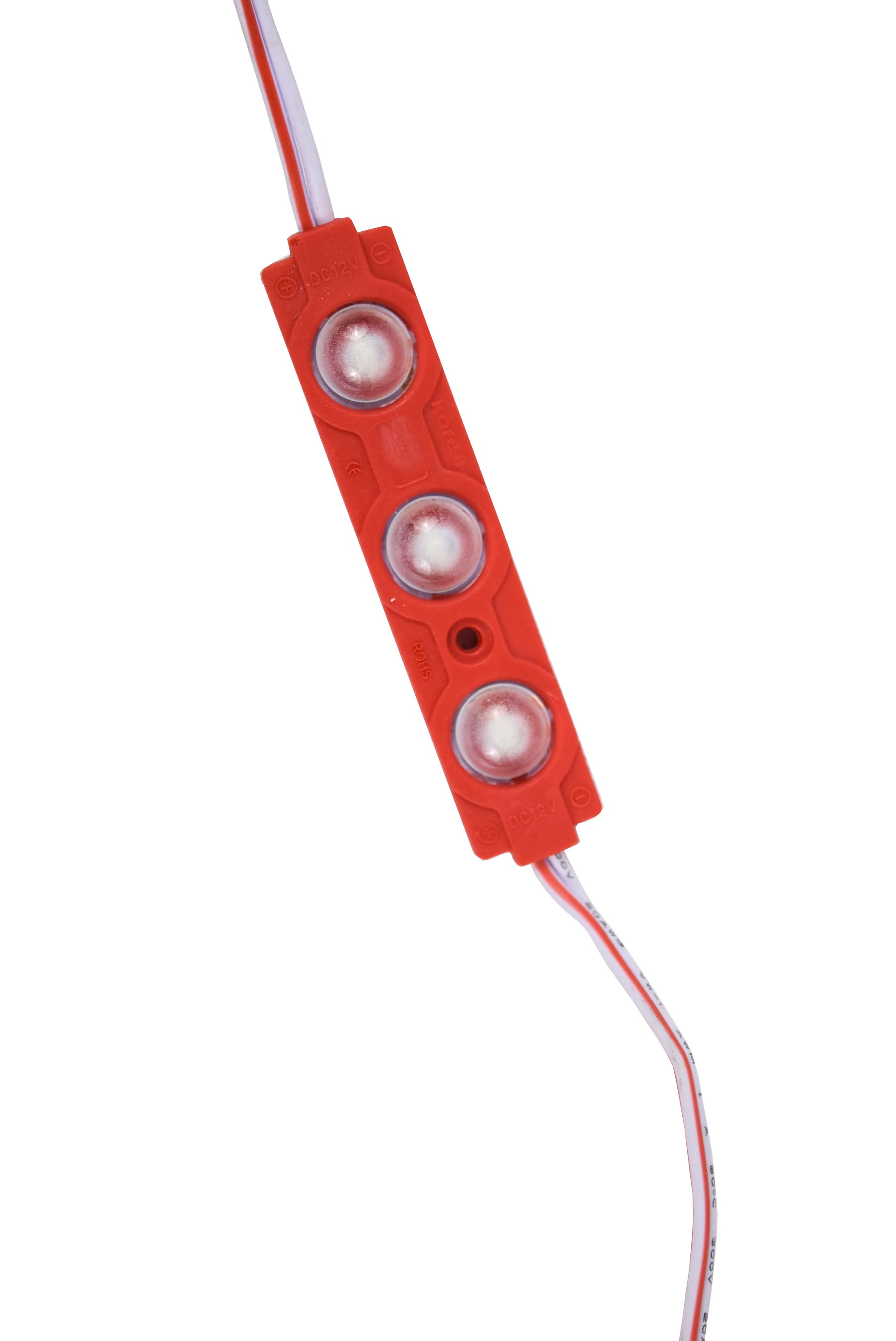

The 7-57x3R-AK is a red SMD5730 LED module designed for channel letter illumination, sign backlighting, and accent lighting in both indoor and outdoor installations. The PVC-encased module operates at 12V DC and draws 60mA, making it compatible with standard low-voltage LED drivers and sign cabinet power supplies. Each module consumes 0.72W and delivers 110 lumens in a red output, housed in a compact 78×15×5mm form factor. The IP67-rated enclosure provides protection against dust ingress and temporary water immersion, supporting exterior signage and exposed installation environments. Rated LED lifetime is 50,000 hours with a 180° beam angle for wide light distribution. The module carries CE and RoHS certification and is backed by a 1-year warranty.
