5-LWU4818
Aluminum LED Channel Profile, Surface Mount, 48mm x 18mm, 3m Length
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
Ordered by 1 customer in the last 24 months
- Extruded 6063-T5 aluminum body with anodized surface treatment

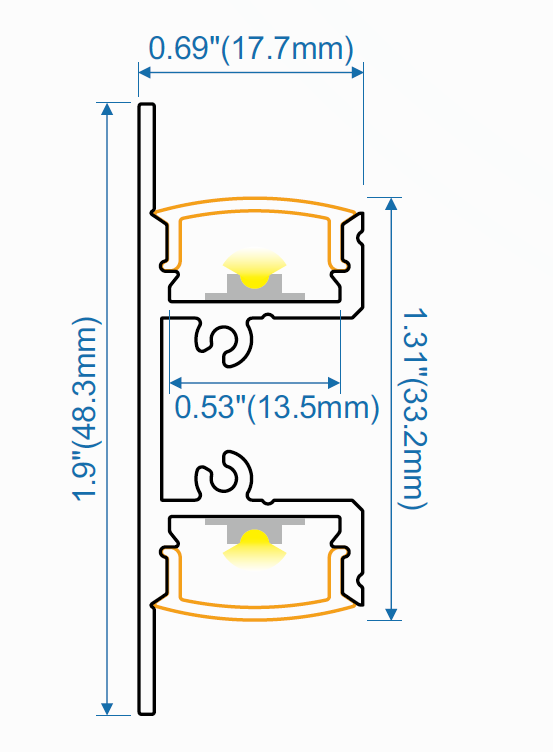

- 48mm x 18mm cross section with 13.5mm inner channel width
- Accepts LED flexible strips up to 12mm in width
- PC diffuser transmits 86% of light at medium coefficient diffusion
- Rated for operating temperatures from -50 C to 100 C
- Push-in diffuser assembly and 1-year warranty
At a glance
- Product Dimensions
- 48x18mm
- Length
- 3 m
- Material
- 6063-T5 aluminum profile with PC diffuser
- Warranty
- 1 y
- Strip Width
- 12 mm
- Finish
- Silver anodized, black anodized, or white painted
Some technical details are being checked. Confirm requirements before choosing connected components.
Datasheet (PDF)- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Retail and display casework
- Architectural cove and ceiling detailing
- Commercial office linear lighting runs
- Signage and lightbox housings
- Millwork and cabinetry accent lighting
A 48mm x 18mm anodized aluminum LED channel profile for surface mount installation where a wide-body housing is required. Constructed from 6063-T5 aluminum with a high-standard anodized surface, it provides heat sinking and physical protection for LED flexible strips up to 12mm wide. Finishes include silver anodized, black anodized, and white painted. The 13.5mm inner width accepts push-in PC diffusers in transparent, milky (opal), or black. The milky diffuser transmits 86% of the light with medium coefficient diffusion for uniform brightness and reduced LED hot spots. Rated for operation from -50 C to 100 C, with a rated LED service life of 50,000 hours. Supplied with a 1-year warranty.
| Mechanical | |
|---|---|
| Product Dimensions | 48x18mm |
| Length | 3 m(9.8 ft) |
| Strip Width | 12 mm(0.47 in) |
| Finish | Silver anodized, black anodized, or white painted |
| Material | 6063-T5 aluminum profile with PC diffuser |
| Mounting | Surface mount |
| Environmental | |
|---|---|
| Ambient Operating Temperature | -50 °C(-58 °F) |
| Ordering | |
| Warranty | 1 y |
