5-LDU7626A
Drywall Trimless Aluminum LED Profile, 26mm x 76mm, 6063-T5, 6.6 ft
Ordered by 4 customers in the last 24 months
- 6063-T5 aluminum extrusion with high-standard anodized surface treatment

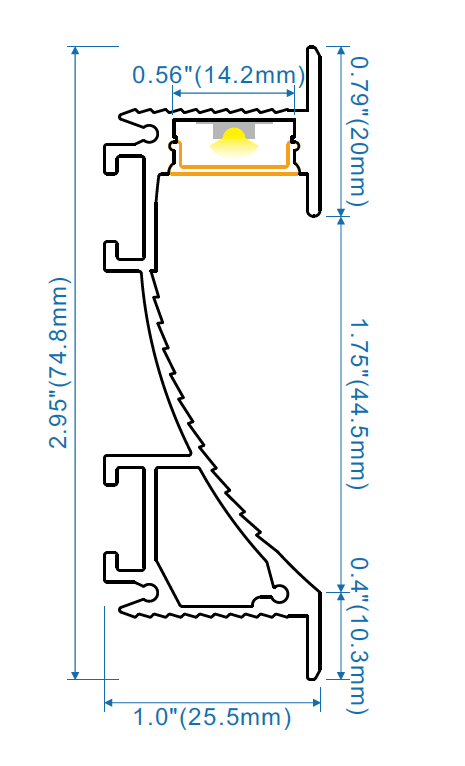

- 25.5mm x 74.8mm cross-section for trimless drywall recessing
- Accepts flexible LED strips up to 14mm in width
- Push-in milky PC diffuser rated at 86% light transmission
- Operating temperature range of -50°C to 100°C
- 50,000-hour LED service life with 1-year warranty
At a glance
- LED Lifetime
- 50,000 h
- Product Dimensions
- 75x26mm
- Length
- 2 m
- Strip Width
- 14 mm
- Finish
- Silver anodized, white painted, or black anodized
- Material
- 6063-T5 aluminum
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Drywall ceiling cove lighting
- Retail interior linear accent runs
- Hospitality corridors and lobbies
- Office reception walls
- Residential recessed wall lighting
The 5-LDU7626A is a drywall trimless aluminum LED profile designed for recessed, flush-mount linear lighting installations where a clean, borderless finish is required. The 25.5mm wide x 74.8mm tall cross-section integrates directly into drywall construction to conceal the LED strip and diffuser assembly within the wall plane. Constructed from 6063-T5 aluminum with a high-standard anodized surface treatment, the extrusion serves as both heat sink and physical protection for flexible LED strips up to 14mm in width. The push-in milky PC diffuser provides 86% light transmission with medium coefficient diffusion for uniform brightness. Operating range is -50°C to 100°C, with silver anodized, white painted, and black anodized finishes and transparent, milky, or black diffusers. Supplied in a 6.6 ft (2m) length, with lengths available to 13.2 ft (4m). Rated for 50,000 hours of LED service life and covered by a 1-year warranty.
| Optical | |
|---|---|
| LED Lifetime | 50,000 h |
| Environmental | |
| Ambient Operating Temperature | -50 °C(-58 °F) |
| Ordering | |
| Warranty | 1 y |
| Mechanical | |
|---|---|
| Product Dimensions | 75x26mm |
| Length | 2 m(6.6 ft) |
| Strip Width | 14 mm(0.55 in) |
| Finish | Silver anodized, white painted, or black anodized |
| Material | 6063-T5 aluminum |
| Mounting | Recessed drywall, trimless |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetCustomer reviews
