5-LC1818
Corner Mount Aluminum LED Channel Profile, 18.7×18.7mm, 12mm Max Strip Width, 12V
- 12V
- 14.4W
Ordered by 35 customers in the last 24 months
- 6063-T5 aluminum extrusion with anodized surface finish
- 18.7 x 18.7mm corner profile accepting strips up to 12mm wide
- 14.4W per meter at 1.2A on 12V DC input
- 1555 lumens per meter at 6500K with CRI 80
- 50mm minimum cutting unit at three LEDs per segment
- Rated LED life exceeding 50,000 hours
At a glance
- Color Temperature
- 6,500 K
- CRI
- 80
- Efficacy
- 107.99 lm/W
- Luminous Flux
- 1,555 lm
- LEDs per Segment
- 3
- LED Lifetime
- 50,000 h
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing?
Typical applications
- Interior corner cove lighting
- Retail display casework
- Cabinet and millwork accent lighting
- Stairwell and corridor perimeter runs
- Architectural ceiling-to-wall transitions
The 5-LC1818 is a corner-mount aluminum channel profile with an 18.7 x 18.7mm cross-section, used to house LED flexible strip lighting along interior corners in commercial and residential installations. It is machined from 6063-T5 aluminum with an anodized surface and accepts strips up to 12mm wide, functioning as both heat sink and physical protection for the strip. Paired with the BF2835120L1 12V DC strip, the assembly draws 1.2A per meter for 14.4W and 1555 lumens per meter at 6500K with CRI 80. Minimum cutting unit is 50mm at three LEDs per segment, and rated LED life exceeds 50,000 hours. Strip protection of IP20 or IP65 is available by strip selection. Supplied with a one-year warranty.
| Optical | |
|---|---|
| Luminous flux | 1,555 lm |
| Efficacy | 107.99 lm/W |
| CCT | 6,500 K |
| CRI | 80 |
| LEDs per Segment | 3 |
| LED Lifetime | 50,000 h |
| Environmental | |
| IP rating | IP20 or IP65 by strip selection |
| Ordering | |
| Warranty | 1 y |
| Electrical | |
|---|---|
| Operating Voltage | 12 V |
| Wattage | 14.4 W |
| Maximum Current | 1.2 A |
| Mechanical | |
| Product Dimensions | 18.7x18.7mm |
| Length | 2.5 m(8.2 ft) |
| Strip Width | 12 mm(0.47 in) |
| Minimum Cut Length | 50 mm(1.97 in) |
| Finish | Silver anodized standard; white painted or black anodized |
| Material | 6063-T5 aluminum |

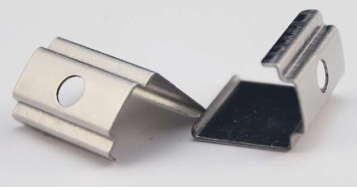

| Mounting | Corner mount with mounting clip |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetCustomer reviews
