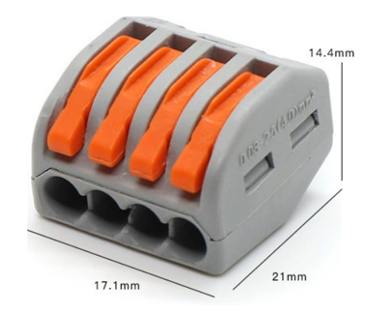

E-CON-P-4P
Conector de presión 4 puertos, rango de cable #18-12AWG (0.08-2.5mm2) Largo de descubierto: 12-13mm, Voltaje máximo: 250V, máx 32A. Temp. ambiente: -40?F~221?F
- Four ports accept #18-12 AWG (0.08-2.5mm2) solid or stranded wire
- Rated 250V, 32A maximum for branch circuit and fixture wiring
- Grey PA housing rated -40°F to 221°F ambient service
- Brass contacts with steel spring for press-on retention
- Specified strip length of 12-13mm for consistent termination
De un vistazo
- LED Lifetime
- 50,000 h
- Operating Voltage
- 250 V
- Maximum Current
- 32 A
- Wire Gauge
- 12 AWG
- Finish
- Grey
- Material
- PA housing, brass contacts, steel spring
- Envío gratis en pedidos de más de $300
- Retiro el mismo día en Doral
- Envíos desde Miami, FL
- Garantía del fabricante incluida
¿Necesita precio por volumen?
Aplicaciones típicas
- Commercial branch circuit splicing
- Luminaire and fixture wiring
- Panel and junction box feeds
- Outdoor and unconditioned equipment enclosures
- Industrial control and machine wiring
The 4-port press-on wire connector provides tool-free electrical connections in commercial and industrial wiring. It accommodates wire sizes from #18 to #12 AWG (0.08-2.5mm2) and suits branch circuit splicing, fixture wiring, and panel feed applications where a compact termination is required. The connector is rated 250V and 32A with a wire strip length of 12-13mm. The grey PA housing is rated for ambient service from -40°F to 221°F, covering indoor and outdoor installations subject to temperature extremes. Metal contact components are brass with a steel spring mechanism.
| Óptica | |
|---|---|
| Vida útil del LED | 50,000 h |
| Mecánica | |
| Acabado | Grey |
| Material | PA housing, brass contacts, steel spring |
| Eléctrica | |
|---|---|
| Voltaje de operación | 250 V |
| Corriente máxima | 32 A |
| Calibre del cable | 12 AWG |
| Ambiental | |
| Temperatura ambiente de operación | -40–105 °C(-40–221 °F) |
Especificaciones completas del fabricante, dimensiones y detalle de conexión.
