Conector de presión de 5 puertos, rango de cable #18-12AWG (0.08-2.5mm2) Largo de pelado: 12-13mm, Voltaje máximo: 250V, máx 32A. Temp Amb: -40?F~221?F

USD 2.84

Disponible — 510 disponibles

5-port design for terminating multiple conductors at one point
Accepts wire sizes from #18 to #12 AWG (0.08-2.5mm2)
Rated for 250V and 32A maximum load
Operating temperature range from -40°F to 221°F
Grey housing finish
Rated service life of 50,000 hours

De un vistazo

LED Lifetime: 50,000 h
Operating Voltage: 250 V
Maximum Current: 32 A
Wire Gauge: 12 AWG
Finish: Grey
Ambient Operating Temperature: -40–105 °C

Ficha técnica (PDF)

Envío gratis en pedidos de más de $300
Retiro el mismo día en Doral
Envíos desde Miami, FL
Garantía del fabricante incluida

¿Necesita precio por volumen? Consultar mayoreo

Aplicaciones típicas

Branch circuit splicing
Junction box wiring
Fixture wiring
Industrial control panels
Panel wiring terminations

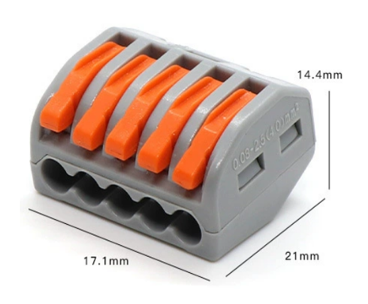

The E-CON-P-5P is a 5-port press-on wire connector designed for fast, tool-free electrical connections in commercial and industrial wiring applications. It accommodates wire sizes from #18 to #12 AWG and requires a strip length of 12–13 mm, making it suitable for branch circuit splicing, junction work, and fixture wiring where multiple conductors must be terminated at a single point. The connector is rated for 250V and 32A, with an operating temperature range of -40°F to 221°F. The housing finish is grey, consistent with standard press-on connector construction, and the unit carries a 50,000-hour service life rating.
