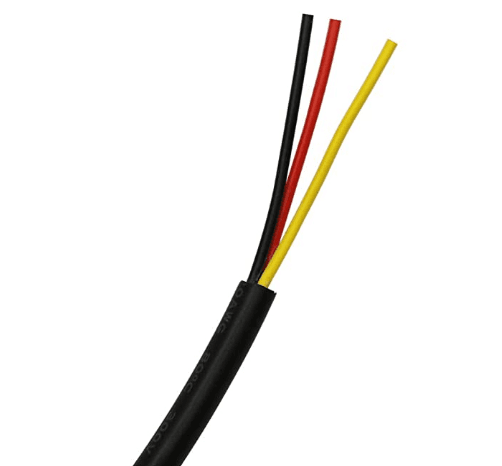

CA3J-20
20 AWG 3-Conductor PVC-Jacketed Cable, UL2464 300 V, 660 ft (200 m) Roll
- UL2464 style construction, VW-1 flame rating
- Tinned copper conductors stranded 21/0.16 mm, 0.42 mm² area
- PVC insulation in red, black and yellow for circuit identification
- Black PVC jacket, 1.02 mm average thickness, 0.86 mm minimum
- 5.1 mm overall diameter, supplied in 660 ft (200 m) rolls
- RoHS compliant and backed by a 1-year warranty
- Retiro el mismo día en Doral
- Envíos desde Miami, FL
- Garantía del fabricante incluida
The CA3J-20 is a 20 AWG, 3-conductor cable with a PVC jacket, supplied in 660 ft (200 m) rolls. It is suited for power and signal wiring in residential and commercial installations, including LED lighting systems and general low-voltage runs. Pricing is structured by length, allowing procurement of only the quantity required for a given project. Conductors are tinned copper, stranded 21/0.16 mm to a 0.42 mm² cross-section, with PVC insulation in red, black and yellow. The black PVC jacket averages 1.02 mm thick over a 5.1 mm overall diameter, and the cable is rated 300 V at 80 degrees C. Built to UL2464 style with VW-1 flame rating and RoHS compliance. Covered by a 1-year warranty.
