5-LW3535A-H-SC
Recessed Mount LED Aluminum Channel Profile, 35mm x 35mm, 6063-T5 with Spring Clip
- 6063-T5 aluminum extrusion with anodized silver surface
- 50mm overall width with 26mm internal channel opening

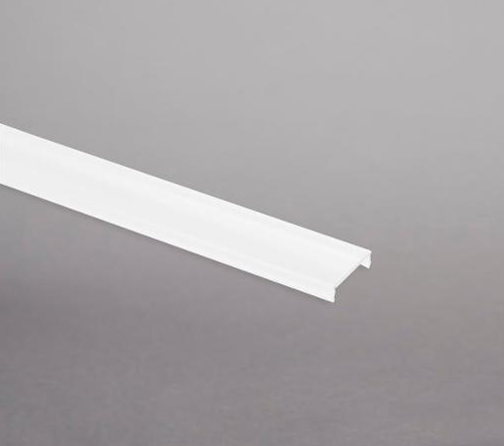

- Milky PC diffuser transmitting 86% of light output
- Push-in diffuser assembly, also offered transparent or black
- Rated for operating temperatures of -50°C to 100°C
- Stocked in 1m, 2m, 2.5m, 3m and 4m (13.2 ft) lengths
- Retiro el mismo día en Doral
- Envíos desde Miami, FL
- Garantía del fabricante incluida
The 5-LW3535A-H-SC is a recessed-mount aluminum channel profile that houses and protects LED flexible strip lighting in commercial and architectural installations. The extrusion measures 50mm across the mounting flange by 35mm deep, with a 26mm internal channel that accepts LED flexible strip up to 26mm wide. Spring clips secure the profile within the ceiling or millwork cutout. The body is extruded from 6063-T5 aluminum with a high-standard anodized silver surface, serving as both heat sink and physical protection for the strip. Silver anodized, white painted and black anodized finishes are offered, and lengths run 1m, 2m, 2.5m, 3m and 4m (13.2 ft). The milky PC diffuser transmits 86% of light output at medium coefficient diffusion for uniform brightness, installs by push-in assembly, and is also offered in transparent and black. Rated for service from -50°C to 100°C. Covered by a 1-year warranty.
