M-Z-CON3D-SP-CA10mm
Strip-to-Power Connector, 10 mm 3-Pin COB Tape, IP20, 5-24 V DC, 3.5 A, 150 mm 22 AWG Lead
Select an option
- 24V
Ordered by 146 customers in the last 24 months
- Fits 10 mm three-pin COB tape with 0.25-0.35 mm PCB thickness
- 3.5 A maximum pin current at 30 C ambient with 22 AWG wire
- 150 mm flat stranded lead, red-white-yellow color coding
- Transparent polycarbonate housing with nickel-plated phosphor bronze pins
- IP20 non-waterproof rating for indoor installation from -10 to 45 C
- UL file number E536464, packaged five pieces per bag
At a glance
- LED Chip Type
- COB
- LED Lifetime
- 50,000 h
- Operating Voltage
- 24 V
- Maximum Current
- 3.5 A
- Input Connection Type
- Strip to power, 3-pin
- Wire Gauge
- 22 AWG
- UL Listed
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Cove and perimeter lighting runs
- Retail display casework
- Under-cabinet millwork
- Architectural signage cabinets
- Commercial interior accent lighting

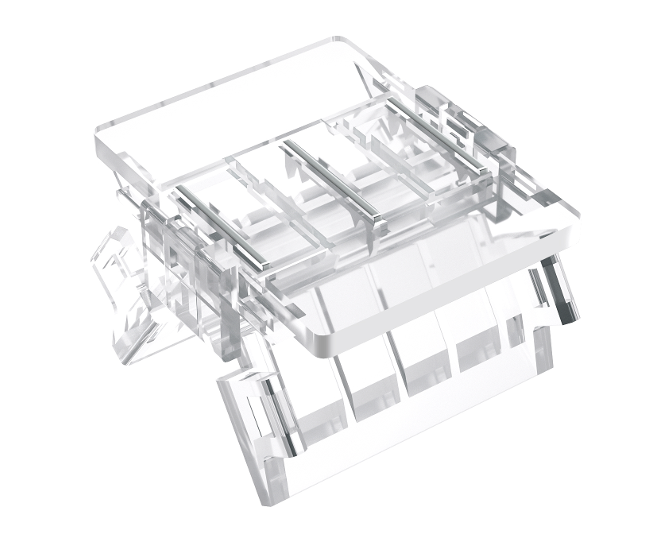

Strip-to-power connector for 10 mm wide three-pin COB LED tape, used to terminate a tape run to a driver or power feed without soldering. The I-shape straight body accepts PCB thicknesses of 0.25 to 0.35 mm and imposes no LED density limit, making it suitable for tunable-white and CCT COB installations in coves, casework and display millwork. The connector carries up to 3.5 A per pin across a 5-24 V DC range and terminates in a 150 mm flat multi-stranded 22 AWG PVC lead in red, white and yellow. Housing is transparent polycarbonate with nickel-plated phosphor bronze contacts, rated IP20 and non-waterproof for indoor service between -10 and 45 C. UL recognized under file number E536464. Supplied five pieces per bag with a one-year warranty.
| Optical | |
|---|---|
| LED Chip Type | COB |
| LED Lifetime | 50,000 h |
| Mechanical | |
| Product Dimensions | 16.5*11.7*4.3 mm |
| Strip Width | 10 mm(0.39 in) |
| Finish | Nickel plating |
| Material | Polycarbonate housing, phosphor bronze contacts |
| Compliance | |
| Certifications | UL |
| UL File Number | E536464 |
| Electrical | |
|---|---|
| Operating Voltage | 24 V |
| Maximum Current | 3.5 A |
| Input Connection Type | Strip to power, 3-pin |
| Wire Gauge | 22 AWG |
| Wire Length | 5.9 in |
| Environmental | |
| IP rating | IP20 |
| Environmental Rating | Non-Waterproof |
| Ambient Operating Temperature | -10–45 °C(14–113 °F) |
| Ordering | |
| Warranty | 1 y |
Full manufacturer specifications, dimensions and wiring detail.
