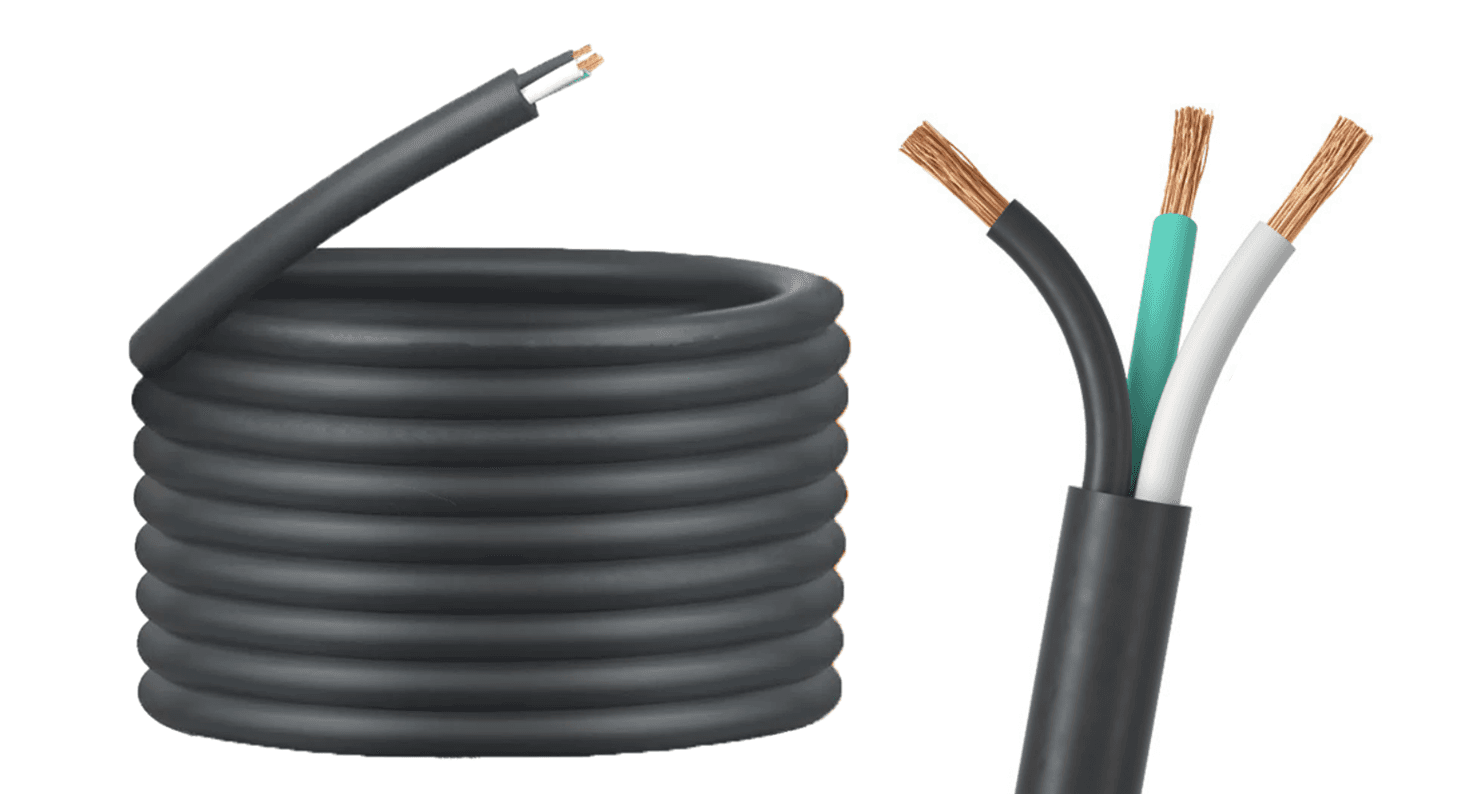

SJOOW Portable Cord, 12 AWG 3-Conductor, 300 V, 105 C Rubber Jacket, 30 m Roll, UL Listed

CA3J-12-30

SJOOW Portable Cord, 12 AWG 3-Conductor, 300 V, 105 C Rubber Jacket, 30 m Roll, UL Listed

Price on requestThis item is normally supplied with its matching profile. Ask us and we will quote it for your project.
Out of Stock
  • 12 AWG three-conductor cord with 47/0.3 stranded copper
  • 300 V rating verified by 2000 V one-minute withstand test
  • Rubber jacket with cotton yarn filling rated to 105 C
  • Finished outer diameter of 11.2 +/-0.2 mm
  • Conductor resistance held to 5.5 ohm/km or less
  • UL Listed and tested to VW-1/FT1 flame requirements

At a glance

LED Lifetime
50,000 h
Operating Voltage
300 V
Wire Gauge
12 AWG
Product Dimensions
11.2 +/-0.2 mm outer diameter
Length
30 m
Finish
Black
Datasheet (PDF)
  • UL Listed
  • Free shipping on orders over $300
  • Same-day pickup in Doral
  • Ships from Miami, FL
  • Manufacturer warranty included

Typical applications

  • Portable equipment and machine cord sets
  • Temporary construction power drops
  • Stage, studio and event power distribution
  • Industrial tool and motor feeds
  • Fixture and sign whip assemblies

SJOOW 12 AWG/3C portable power cord supplied on 30 m rolls for equipment cord sets, machine feeds and temporary power drops. The black rubber jacket with cotton yarn filling covers three color-coded conductors in black, white and green. The cord is rated 300 V at 105 C, with a finished outer diameter of 11.2 +/-0.2 mm and 47/0.3 stranded copper conductors. Conductor resistance is held to 5.5 ohm/km or less, and the assembly withstands 2000 V for one minute without breakdown or flashover. Jacket tensile strength is not less than 10.3 MPa with elongation at break not less than 200 percent. The cord is UL Listed and passes VW-1/FT1 flame testing.
