B-F1-CF01-WL

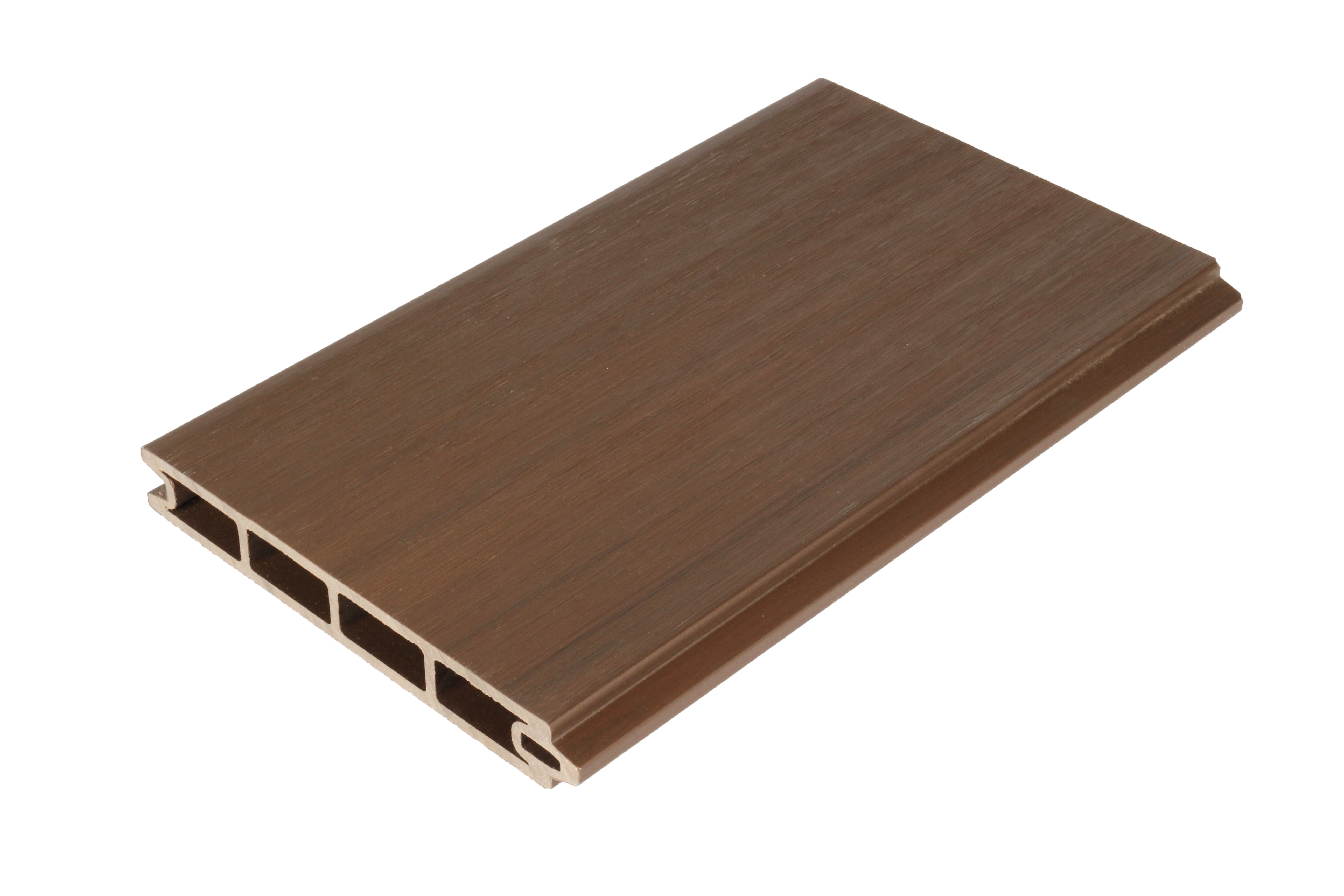

Composite Fence Panel, Co-Extruded WPC, 1760 x 180 x 25 mm, Walnut Finish
Ordered by 5 customers in the last 24 months
- Co-extruded polymer cap bonded to recycled plastic and wood fiber core
- Walnut 3D wood grain texture, one of six factory colorways
- Panel size 1760 x 180 x 25 mm for 1800 mm bay assemblies
- Waterproof with UV protection and a 25-year rated life
- 5.82 lb per panel for single-operator stacking between posts
- 10-year warranty on the composite panel
At a glance
- Product Dimensions
Typical applications
- Residential and commercial perimeter fencing
- Courtyard and patio privacy screening
- Pool and amenity area enclosures
- Trash enclosure and equipment screening
- Multifamily property boundary walls
A co-extruded wood plastic composite (WPC) fence panel in the Walnut colorway, sized 1760 x 180 x 25 mm for infill between aluminum posts and top and bottom rails. It suits privacy, mid-trellis and full-trellis fence assemblies on 1800 mm x 1800 mm bays for perimeter screening, courtyards and property boundaries. The panel pairs a high-density recycled plastic and wood fiber core with a bonded polymer cap layer, finished with a 3D wood grain texture. It is rated waterproof with UV protection and carries a 25-year rated life. Unit weight is 5.82 lb, allowing single-handed panel placement during stacking. Installation uses aluminum L-fix brackets with M4 x 16 mm screws, with a 4 mm gap maintained between post and panel. Backed by a 10-year warranty.
| Mechanical | |
|---|---|
| Product Dimensions | 10x80mm |
| Finish | Walnut, 3D wood grain texture |
| Material | WPC (Wood Composite Polymer) with co-extruded polymer cap |
| Weight | 5.82 lb |
| Environmental | |
|---|---|
| Environmental Rating | Waterproof, UV protection |
| Ordering | |
| Warranty | 10 y |
Full manufacturer specifications, dimensions and wiring detail.
