A-BL5.75-R9W
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
Ordered by 41 customers in the last 24 months

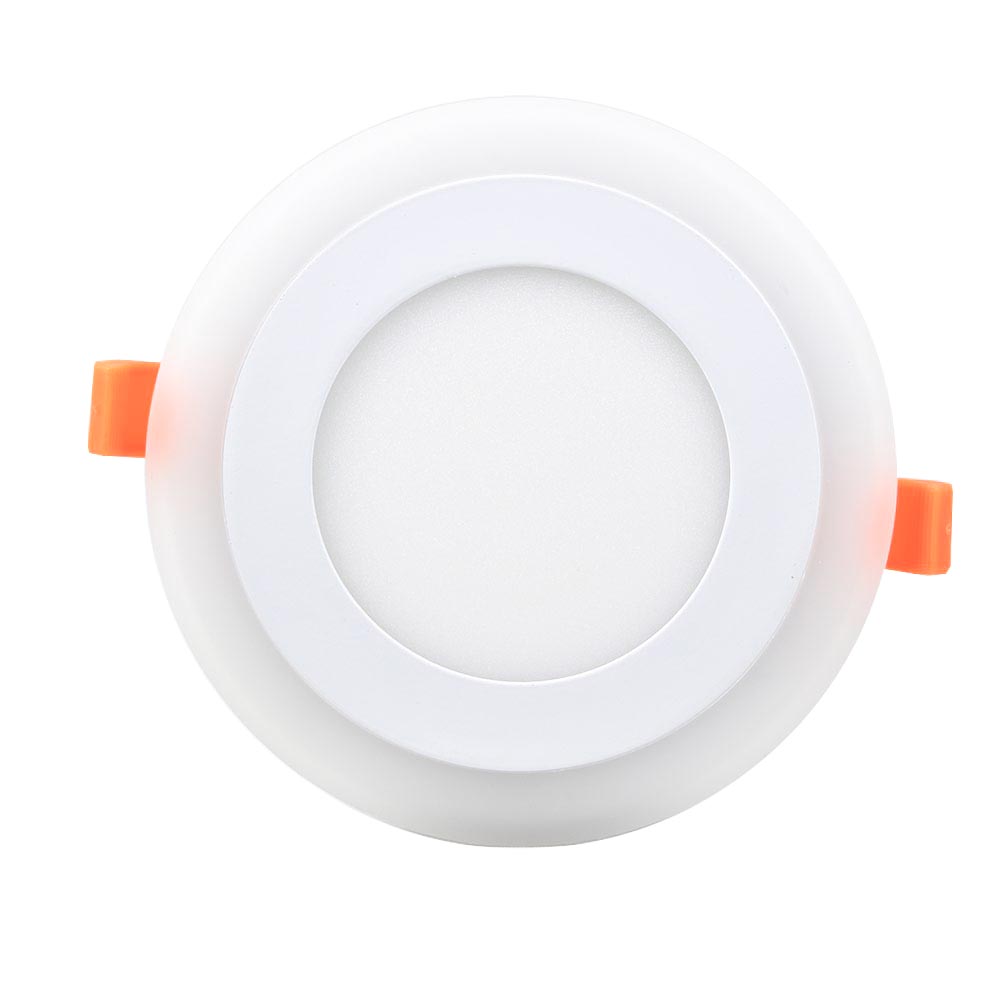

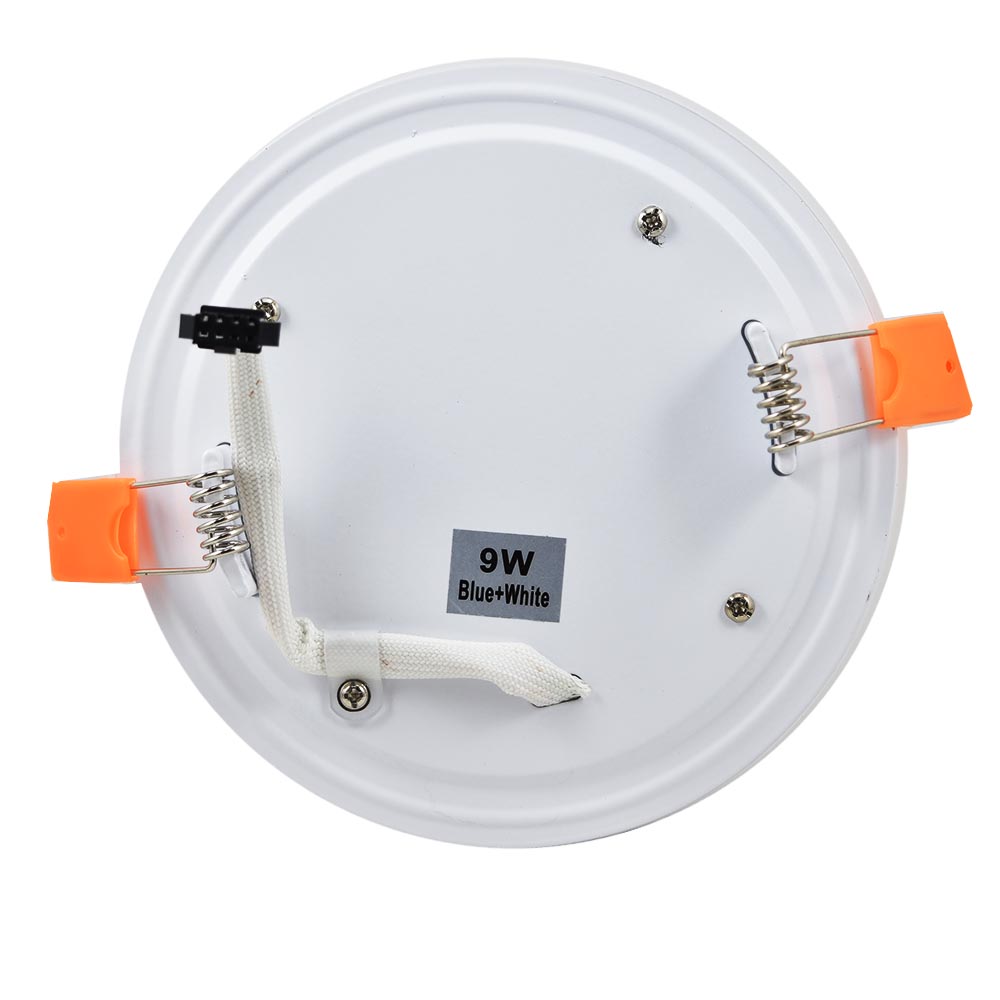

The A-BL5.75-R9W is a round recessed LED ceiling light designed for general illumination in commercial and residential applications. It features a primary white light source with a blue accent border, suited to spaces where functional lighting and visual interest are both priorities. The fixture operates at 9W total and delivers 675 lumens with a color temperature of 4500K and a CRI of 75, yielding an efficacy of 75 lm/W. It is constructed with an acrylic lens and aluminum housing, rated IP20 for dry indoor environments, and accepts input voltage from 120-240V AC. The SMD2835 chip configuration is rated for 50,000 hours of service life, and the fixture carries a 2-year warranty.
| Optical | |
|---|---|
| Luminous flux | 675 lm |
| Efficacy | 75 lm/W |
| CCT | 4,500 K |
| CRI | 75 |
| Beam angle | 110° |
| LED Chip Type | SMD2835 |
| LED Lifetime | 50,000 h |
| Environmental | |
| IP rating | IP20 |
| Ambient Operating Temperature | -30–50 °C(-22–122 °F) |
| Electrical | |
|---|---|
| Operating Voltage | 120–240 V |
| Wattage | 9 W |
| Mechanical | |
| Product Dimensions | 6.5 × 2 × 6.25 ft |
| Finish | White |
| Material | acrylic+aluminum |
| Weight | 0.2 lb |
| Ordering | |
| Warranty | 2 y |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetNo reviews yet. Be the first to review this product.
