8-T8x2-4-36-5K
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
Ordered by 183 customers in the last 24 months

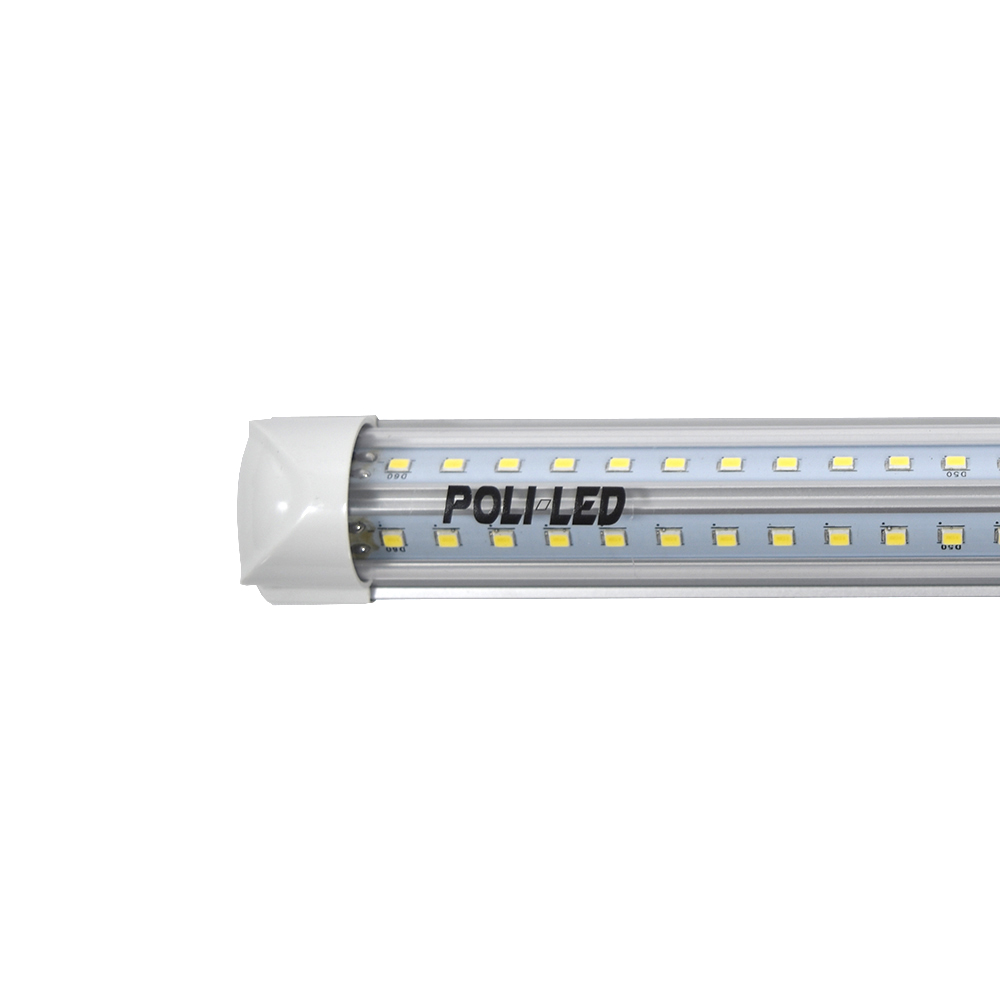

The 8-T8x2-4-36-5K is a 4-foot integrated LED tube light featuring a 270° V-shape design with a built-in SMD2835 driver and aluminum heat sink. Intended for surface-mounted applications in commercial and industrial environments including warehouses, offices, retail spaces, hospitals, and schools, it replaces conventional fluorescent T8 fixtures without requiring a separate driver or ballast. Rated at 36W with an input range of AC100–277V, this tube delivers 4,680 lumens at 5000K CCT and 130 lm/W efficacy. CRI is 80. Power factor exceeds 0.95 and THD is 20% or below. The aluminum housing supports a rated lifespan of 50,000 hours and is suitable for operating temperatures from -4°F to 113°F (-20°C to 45°C). The V-shape PC cover provides wide-angle illumination across a 270° beam. The fixture is ETL Listed and RoHS compliant. It contains no mercury, supporting responsible disposal and environmental compliance. A 5-year/30-day limited warranty applies per manufacturer terms; confirm applicable tier at time of purchase.
| Optical | |
|---|---|
| Luminous flux | 4,680 lm |
| CCT | 5,000 K |
| CRI | 80 |
| Beam angle | 270° |
| LED Lifetime | 50,000 hr |
| Ordering | |
| Warranty | 30 days |
| Electrical | |
|---|---|
| Operating Voltage | AC 100–277V |
| Wattage | 36 W |
| Mechanical | |
| Product Dimensions | 47.44 x 1.38 x 1.30 |
| Environmental | |
| Ambient Operating Temperature | -20 to 45 |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetNo reviews yet. Be the first to review this product.
