7-RSL40-12V-27W

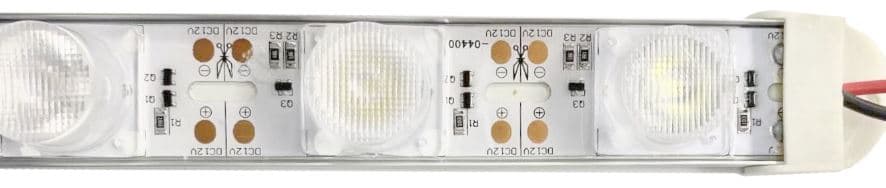

40 in. LED Light Bar, 12V DC, 27W, 8000K, 10×30° Beam Angle
- 12V
- 27W
Ordered by 12 customers in the last 24 months
- 40 in. long light bar with 1 in. width and 1 in. height profile
- Operates on 12V DC, drawing 27W of power
- Delivers 3,240 lumens at 8000K color temperature
- Uses SMD3030 LED chips across 18 LEDs per bar
- Adjustable 10×30° beam angle for focused light placement
- Rated for 50,000 hours of LED lifetime
At a glance
- Color Temperature
- 8,000 K
- Efficacy
- 120 lm/W
- Beam Angle
- 30°
- Luminous Flux
- 3,240 lm
- LED Chip Type
- SMD3030
- LEDs per Segment
- 18
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Signage backlighting
- Commercial display lighting
- Industrial task lighting
- Outdoor accent lighting
- Cabinet and shelf lighting
The 7-RSL40-12V-27W is a 40 in. LED light bar designed for high-output supplemental lighting in commercial, industrial, and outdoor applications. Its low-profile construction supports installation in a range of environments where a compact, rigid light source is required. The fixture operates on 12V DC and draws 27W, delivering 3,240 lumens at an 8000K color temperature for a crisp, cool white output. SMD3030 LEDs provide the light source, with an adjustable 10×30° beam angle allowing for focused light placement suited to task or accent lighting needs. Rated LED lifetime is 50,000 hours. The product is backed by a 1-year warranty.
| Optical | |
|---|---|
| Luminous flux | 3,240 lm |
| Efficacy | 120 lm/W |
| CCT | 8,000 K |
| Beam angle | 30° |
| LED Chip Type | SMD3030 |
| LEDs per Segment | 18 |
| LED Lifetime | 50,000 h |
| Electrical | |
|---|---|
| Operating Voltage | 12 V |
| Wattage | 27 W |
| Mechanical | |
| Product Dimensions | 41 × 1 × 1 in |
| Weight | 0.6 lb |
| Ordering | |
| Warranty | 1 y |
Full manufacturer specifications, dimensions and wiring detail.
