5-LW3535-H
Surface & Hanging Mount Aluminum LED Channel Profile, 35×35mm, 6063-T5 Anodized
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
Ordered by 49 customers in the last 24 months
- Extruded 6063-T5 aluminum body with anodized surface treatment
- 35×35mm cross section with 26mm maximum LED strip width
- Milky PC diffuser rated at 86% light transmission
- Push-in diffuser assembly requires no additional fasteners
- Working temperature range of -50°C to 100°C
Typical applications
- Retail display and shelving illumination
- Suspended linear lighting in offices
- Architectural cove and perimeter runs
- Signage and lightbox fabrication
- Industrial workstation task lighting

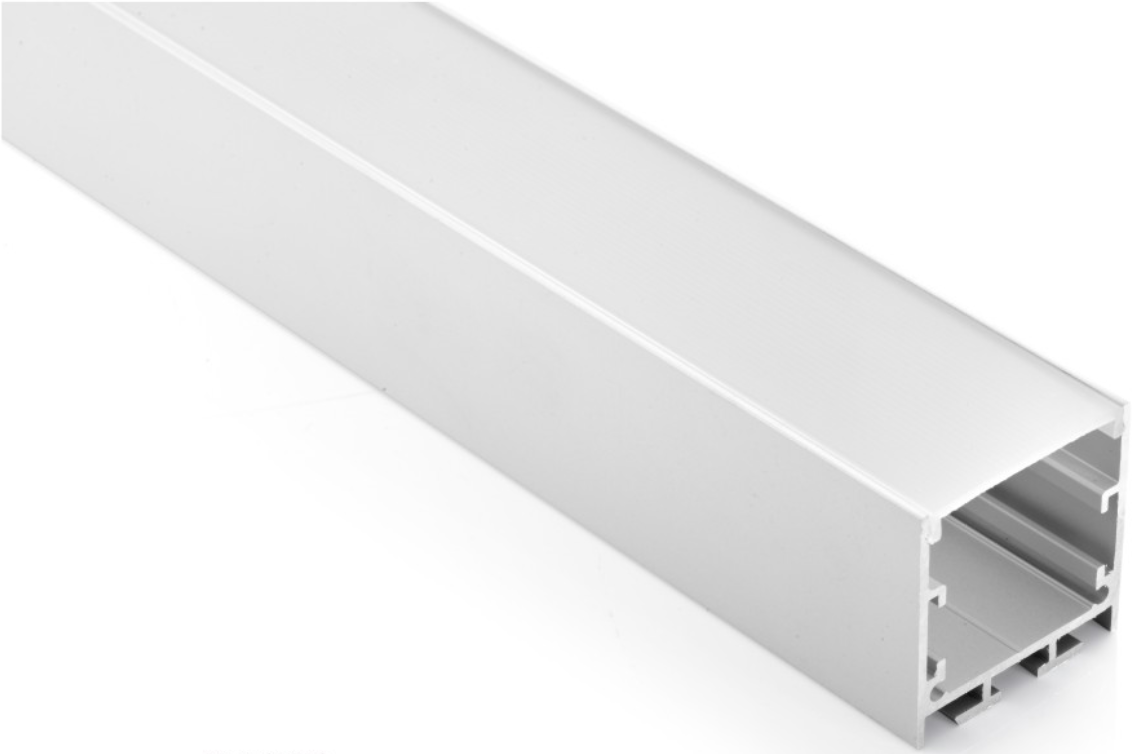

The 5-LW3535-H is a 35×35mm aluminum LED channel profile for surface-mounted or suspended installation of LED flexible strip lighting. Extruded from 6063-T5 aluminum with an anodized surface treatment, it serves as both a heat sink and physical protection for strips up to 26mm in width. Finish options include white painted, silver anodized, and black anodized, with available lengths of 1m, 2m, 2.5m, 3m, and 4m. The profile is supplied with a milky PC diffuser that transmits 86% of the light output at medium coefficient diffusion, producing uniform brightness and reducing visible LED hot spots. The diffuser installs by push-in assembly and is also offered in transparent and black. Working temperature range is -50°C to 100°C. Covered by a 1-year warranty.
| Mechanical | |
|---|---|
| Product Dimensions | 35x35mm |
| Strip Width | 26 mm(1.02 in) |
| Finish | Anodized silver, black anodized, or white painted |
| Material | 6063-T5 aluminum |
| Mounting | Surface or hanging |
| Environmental | |
|---|---|
| Ambient Operating Temperature | -50 °C(-58 °F) |
| Ordering | |
| Warranty | 1 y |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetCustomer reviews
No reviews yet. Be the first to review this product.
