1-WL-24V-W-40

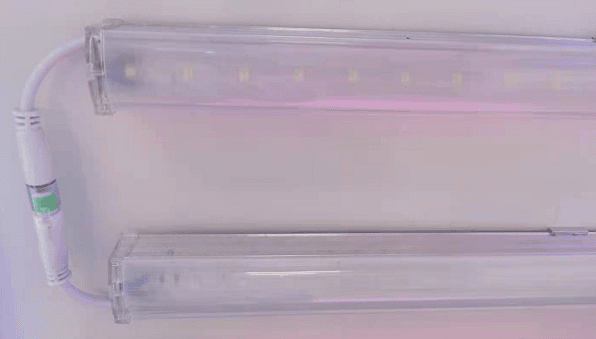

24V Window Light Wall Washer, 12W, 6500K, 40in Length, IP68
Select an option
- 24V
- 12W
- IP68
- Operates on 24VDC input for low-voltage outdoor circuits
- Consumes 12W of power per 40-inch fixture length
- SMD4040 LED chip delivers 6500K white color temperature
- IP68 environmental rating for wet and dusty outdoor locations
- Rated for 50,000 hours of LED operating life
- 1-year manufacturer warranty included
At a glance
- Color Temperature
- 6,500 K
- LED Chip Type
- SMD4040
- LED Lifetime
- 50,000 h
- Operating Voltage
- 24 V
- Wattage
- 12 W
- Length
- 1.02 m
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Building facade wall washing
- Architectural accent lighting
- Outdoor signage illumination
- Commercial exterior perimeter lighting
The 24V Window Light Wall Washer is an outdoor commercial fixture designed for wall washing applications, delivering uniform illumination across building facades, signage and architectural surfaces. Its 40-inch housing integrates an SMD4040 LED chip for consistent light distribution. The fixture operates on 24VDC and draws 12W of power, producing a 6500K white light output. It carries an IP68 environmental rating, suited for exposure to dust, water and harsh outdoor conditions, with a rated LED lifetime of 50,000 hours. The unit is backed by a 1-year warranty.
| Optical | |
|---|---|
| CCT | 6,500 K |
| LED Chip Type | SMD4040 |
| LED Lifetime | 50,000 h |
| Environmental | |
| IP rating | IP68 |
| Electrical | |
|---|---|
| Operating Voltage | 24 V |
| Wattage | 12 W |
| Mechanical | |
| Length | 1.02 m(3.3 ft) |
| Ordering | |
| Warranty | 1 y |
Full manufacturer specifications, dimensions and wiring detail.
