Top-Bend Neon Flex, 12×12mm, SMD2835, 3000K, 8W/m, IP65, 5m Reel

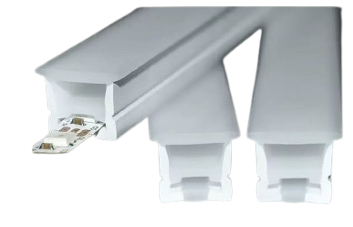

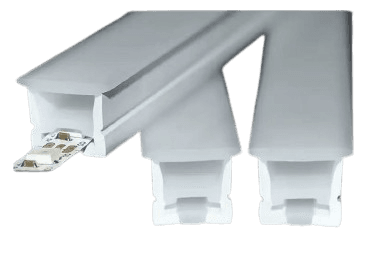

The M-N12-TB-3K-FC is a 12×12mm top-bend neon flex strip in a food-grade silicone jacket, intended for architectural accent lighting, signage backlighting, cove runs and contour illumination where a continuous lit line is required. SMD2835 emitters are placed at 120 chips per meter on a double-layer PCB, drawing 8W and 0.33A per meter at an efficacy of 25 lm/W. Output is 3000K at CRI above 80 with a 120° emitting angle. The strip ships on 5m reels and is cuttable at every LED, an 8.33mm interval. The IP65 silicone extrusion resists saline solutions, acids, alkalis, corrosive gases and UV. Operating range is -20°C to +45°C at 40-70% RH; minimum bending diameter is 300mm and twist must stay below 360° per meter. Connections require conductors of at least 0.75 mm². Assembled with lead-free SMT processes and RoHS compliant, with a one-year warranty and 5,000-hour rated LED life.
