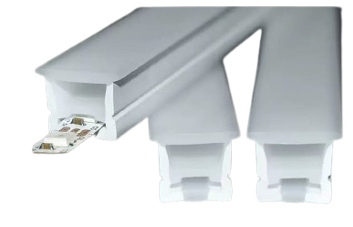

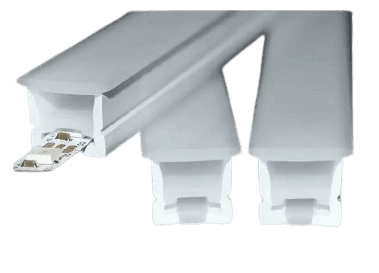

Top Bend Neon Flex Strip, 10x10mm, SMD2835 120 LEDs/m, 3000K, 8W/m, IP65

The M-N10-TB-3K-FC is a 10x10mm top-bend neon flex strip used for architectural accent lighting, channel letter outlining, cove details and decorative signage. It operates on DC24V with SMD2835 emitters at 120 LEDs/m and ships in 5 m rolls with a minimum cut length of 8.33mm at one-LED intervals. Output is 3000K across a 120 degree beam angle, with CRI above 80 and an efficacy of 25 lm/W at a load of 8W/m and 0.33A/m. The food-grade silicone jacket carries an IP65 rating with resistance to saline solutions, acids, alkalis, corrosive gases and UV. Minimum bend diameter is 300mm, twist must remain below 360 degrees per meter, and the operating range is -20 to +45 degrees C at 40-70% RH. Construction uses lead-free RoHS SMT processes over a double-layer PCB, and the product carries a 1-year warranty. Electrical connections must be made by a qualified person.
