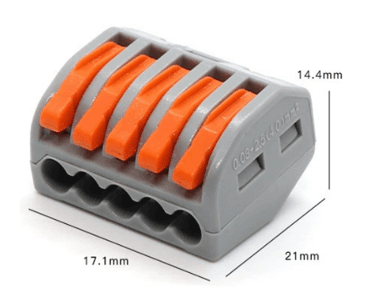

Conector de presión de 1-5 puertos, 250V, 32A, Entrada: 24AWG - 10AWG (0.08 - 4mm2) Salida: 28AWG - 12AWG (0.08 - 4mm2)

Name: Conector de presión de 1-5 puertos, 250V, 32A, Entrada: 24AWG - 10AWG (0.08 - 4mm2) Salida: 28AWG - 12AWG (0.08 - 4mm2)
Brand: PoliLED
SKU: E-CON-P-15
Price: 4.72 USD
Availability: InStock

USD 4.72

Disponible — 485 disponibles

Pedido por 2 clientes en los últimos 24 meses

Rated 250 V and 32 A for line-voltage branch and fixture wiring
Push-in spring termination seats conductors without tools
Polycarbonate housing in grey with nickel-chromium alloy steel spring
Soft wire acceptance from 24 AWG to 10 AWG (0.08–4 mm²)
Hard wire acceptance from 24 AWG to 12 AWG (0.08–4 mm²)
Operating range of -40 °C to +105 °C, 8–12 mm strip length

De un vistazo

LED Lifetime: 50,000 h
Operating Voltage: 250 V
Maximum Current: 32 A
Wire Gauge: 28 AWG
Finish: Grey
Material: Polycarbonate housing, nickel-chromium alloy steel spring

Ficha técnica (PDF)

Envío gratis en pedidos de más de $300
Retiro el mismo día en Doral
Envíos desde Miami, FL
Garantía del fabricante incluida

¿Necesita precio por volumen? Consultar mayoreo

Aplicaciones típicas

Luminaire and fixture wiring
Junction box splices
Lighting retrofit terminations
Control panel and enclosure wiring
Sign cabinet wiring

The 1–5 port press-on wire connector provides tool-free conductor terminations in commercial and industrial wiring. The push-in spring mechanism accepts both soft and hard wire, making it suitable for fixture wiring, junction work, and panel terminations where reliable conductor retention is required. The connector is rated for 250 V and 32 A. Soft wire acceptance ranges from 24 AWG to 10 AWG (0.08–4 mm²); hard wire from 24 AWG to 12 AWG (0.08–4 mm²). The housing is polycarbonate and the spring contact is nickel-chromium alloy steel, with an operating range of -40 °C to +105 °C. Recommended strip length is 8–12 mm.
