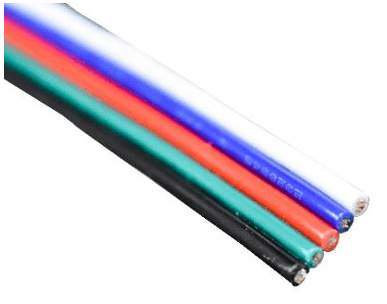

CA5-20-50
RGBW Flat Cable, 20 AWG Tinned Copper, UL2468, 300V, 80°C, 50 ft Roll
- 20 AWG conductor built from 21 strands of 0.178 mm tinned copper
- 300V rating with 2000V AC per minute dielectric withstand test
- PVC insulation rated to 80°C and compliant with RoHS 1.0
- Conductor resistance of 36.7 Ω/km at 20°C
- Flat profile measuring 1.8 mm by 3.6 mm finished cross section
- 50 ft (15.5 m) per roll for RGB, positive and negative runs
- Retiro el mismo día en Doral
- Envíos desde Miami, FL
- Garantía del fabricante incluida
This 5-conductor RGBW flat cable is sold in 50 ft (15.5 m) rolls and is intended for indoor LED lighting installations requiring RGB plus positive and negative connections. The flat ribbon construction and 20 AWG tinned stranded copper conductors suit low-voltage LED strip wiring and similar commercial or residential lighting work. The cable is rated at 300V and 80°C, with a conductor resistance of 36.7 Ω/km at 20°C in the 20 AWG configuration and a finished cross section of 1.8 mm by 3.6 mm. PVC insulation meets a minimum unaged tensile strength of 10.3 MPa with 100% minimum elongation, and the dielectric withstand rating is 2000V AC per minute. Construction follows the UL2468 series per UL758-2017 and complies with RoHS 1.0 six-substance environmental requirements. Covered by a one-year warranty.
